Potter PFC-6200 - Municipal Box Connection; Relay Output Wiring

3-28

Municipal Box Connection



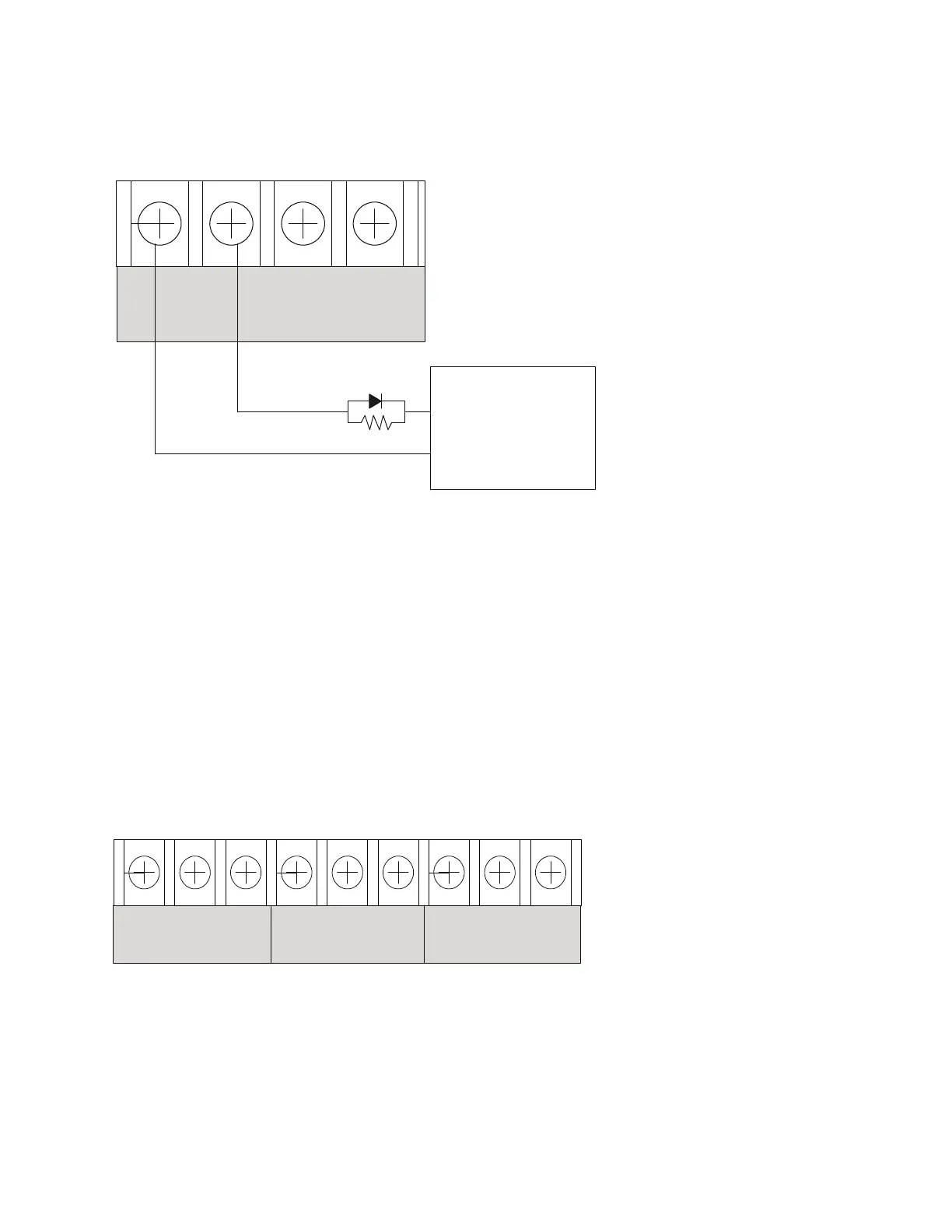

Municipal Box Wiring ExampleFigure 26.
Notes:
I/O circuits and/or NAC Circuits can be used as Municipal
Box connection .
The EOL device shall be installed in the same electrical enclosure as the Municipal Box.
Panel
Connection
I/O 1 I/O 2
- + - +
Municipal
Box
+
-
End of line device
5.1k ohm 1/2W
Part #3005012
Notes:
1.
2.
3.

Relay Output Wiring


non-power limited
not supervised.
Note
Relay OutputsFigure 27.
TROUBLE
NC COM NO
SUPERVISORY
NC COM NO
ALARM
NC COM NO
DWG #602-9A
DWG #593-26
