4.4 Control panel description
4.4.1 Description of the control panel
1 Display
2 Reset button
3 Central heating temperature control
4 Service diagnostic port
5 System water pressure gauge
Display description
The following symbols may be seen on the display
OFF (frost protection still enabled)
Indicates errors that prevent the burner from starting
Error — not resettable by user
Water pressure too low
R
Indicates a resettable error
Not applicable
Not applicable
Generic error
Burner lit
Heating mode
Units for temperature
Units for pressure
4.5 Standard delivery
4.5.1 Contents of the carton
The boiler is delivered in a carton comprising:
Wall hung gas boiler
Wall bracket for fastening the boiler to the wall
Clipping bracket for running pipes upwards
Fitting kit, including taps
Literature pack containing:
Installation and service manual
User guide manual
Template
Flue accessories fitting guide
Warranty documentations
ErP product and package leaflets
System additives leaflets
Important
These installation and service instructions MUST be read in
conjunction with the flue accessories fitting guide supplied in the
literature pack.

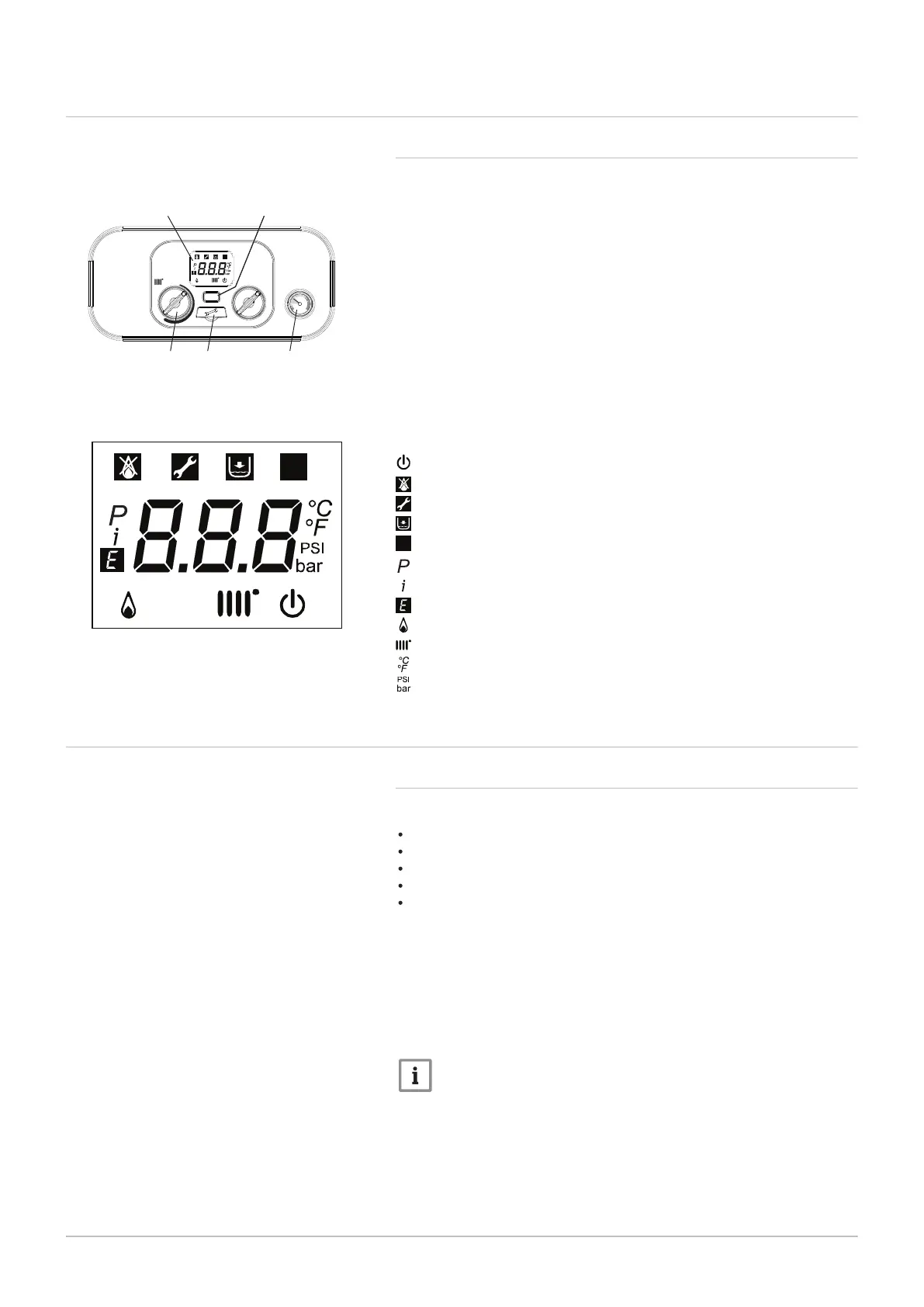

Fig.10 Control panel
R
Reset
bar
0
1
2
3
4
1
2
3 4
5
PN-0000335
M
i
n
M
a
x
Fig.11 Display screen
R
PN-0000337
4 Description of the product
21
