8
Equipment Description
Power/Vac® Metal-Clad Switchgear 5kV & 15kV
01.4IB.67000
Table A Standard Dimensions
Configuration
Continuous Current
Rating (Amperes)
Short-Circuit Rating
(kA)
Height
(inches)
Depth
(inches)
One-High 1200, 2000, 3000 20, 25, 31.5, 40, 50 & 63 95 94
Two-High 1200, 2000 20, 25, 31.5 40,, 50 & 63 95 94
One- High 3500 20, 25, 31.5 40,, 50 & 63 95 106
One-High 4000 Force Cooled 20, 25, 31.5 40,, 50 & 63 106 106

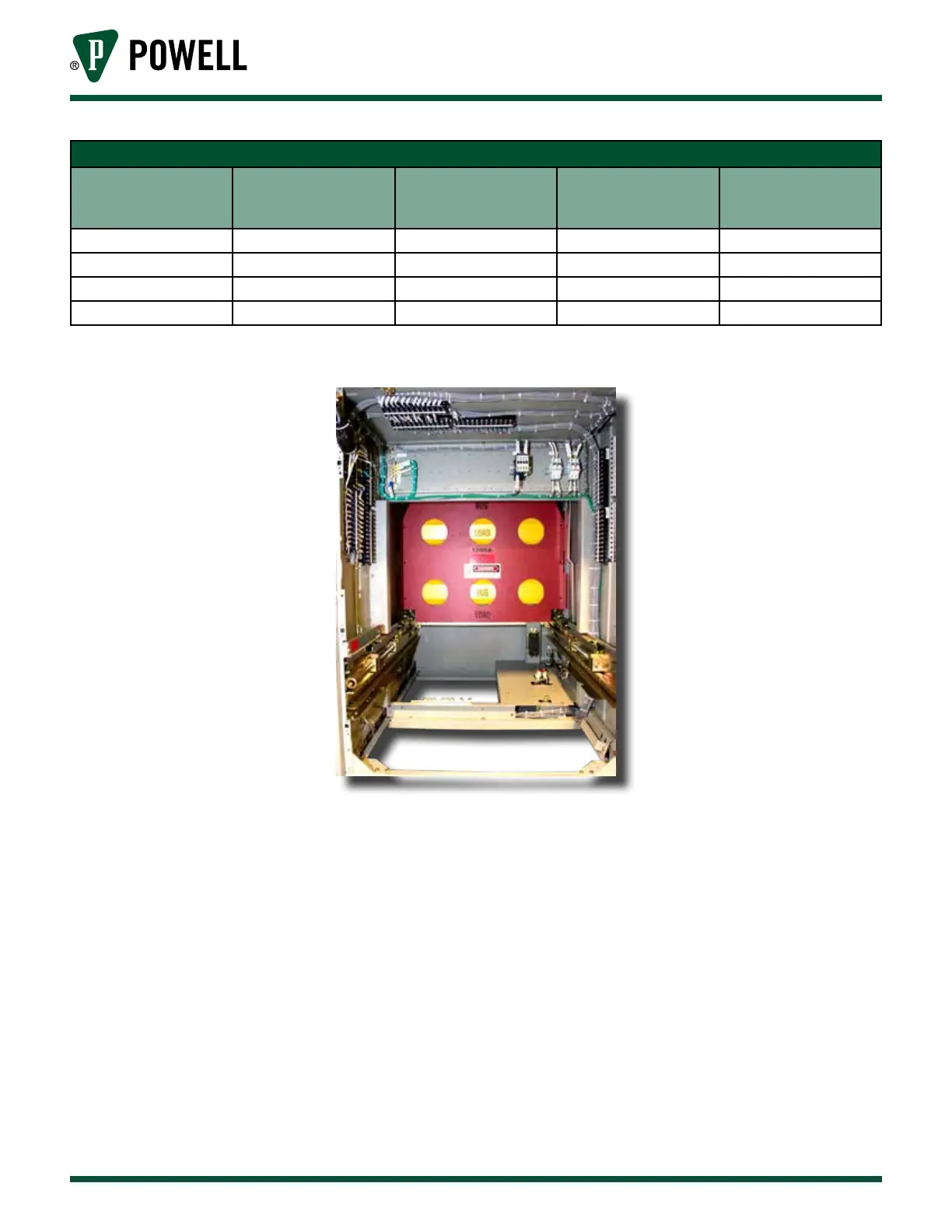

Figure 3 Interior Metal-Clad Switchgear (Lower Compartment)
