Installation

Power/Vac® Metal-Clad Switchgear 5kV & 15kV

01.4IB.67000

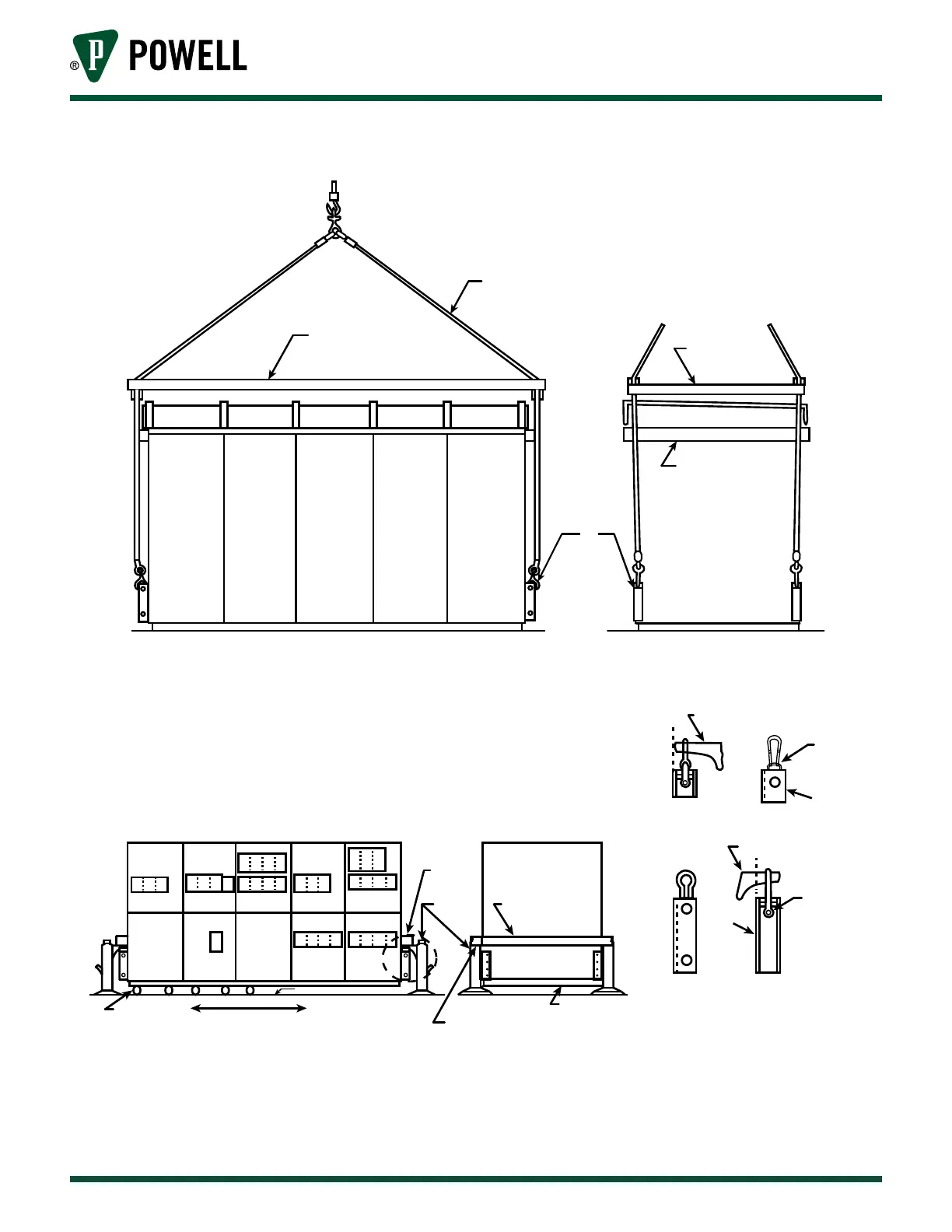

Figure 8 Installation Details for Outdoor Power/Vac® Metal-Clad Switchgear

SPREADER

LIFT-SLING

SPREADER

WOOD - BOTH ENDS

LIFT ANGLE

FRONT VIEW SIDE VIEW

FOR MOVEMENT USE ROLLERS

EACH ROLLER MUST SUPPORT THE FRONT, MIDDLE, & REAR

FLOOR CHANNELS

IN THIS DIRECTION ONLY

FLOOR LINE

CABLE LOOP

LIFT JACK

4 CORNERS

LIFT JACK

LIFTING

ANGLE

CROSS LIFTING

EYE

OPTIONAL METHOD -AA-

JACKING TIMBER

ROLLERS - IF USED

TYPICAL JACKING AREA

LIFT JACKING METHOD

SEE OPTIONAL

METHODS

LIFT JACK

CABLE LOOP

LIFTING EYE

LIFTING

ANGLE

OPTIONAL METHOD -AB-
