Powell Power/Vac - Figure 14 Assembly of Outdoor Switchgear with Protected Aisle - (Cont.)

Powered by Safety
®
29
Installation
01.4IB.67000

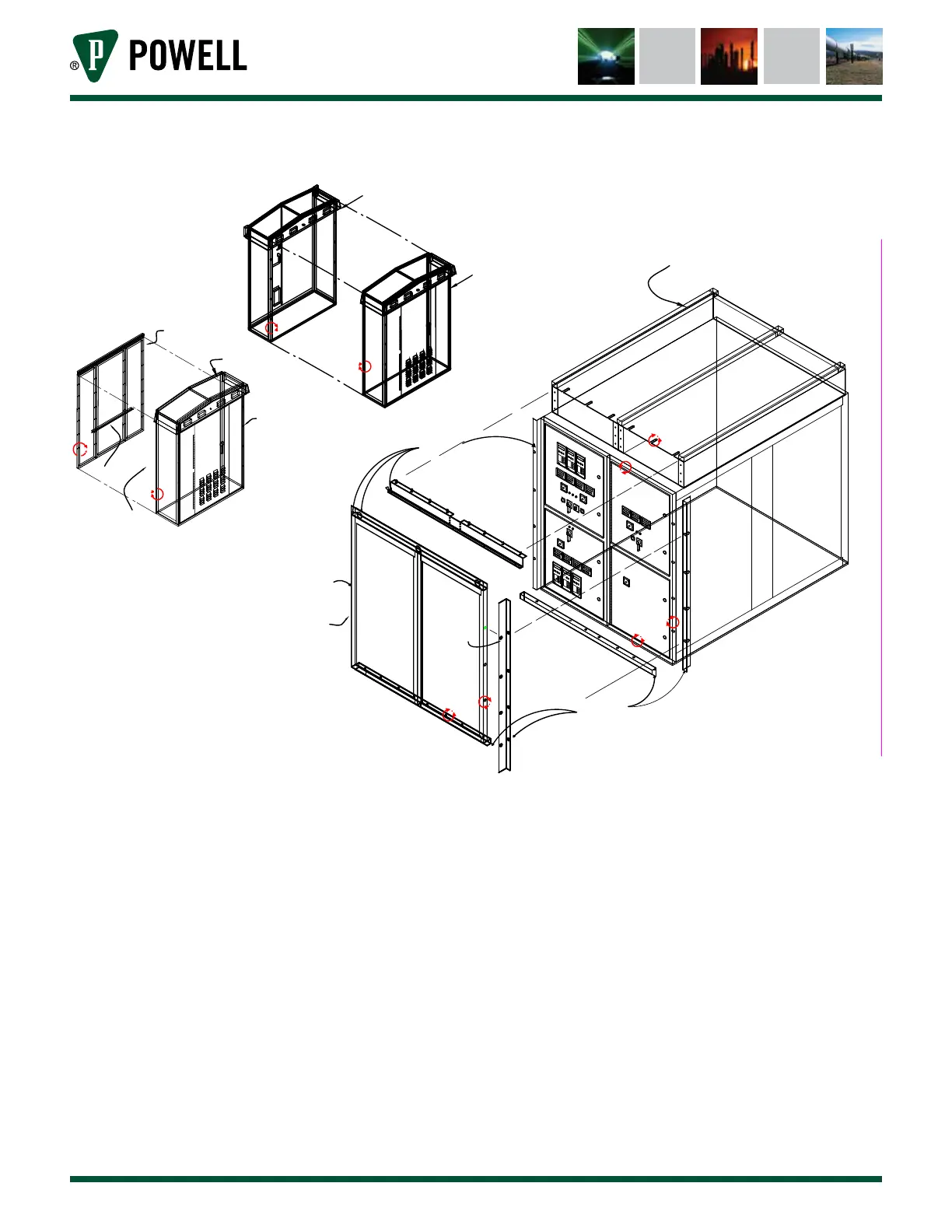

Figure 14 Assembly of Outdoor Switchgear with Protected Aisle - (cont.)
AISLE END
EXTENSION
AISLE END
EXTENSION
END WALL
REUSE 1/4-20 HARDWARE
SHIPPING
SUPPORT
REUSE
PLUG BUTTONS
AISLE END
EXTENSION
*
*
T
W
AISLE WALL
SHIPPING POSITION
SHIPPING COVERS
S
SHIPPING COVERS
METAL CLAD EQUIPMENT
Z
Y
BB
AA
V
X
U
