APPLICATION MANAGEMENT
2.3.2. Big Visualization Menu
This menu shows the values of two parameters of the drive. These parameters are selected by
the user.
This visualization type is a customized visualization, that means, as well as selecting the
parameters to visualize, the user define the text (as parameter or variable name), the unit (units of
measurement for the magnitude represented by the parameter) and a scale factor for each
parameter.
Once tapped on the Big visualization menu, it appears a new screen where the visualization area
is divided in two parts. The upper half area corresponds to the first selected parameter and the
lower half area corresponds to the second selected parameter.

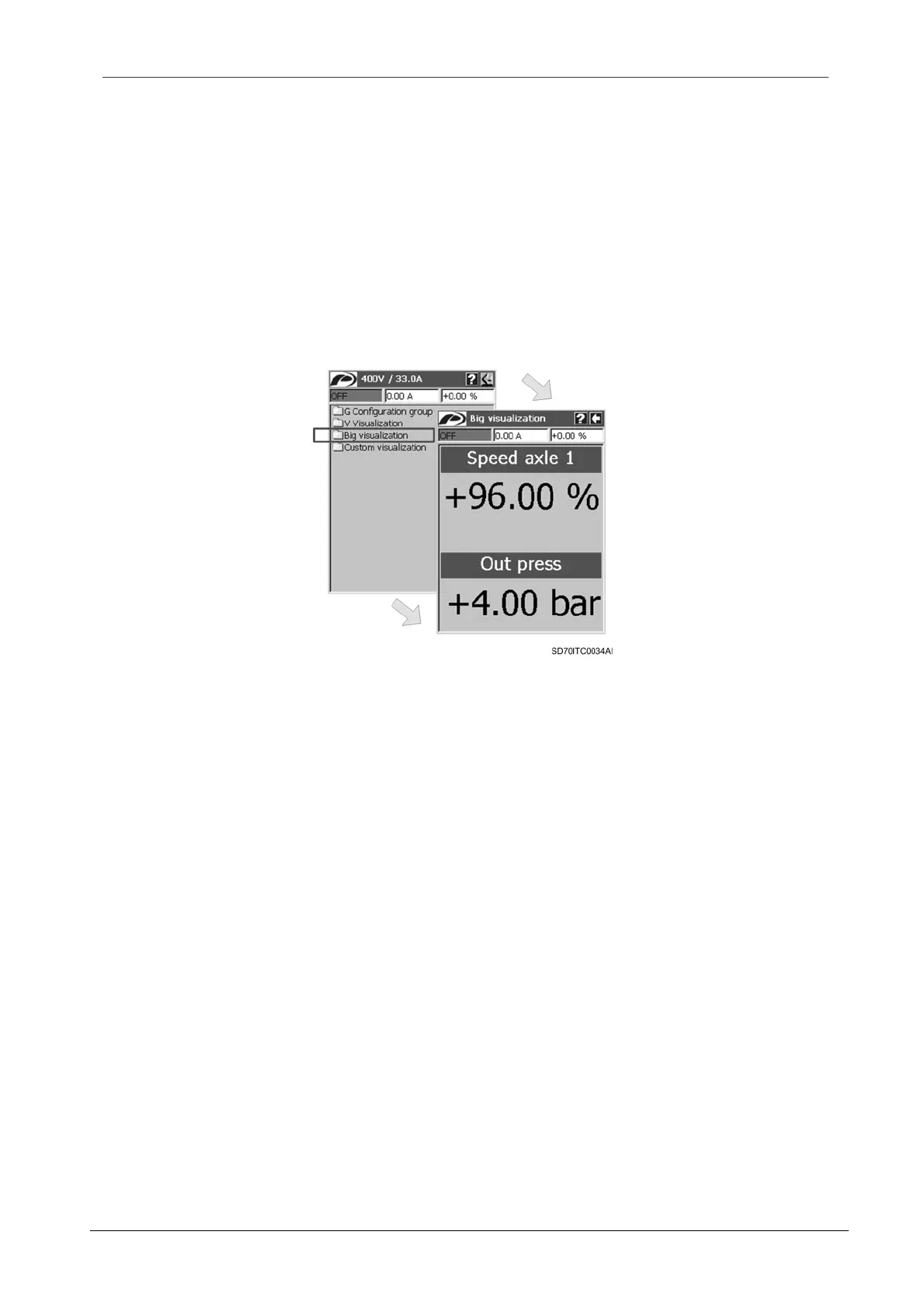

Figure 2.10 Big visualization menu
To edit a parameter, the user should tap on one of the two areas. Depending on the position
where user taps, the first or the second parameter will be edited. After tapping on it, a dialogue
window of parameter configuration will appear with the following fields from top to bottom:
 Customized parameter name:
This field is an edit box. The user should write here the name or the text that he wants to be
shown for this parameter.
 Drive parameter:
This field is a combo box. When the user taps on the ‘▼’ a list box is spread out with all of
the visualization parameters in alphabetical order. The user should select one parameter
from the list by tapping on it. For this, the user can scroll the list up and down in order to look
for the desired parameter. When the user selects a parameter from the list, this one
disappears and the selected parameter is shown in the field as present selection.
 Scale factor:
This field is a numerical edit box. The user can write here a float number. This number is a
multiplicative scale factor. Once the parameter is configured, the value of which is multiplied
by the adjusted scale factor, and the result is the value visualized in the screen. The scale
factor field is only enabled when the value of the selected parameter is numerical value. If the
value is a configuration option, this field is disabled.
