Power Electronics SD700 Series Getting Started Manual

POWER ELECTRONICS
SD700 – TOUCH-GRAPHIC DISPLAY
APPLICATION MANAGEMENT
35
E
NGLISH

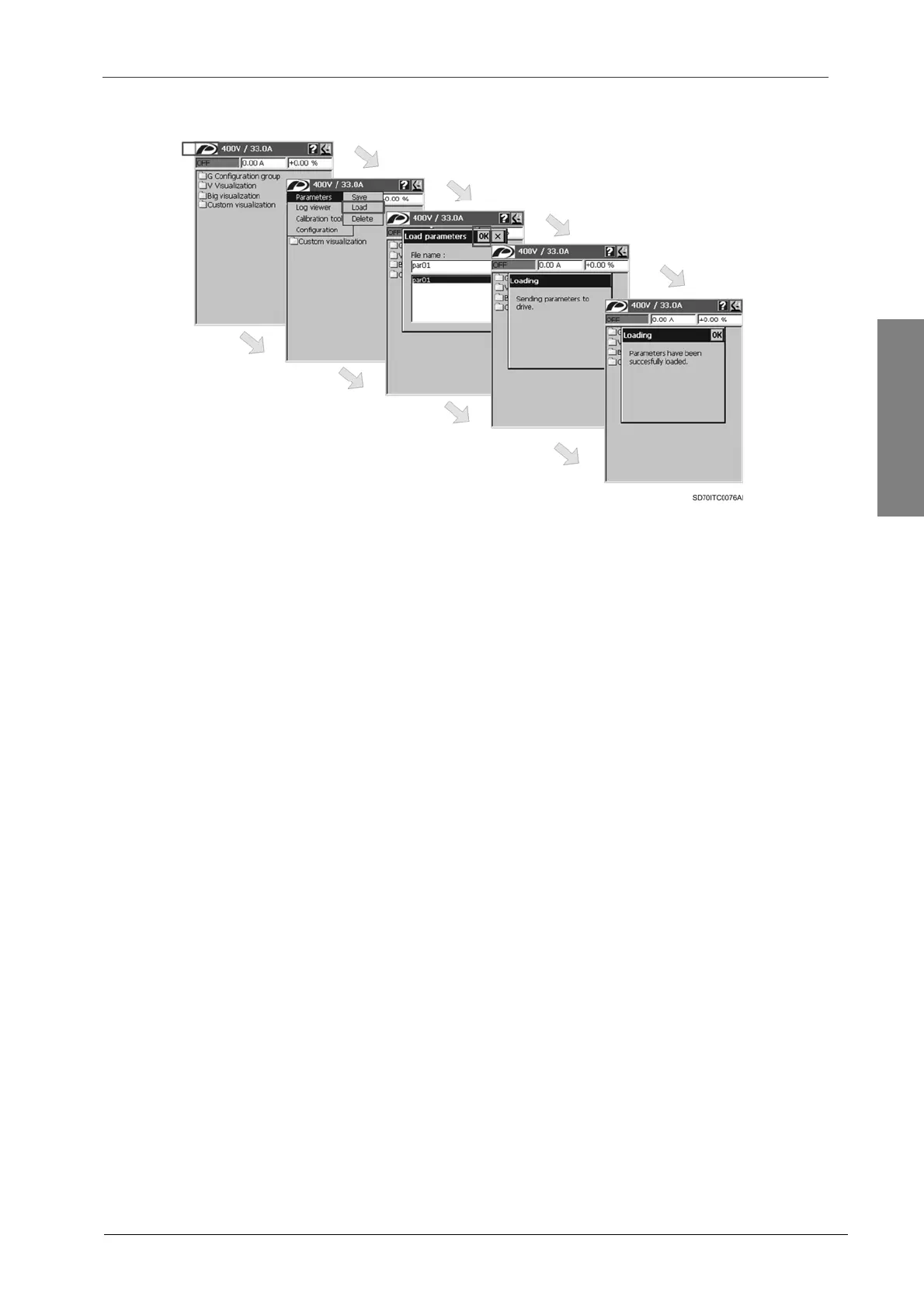

Figure 2.22 Load parameters. Navigation tree
Delete Parameters
With this option the user can delete a saved parameters configuration file from the list.
To delete a parameters configuration file, follow the next steps:
1. Tap on the ‘P’ icon on the title bar. The system menu is opened.
2. Tap on option ‘Parameters’ in the menu. A new menu with three available options will appear.
3. Tap on option ‘Delete’. It will appear the configuration dialogue window for ‘Delete
parameters’. In this dialogue window is observed the next:
o Edit box for the ‘File name’: It is used to write the file name of the saved parameters
configuration file to be deleted.
o List box with the existing files: All of the existing files with different saved drive
configurations are shown in the list.
4. Write the name of the existing configuration file to be deleted in the edit box or select it from
the list box and then, tap on ‘OK’ button.
5. If the written name does not match with the name of some existing file, an error notification
message will appear with the text ‘The file doesn’t exist’. In this case, the user should tap on
‘OK’ button to confirm and go back to the previous dialogue window to write the name of
some existing configuration file or select it from the list box.
6. After tapping on ‘OK’ button to execute the deleting process, a notification message appears
with the text ‘File “<name>” successfully deleted’.
7. Tap on ‘OK’ button on the notification message. The selected configuration file is already
deleted.
