APPLICATION MANAGEMENT

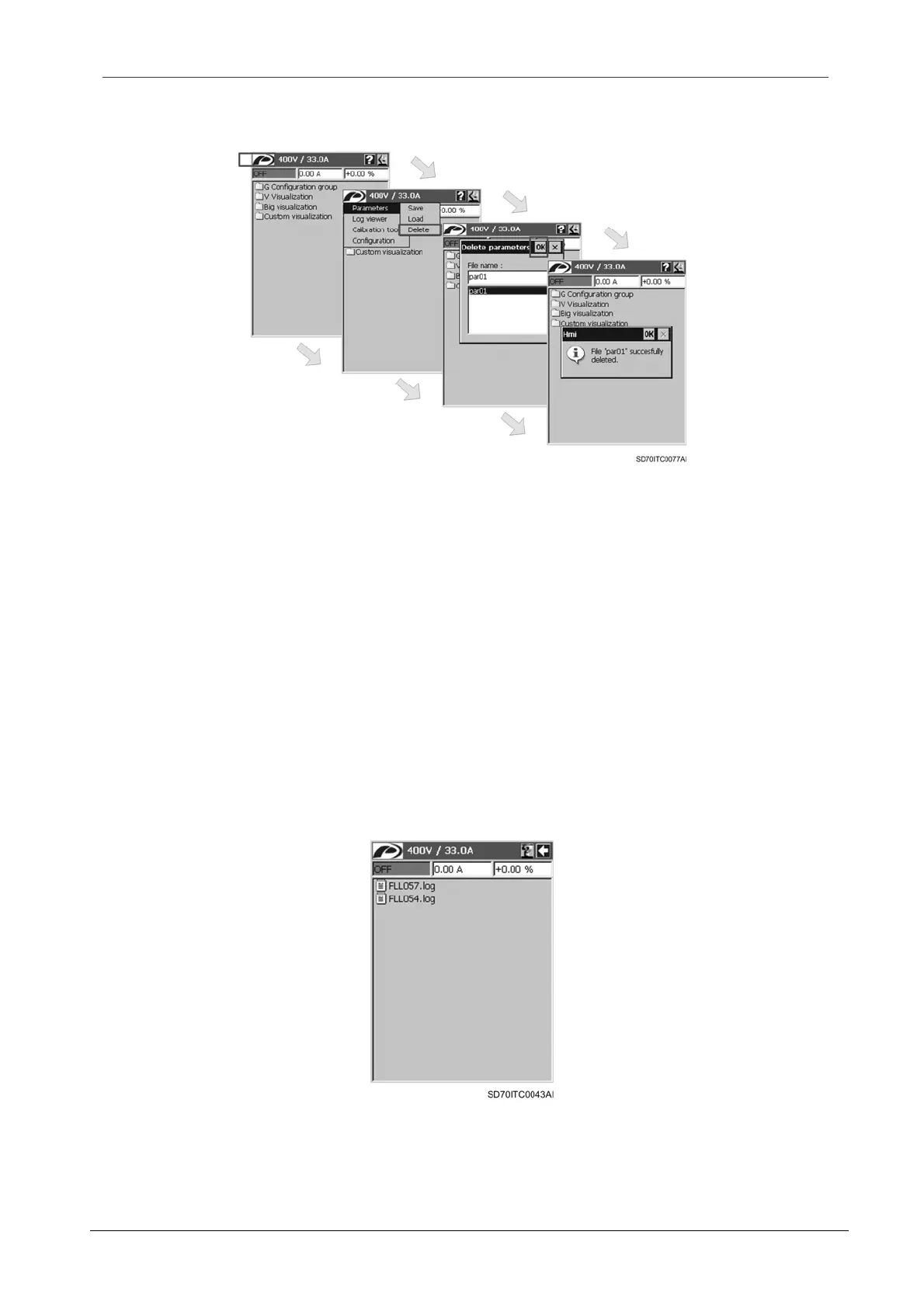

Figure 2.23 Delete parameters. Navigation tree
2.7.2. Fault Registers (Log Viewer)
When a fault occurs in the drive, the values of some parameters are “frozen” while the fault is not
reset. This information is saved in internal files that are the fault registers. Later, these registers
are revised after the system is reset.
This function is a valuable source of information for both the technicians and the final user. In this
way, anyone can know what was happening in the system at the time of the fault.
The graphic display includes two screens, shown in the visualization area, in order to access to
the information stored in the fault registers:
 Main screen for fault registers: It shows the list of available files which are the fault
registers of the system.
Figure 2.24 Main screen for fault registers
