3300 ACM Installation and Operation Manual Power Measurement Ltd.
Installation 2-5
MODEL: 3300 ACM
SERIAL NUMBER:
OPTIONS:
ELECTRICAL RATINGS
POWER
MEASUREMENT
LTD.
6703 RAJPUR PLACE
VICTORIA, B.C.
CANADA V8X 3X1
MADE IN
CANADA
+
-
I32
I31
I22
I21
I12
I11
V3
V2
V1
L
N
G
CT SHORTING SWITCH
OR TEST BLOCK
LINE
LOAD
EXPORT/REVERSE/NEGATIVE
IMPORT/FORWARD/POSITIVE
2A
2A
2A
Base Module
CTs
ABC N
SWITCHGEAR
CHASSIS GROUND
NOTES: 1. VOLTS MODE = 4 WIRE WYE 2. Note the polarity of each CT.

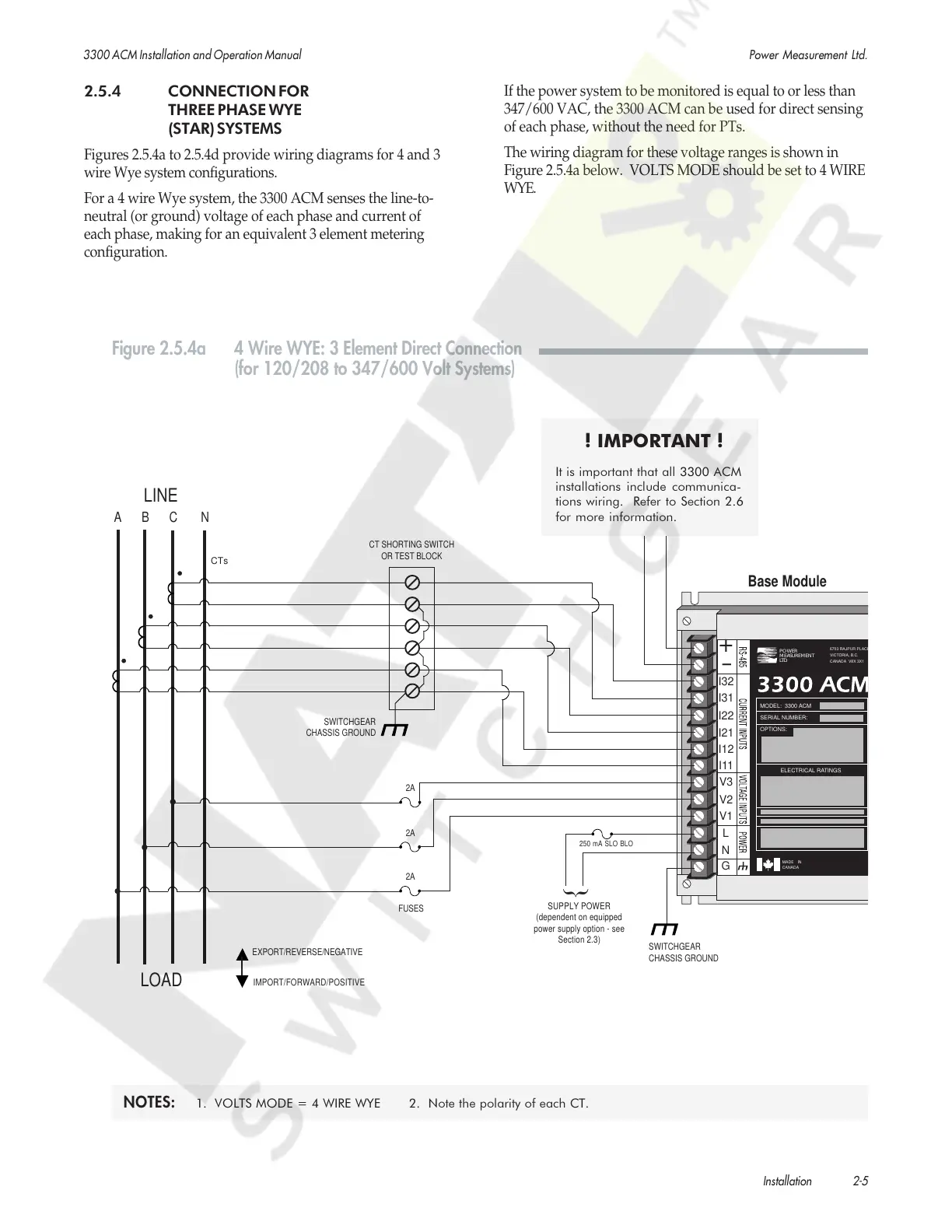

Figure 2.5.4a 4 Wire WYE: 3 Element Direct Connection
(for 120/208 to 347/600 Volt Systems)
! IMPORTANT !
It is important that all 3300 ACM
installations include communica-
tions wiring. Refer to Section 2.6
for more information.
FUSES
SWITCHGEAR
CHASSIS GROUND
SUPPLY POWER
(dependent on equipped
power supply option - see
Section 2.3)
{
250 mA SLO BLO
2.5.4 CONNECTION FOR
THREE PHASE WYE
(STAR) SYSTEMS
Figures 2.5.4a to 2.5.4d provide wiring diagrams for 4 and 3
wire Wye system configurations.
For a 4 wire Wye system, the 3300 ACM senses the line-to-
neutral (or ground) voltage of each phase and current of
each phase, making for an equivalent 3 element metering
configuration.
If the power system to be monitored is equal to or less than
347/600 VAC, the 3300 ACM can be used for direct sensing
of each phase, without the need for PTs.
The wiring diagram for these voltage ranges is shown in
Figure 2.5.4a below. VOLTS MODE should be set to 4 WIRE
WYE.
