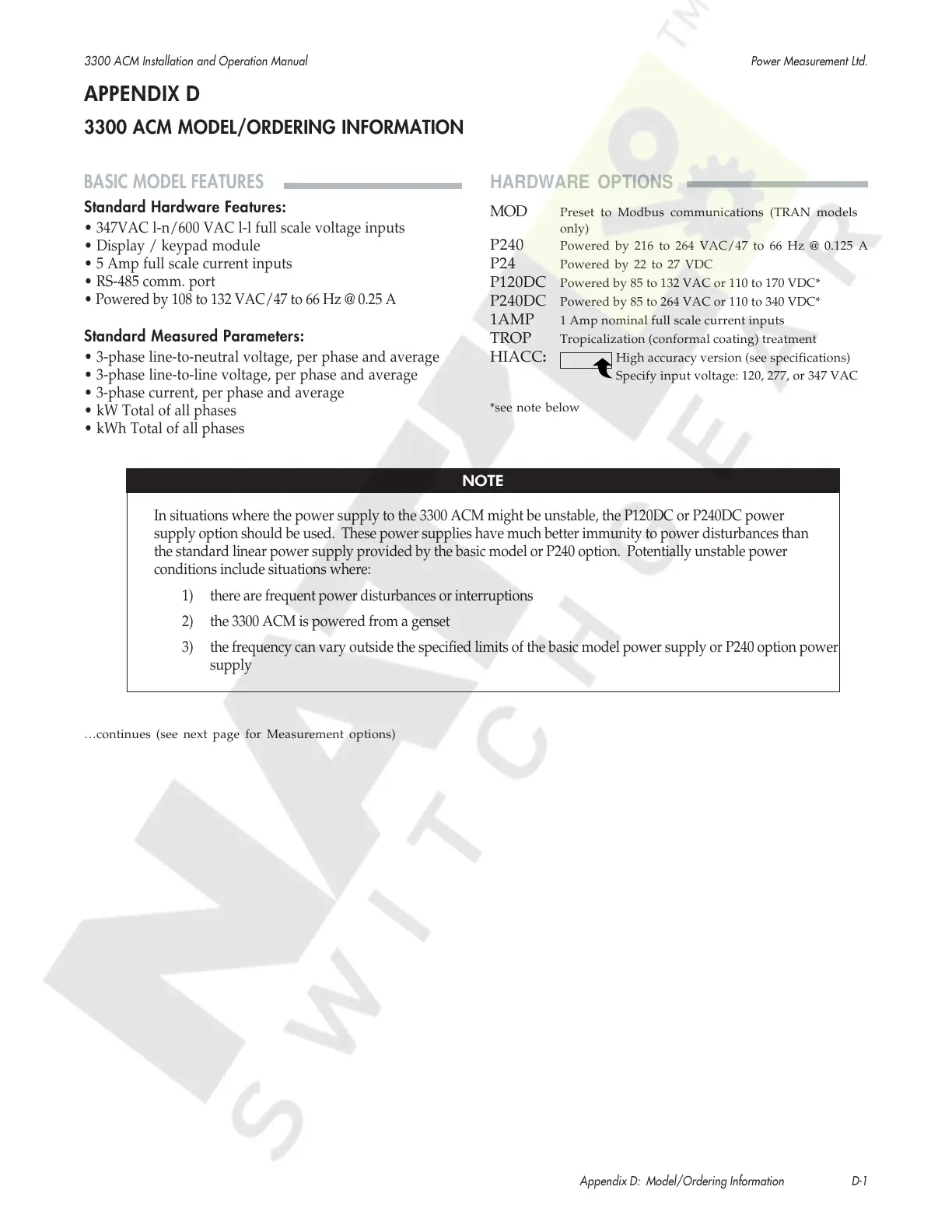

3300 ACM Installation and Operation Manual Power Measurement Ltd.
Appendix D: Model/Ordering Information D-1
HARDWARE OPTIONS
Standard Hardware Features:
• 347VAC l-n/600 VAC l-l full scale voltage inputs
• Display / keypad module
• 5 Amp full scale current inputs
• RS-485 comm. port
• Powered by 108 to 132 VAC/47 to 66 Hz @ 0.25 A
Standard Measured Parameters:
• 3-phase line-to-neutral voltage, per phase and average
• 3-phase line-to-line voltage, per phase and average
• 3-phase current, per phase and average
• kW Total of all phases
• kWh Total of all phases
BASIC MODEL FEATURES
MOD Preset to Modbus communications (TRAN models
only)
P240 Powered by 216 to 264 VAC/47 to 66 Hz @ 0.125 A
P24 Powered by 22 to 27 VDC
P120DC Powered by 85 to 132 VAC or 110 to 170 VDC*
P240DC Powered by 85 to 264 VAC or 110 to 340 VDC*
1AMP 1 Amp nominal full scale current inputs
TROP Tropicalization (conformal coating) treatment
HIACC: High accuracy version (see specifications)
Specify input voltage: 120, 277, or 347 VAC
*see note below
APPENDIX D
3300 ACM MODEL/ORDERING INFORMATION
NOTE
In situations where the power supply to the 3300 ACM might be unstable, the P120DC or P240DC power
supply option should be used. These power supplies have much better immunity to power disturbances than
the standard linear power supply provided by the basic model or P240 option. Potentially unstable power
conditions include situations where:
1) there are frequent power disturbances or interruptions
2) the 3300 ACM is powered from a genset
3) the frequency can vary outside the specified limits of the basic model power supply or P240 option power
supply
…continues (see next page for Measurement options)
