Power Measurement 3300 ACM User Manual

3300 ACM Installation and Operation Manual Power Measurement Ltd.
Installation 2-11

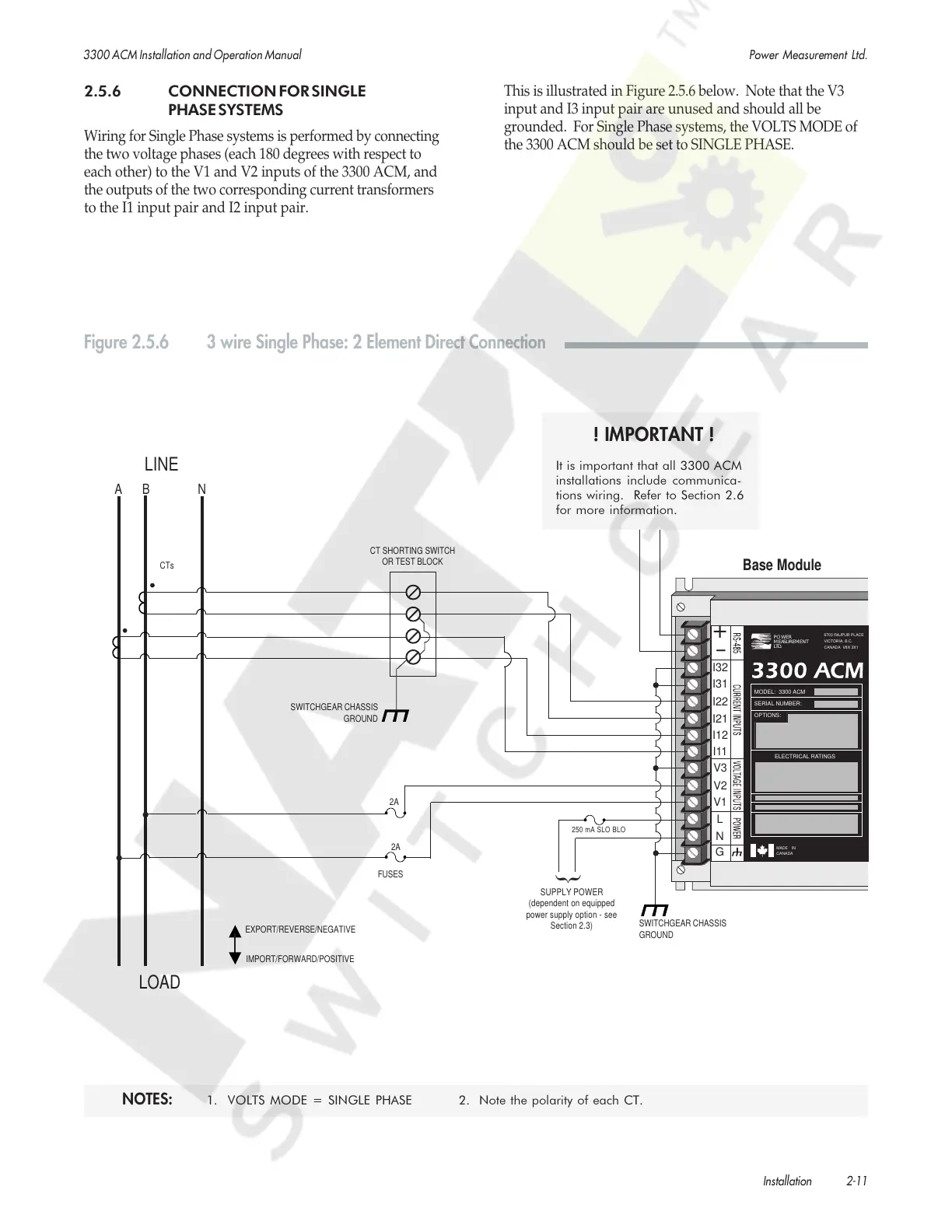

Figure 2.5.6 3 wire Single Phase: 2 Element Direct Connection
MODEL: 3300 ACM
SERIAL NUMBER:
OPTIONS:
ELECTRICAL RATINGS
POWER
MEASUREMENT
LTD.
6703 RAJPUR PLACE
VICTORIA, B.C.
CANADA V8X 3X1
MADE IN
CANADA
+
-
I32
I31
I22
I21
I12
I11
V3
V2
V1
L
N
G
CT SHORTING SWITCH
OR TEST BLOCK
EXPORT/REVERSE/NEGATIVE
IMPORT/FORWARD/POSITIVE
2A
2A
SWITCHGEAR CHASSIS
GROUND
SWITCHGEAR CHASSIS
GROUND
AB N
CTs
LOAD
LINE
SUPPLY POWER
(dependent on equipped
power supply option - see
Section 2.3)
{
250 mA SLO BLO
FUSES
Base Module
! IMPORTANT !
It is important that all 3300 ACM
installations include communica-
tions wiring. Refer to Section 2.6
for more information.
2.5.6 CONNECTION FOR SINGLE
PHASE SYSTEMS
Wiring for Single Phase systems is performed by connecting
the two voltage phases (each 180 degrees with respect to
each other) to the V1 and V2 inputs of the 3300 ACM, and
the outputs of the two corresponding current transformers
to the I1 input pair and I2 input pair.
This is illustrated in Figure 2.5.6 below. Note that the V3
input and I3 input pair are unused and should all be
grounded. For Single Phase systems, the VOLTS MODE of
the 3300 ACM should be set to SINGLE PHASE.
NOTES: 1. VOLTS MODE = SINGLE PHASE 2. Note the polarity of each CT.
