3300 ACM Installation and Operation Manual Power Measurement Ltd.

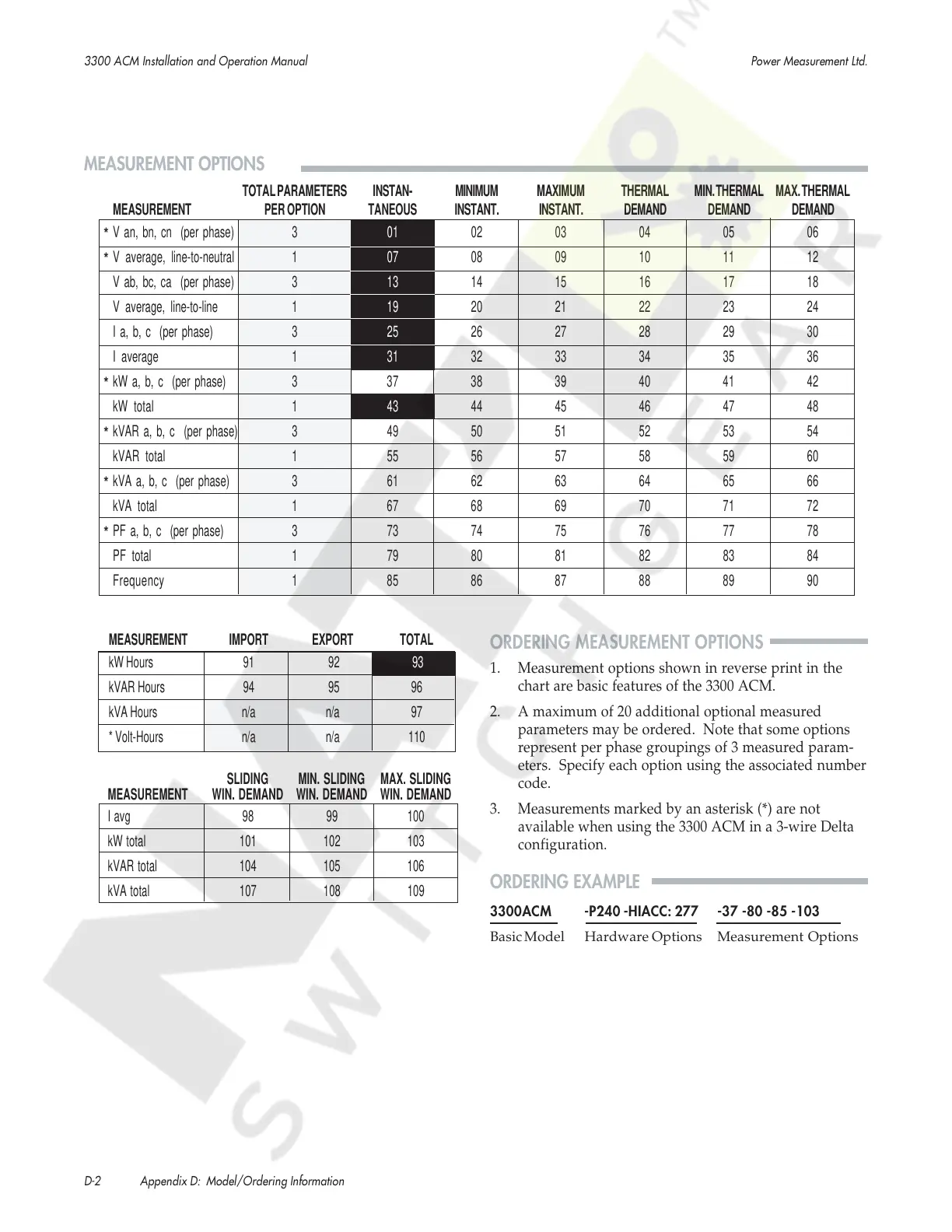

D-2 Appendix D: Model/Ordering Information
ORDERING EXAMPLE
ORDERING MEASUREMENT OPTIONS
SLIDING MIN. SLIDING MAX. SLIDING
MEASUREMENT WIN. DEMAND WIN. DEMAND WIN. DEMAND
I avg 98 99 100
kW total 101 102 103
kVAR total 104 105 106
kVA total 107 108 109
1. Measurement options shown in reverse print in the
chart are basic features of the 3300 ACM.
2. A maximum of 20 additional optional measured
parameters may be ordered. Note that some options
represent per phase groupings of 3 measured param-
eters. Specify each option using the associated number
code.
3. Measurements marked by an asterisk (*) are not
available when using the 3300 ACM in a 3-wire Delta
configuration.
3300ACM -P240 -HIACC: 277 -37 -80 -85 -103
Basic Model Hardware Options Measurement Options
MEASUREMENT IMPORT EXPORT TOTAL
kW Hours 91 92 93
kVAR Hours 94 95 96
kVA Hours n/a n/a 97
* Volt-Hours n/a n/a 110
MEASUREMENT OPTIONS
*
*
*
*
*
*
TOTAL PARAMETERS INSTAN- MINIMUM MAXIMUM THERMAL MIN. THERMAL MAX. THERMAL
MEASUREMENT PER OPTION TANEOUS INSTANT. INSTANT. DEMAND DEMAND DEMAND
V an, bn, cn (per phase) 3 01 02 03 04 05 06
V average, line-to-neutral 1 07 08 09 10 11 12
V ab, bc, ca (per phase) 3 13 14 15 16 17 18
V average, line-to-line 1 19 20 21 22 23 24
I a, b, c (per phase) 3 25 26 27 28 29 30
I average 1 31 32 33 34 35 36
kW a, b, c (per phase) 3 37 38 39 40 41 42
kW total 1 43 44 45 46 47 48
kVAR a, b, c (per phase) 3 49 50 51 52 53 54
kVAR total 1 55 56 57 58 59 60
kVA a, b, c (per phase) 3 61 62 63 64 65 66
kVA total 1 67 68 69 70 71 72
PF a, b, c (per phase) 3 73 74 75 76 77 78
PF total 1 79 80 81 82 83 84
Frequency 1 85 86 87 88 89 90
