It is now possible to remove the power supply board by
unscrewing it from the amplier chassis.

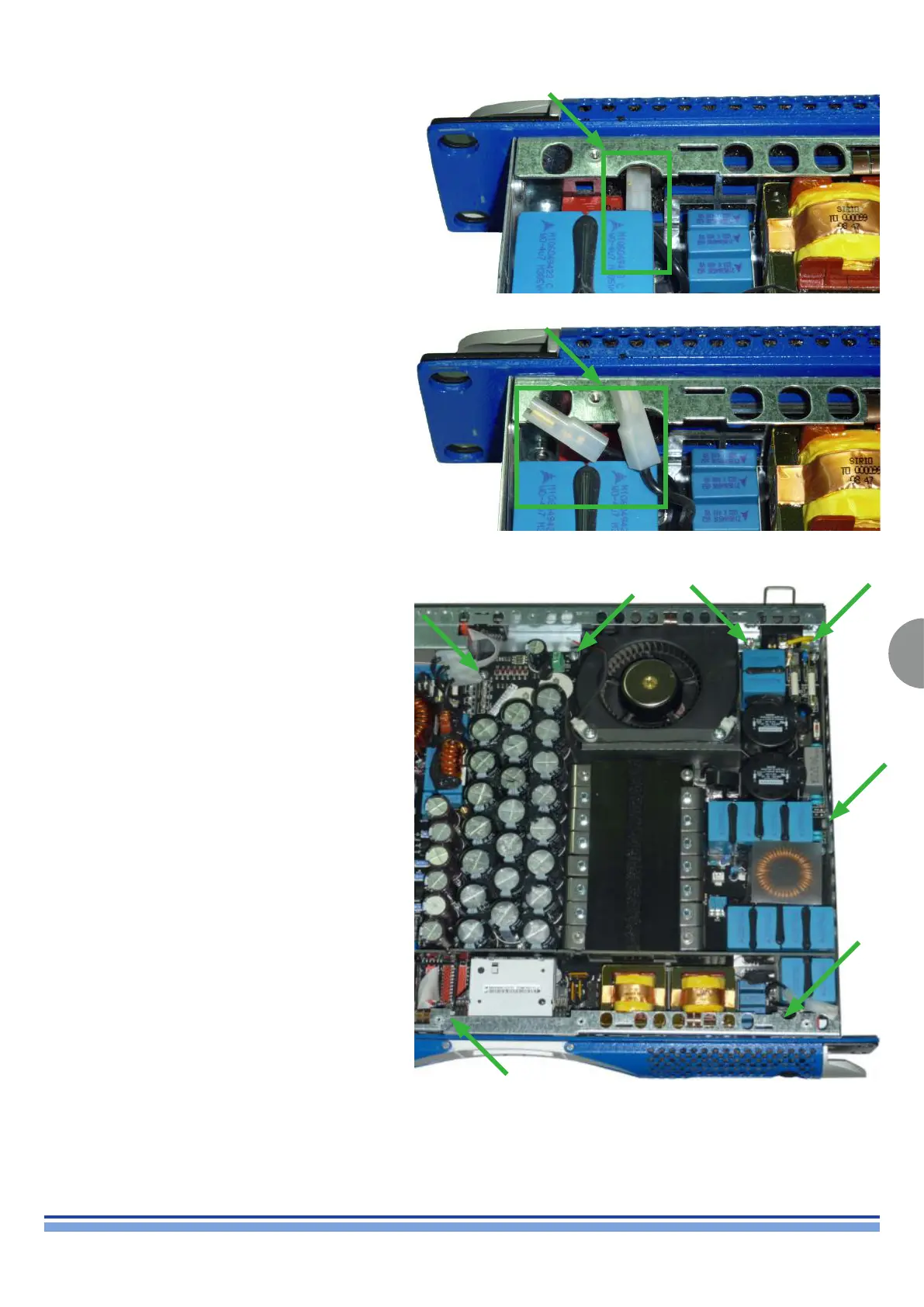

(Fig. 12) depicts the 7 screws and the brass riser to be
removed with a Phillips head and a socketed screwdriver.
(Fig. 12)
Disconnect the amplier power switch cable by removing
the faston behind it as portrayed in (Fig. 11).
(Fig. 11)
Faston of the amplifier power switch cable removed
A more detailed view of the aforementioned screws is
depicted in the following page.
