K2 K3 | SERVICE MANUAL
INDEX

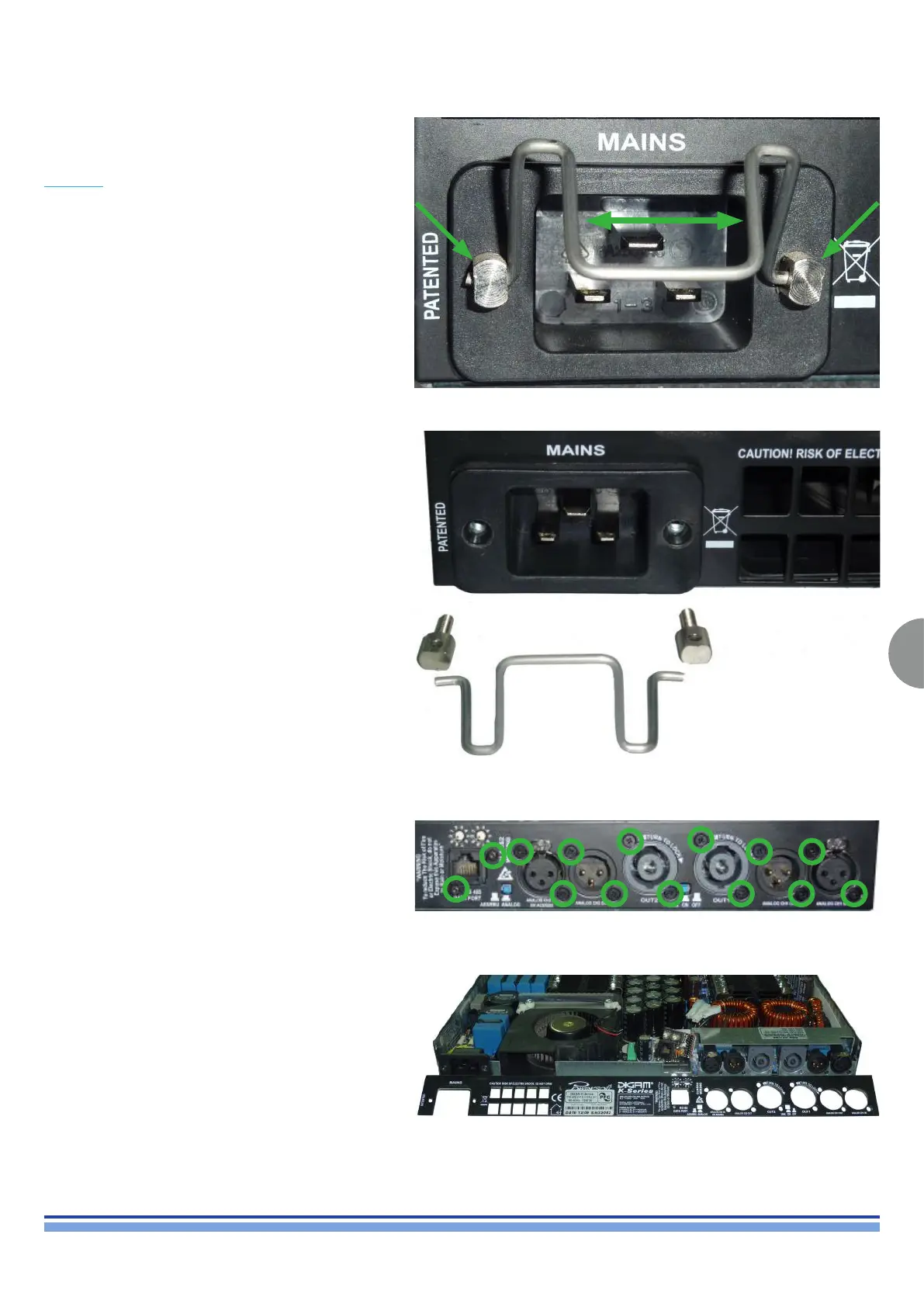

(Fig. 38)
Removed mains connector screws
(Fig. 39)
Detached rear panel
6. Removing the amplifier output board:
Before removing the amplier output board, please
discharge the power supply capacitors as illustrated in
chapter 3.
Start from unscrewing the rear panel connectors
removing the mains connector screws and plug holder.
(Fig. 38)
Proceed in removing the rear panel by unscrewing the
screws as marked in (Fig. 39)
