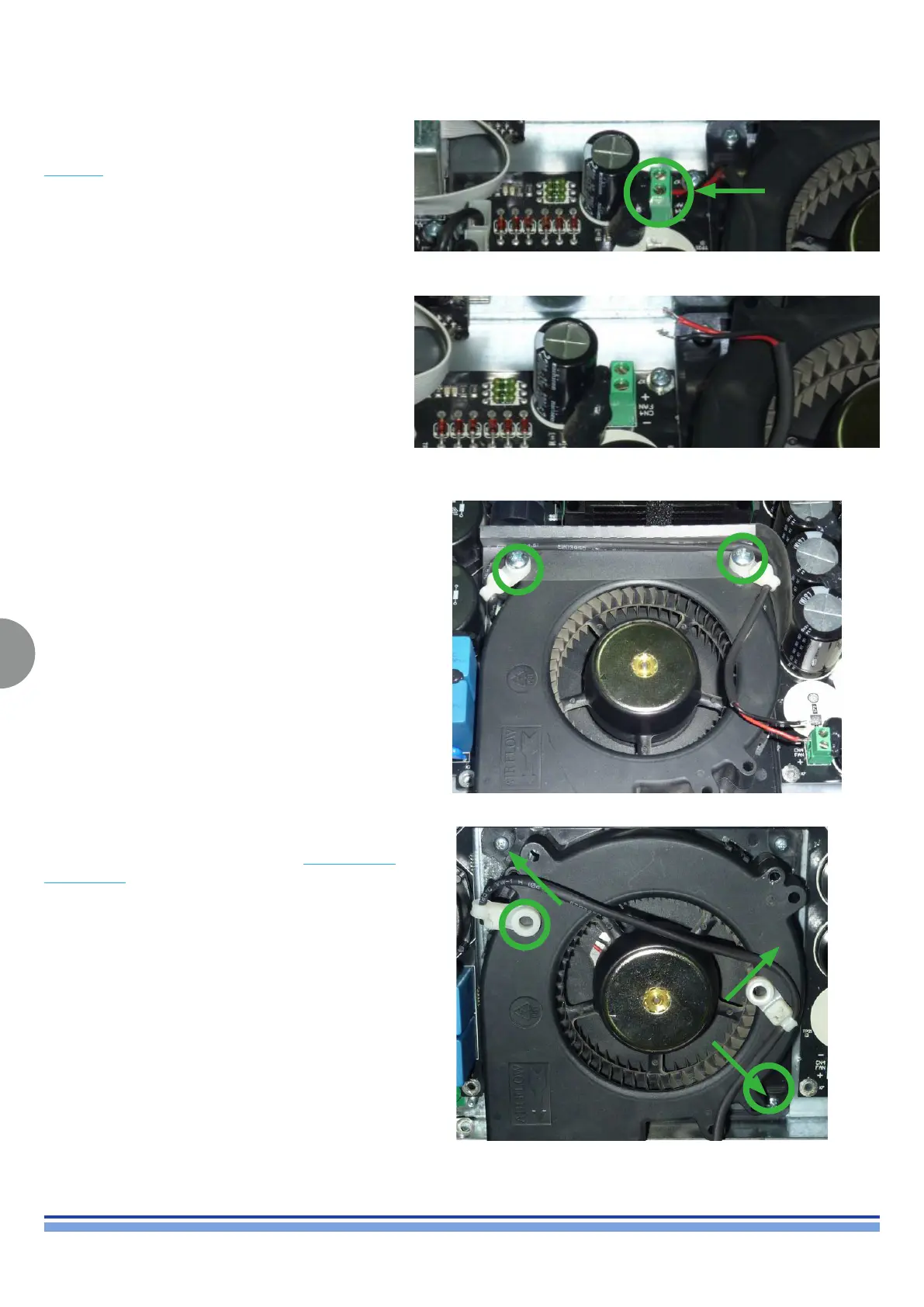

Remove the fan power cable holders and the 3 screws
higlighted in (Fig. 60, 61)
(Fig. 60)
(Fig. 61)
7. Removing the fan:
Prior to removing the fan please proceed in discharging
the power supply’s capacitors bank as explained in
chapter 3.
Begin the fan disassembly by unscrewing the fans power
cables (Fig. 59).
(Fig. 59)
Disconnected fan power cables
In case of a fault in the Fan ask for the KT000804.R K
LGT FAN KIT
