Fault Finding:
With the mutimiter set to Ohm, check for continuity on
both F1, F2 fuses. (Fig. 24)
Locate TP1 and TP2 on the KLASV11 board and check
the resistance between these two Test Points. (Fig. 25)
(Fig. 23)
(Fig. 24)
(Fig. 25)

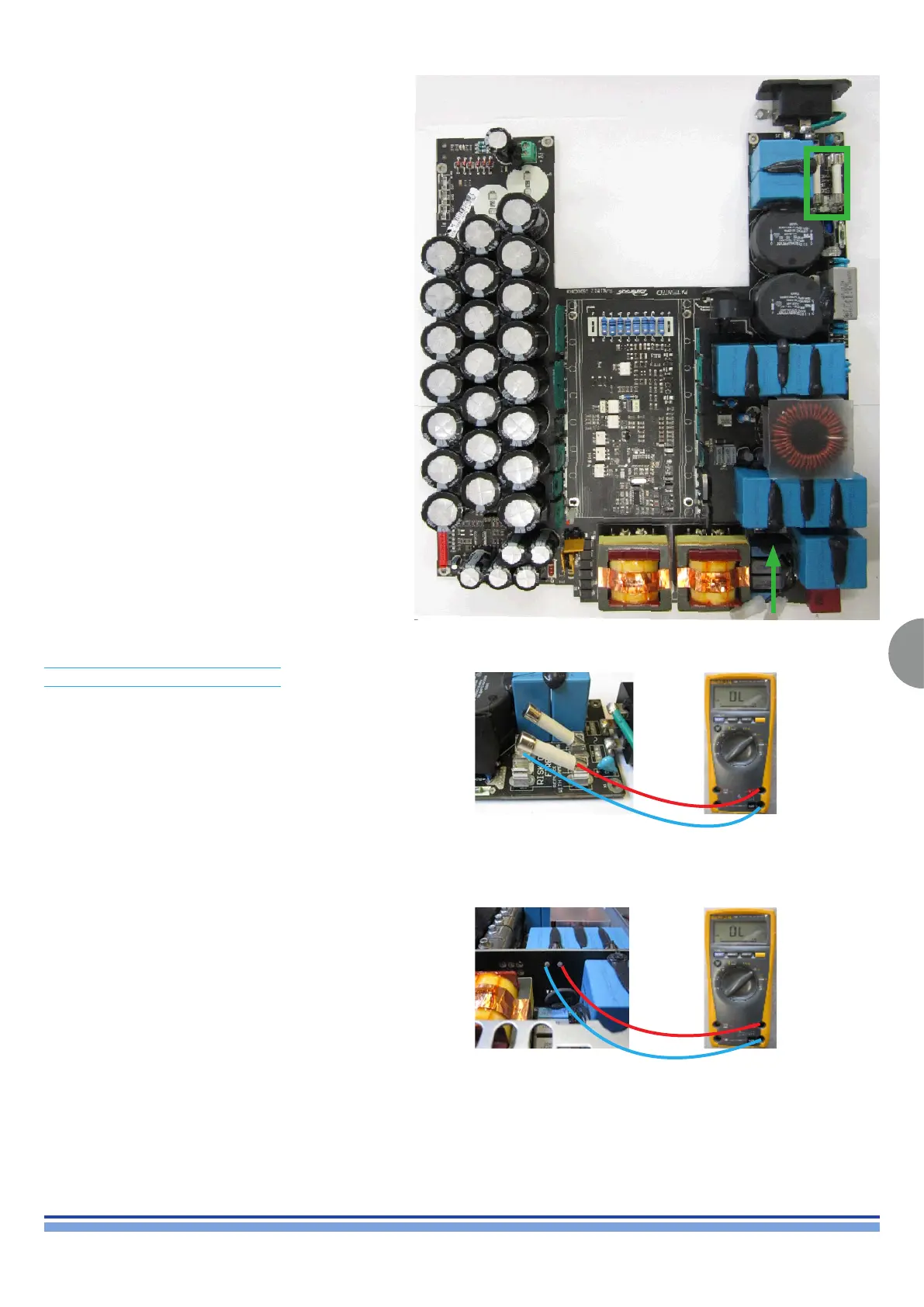

Locate the F1, F2 fuses and the TP1, TP2 Test Points
(Fig. 23)
If the resistance between TP1, TP2 is = 0, ask for the
KT000833.R K LGT DC/DC CONV KIT
KT000801.R K LGT DC/DC CONV KIT
