21
K2 K3 | SERVICE MANUAL
INDEX

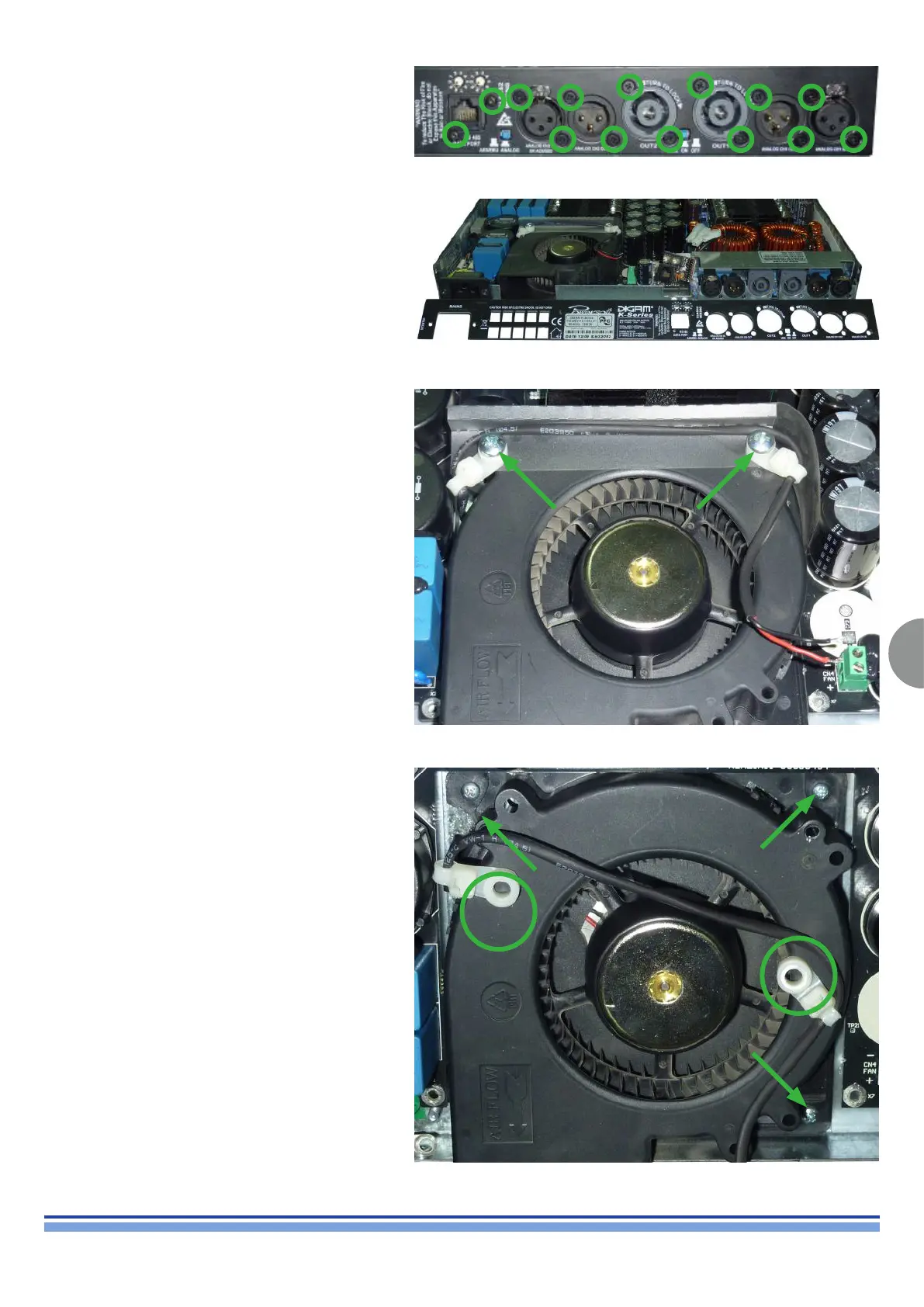

By unscrewing all 14 higlighted screws portrayed in (Fig.
16) it is possible to remove the rear panel.
(Fig. 16)
Removed rear panel
(Fig. 17)
(Fig. 18)
Lastly, remove the Fan by unscrewing the two cable
holders and the three screws higlighted in (Fig. 17, 18)
