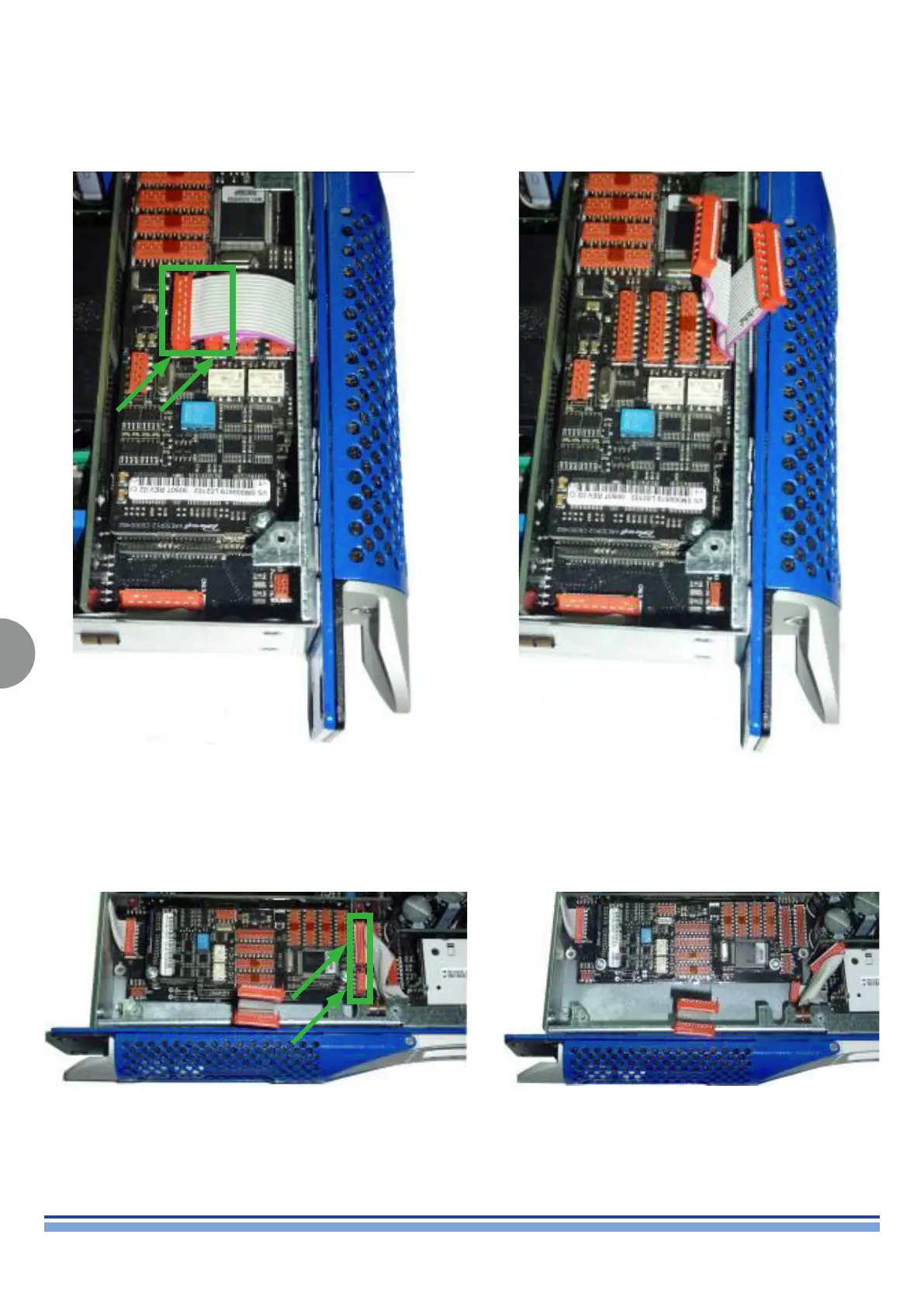

Once all 7 screws have been removed, unplug the two at cables connecting the optional KAESOP board (if installed) to the front panel
RJ45 plugs as portrayed in (Fig. 42)
Pull back the amplier output board in order to unplug the two control board’s at cables (Fig. 43)
(Fig. 42) Unplugged KAESOP flat cable
(Fig. 43) Unplugged control board flat cable
