powersoft K2 User Manual

26 | K Series | User guide

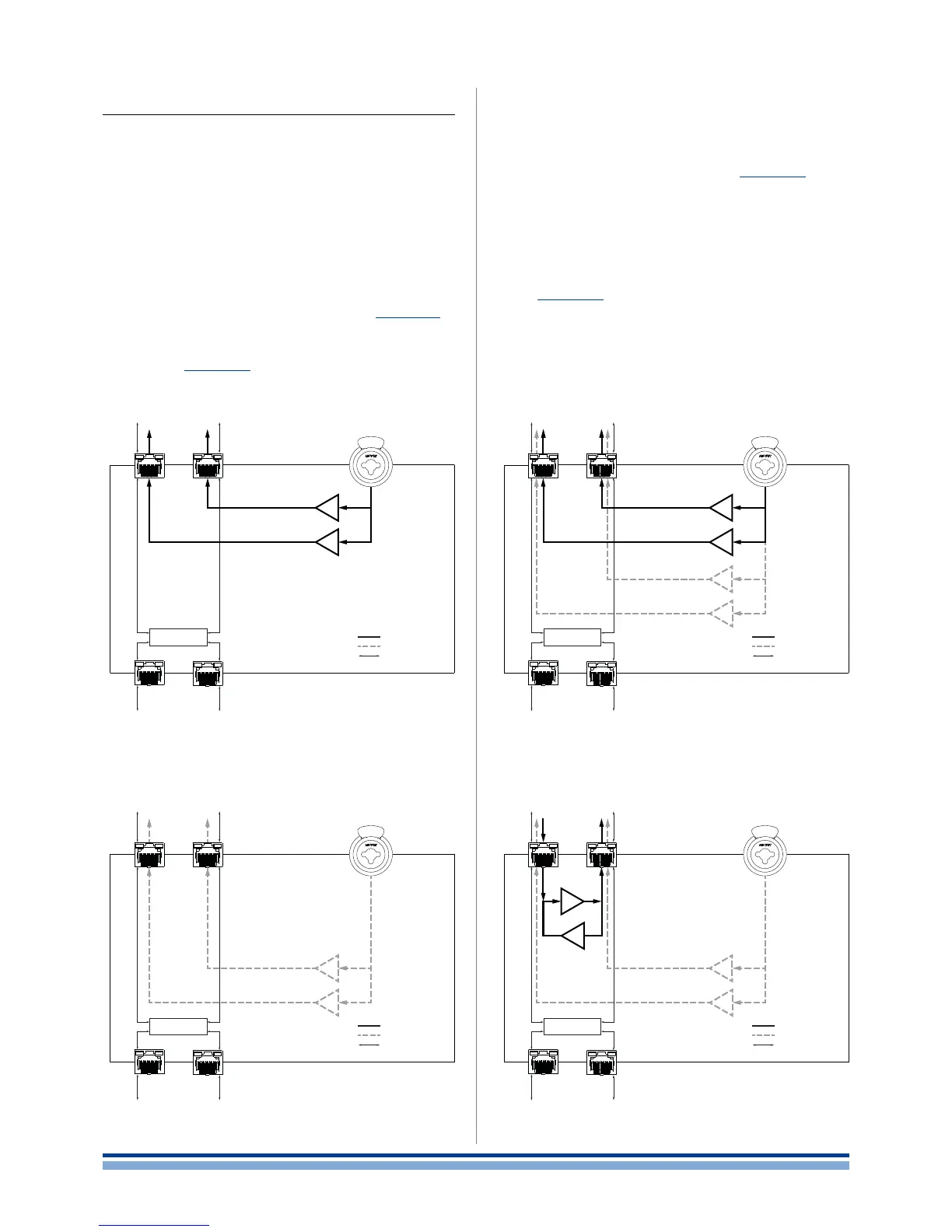

10 : 3.KEASOP forward mode
When the amplier is set in forward mode, the AES3 sig-
nal coming into the amplier from the AES3-XLR connector
is forwarded to both of the primary RJ45 ports.
The rear panel toggle button near to the channel 2 XLR
connector must be in the “AES/EBU” position. There are
three ways the AES can be forwarded: forward to AES3-A,
forward to AES3-B, forward to both.
10 : 3.1. Forward to AES3-A
The amplier’s AES3-XLR connector will be routed to the
AES3-A stream on both primary PORT 1 and 2 (FIGURE 36).
If there is an AES3-B stream incoming from either pri-
mary RJ45 ports (1 or 2), this will be repeated on the other
primary port (FIGURE 39).
10 : 3.2 . Forward to AES3-B
The amplier behaves just as in the forward to AES3-A
mode but with respect to the AES3-B stream.
The AES3-XLR stream will be routed to the AES3-B
stream on both primary PORTS 1 and 2 (FIGURE 37).
The AES3-A stream, if present will be repeated from/to
primary RJ45 ports 1 and 2.
10 : 3.3. Forward to both
The amplier’s AES3-XLR stream will be routed to both
AES3-A and AES3-B streams on both primary PORTS 1
and2 (FIGURE 38).
Repeater functionality will be disabled.
IMPORTANT: In any forward mode, the amplifier
can accept as the sole AES3 input signal the
one coming from the AES3-XLR connector.
The RJ45 ports cannot, input AES3 signals to the amplifier.
AES3-B stream
AES3-A stream
Control data stream
Port 1
(primary)
Port 2
(primary)
XLR
AES3
Port 3
(secondary)
Port 4
(secondary)
Ethernet switch
FIGURE 36: Forward AES3-XLR to AES3-A.
For consistency, primary ports are placed in the rear of the
amp, while secondary ports are at the front. Notice that AES3
streams are monodirectional, while data stream is bidirectional.
AES3-B stream
AES3-A stream
Control data stream
Port 1
(primary)
Port 2
(primary)
XLR
AES3
Port 3
(secondary)
Port 4
(secondary)
Ethernet switch
FIGURE 37: Forward AES3-XLR to AES3-B.
AES3-B stream
AES3-A stream
Control data stream
Port 1
(primary)
Port 2
(primary)
XLR
AES3
Port 3
(secondary)
Port 4
(secondary)
Ethernet switch
FIGURE 38: Forward AES3-XLR to both.
Repeat is disabled.
AES3-B stream
AES3-A stream
Control data stream
Port 1
(primary)
Port 2
(primary)
XLR
AES3
Port 3
(secondary)
Port 4
(secondary)
Ethernet switch
FIGURE 39: Forward AES3-XLR to AES3-B.
Repeat AES3-A from PORT 1 to PORT 2.
