powersoft K2 User Manual

12 | K Series | User guide
When in the “slow” mode, the up and down arrows in-
crease or decrease the parameter by a the smallest amount
possible. The “fast” mode will increase or decrease the
parameter value by an amount equal to 10 times the amount
increased in the “slow” mode.
For example: in “slow” mode a single “+” button press
will increase the Max mains current from 22 A to 23 A; in
“fast” mode a single “+” button press will increase the Max
mains current from 22 A to 32 A.

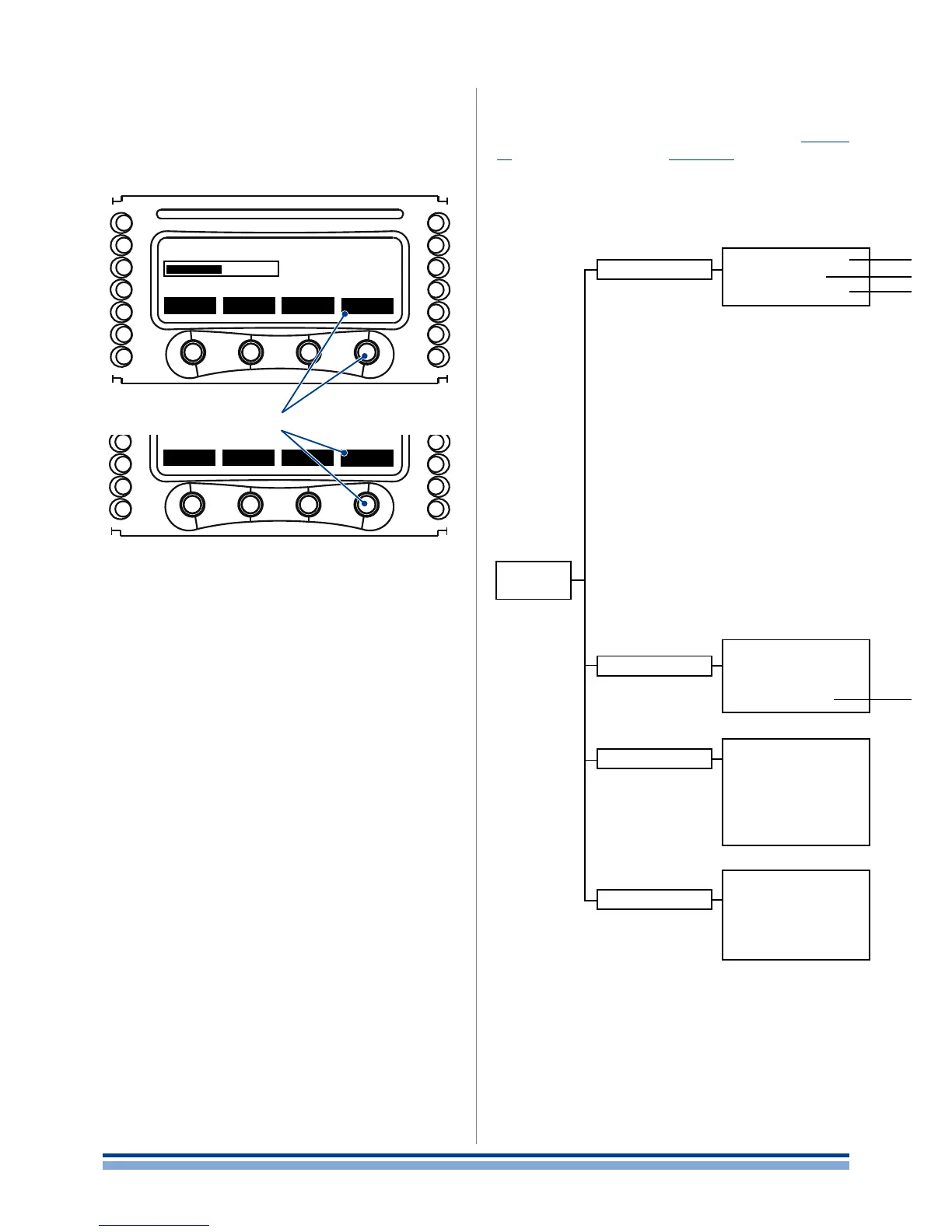

8 : 2.2 . Menu diagrams
On the following pages you will nd two diagrams provid-
ing an overview of the structure of the Main menu (FIGURE
20) and DSP settings menu (FIGURE 21) accessible via the
front panel on K Series ampliers.
Max Mains Current
back
fast
- +
22 A rms
Max Mains Current
back
fast
- +
23 A rms
Max Mains Current
back
slow
- +
22 A rms
Max Mains Current
back
slow
- +
32 A rms
FIGURE 19: Fast/slow data emission.
Display
Local presets
Setup
Menu
Settings
Amplier Settings
DSP Settings
1
Network Settings
2
Output meters
Temperature
Mains meters
Amplier name
Lock presets
Locked bank size
Recall local preset
Save local preset
Change lock code
Erase all presets
Hardware Info
Hardware Monitor
LCD contrast
Set Keylock code
Service
Source selection
Source mode
Gain trim
If no link
AES3-XLR rear panel
AES3-A
AES3-B
Parallel from L
Parallel from R
Stereo
Mute
Analog
Display Amp data
Edit Amplier name
Analog  Out
Analog  DSP  Out
1
AES3  Out
1
AES3  DSP  Out
1
KAESOP  Out
2
KAESOP  DSP  Out
1, 2
Output attenuation
Input gain/sens
Inuput select
Max output voltage
Max mains current
Clip limiter CH1
Clip limiter CH2
Gate CH1
Gate CH2
Mute at Power on
Idle Mode
see “DSP Settings” diagram
Device mode
Addressing mode
Set address
Show net cong
Audio
Repeat (default)
Forward to AES3-A
Forward to AES3-B
Forward to both
IP address
subnet mask
Default gateway
1
Available only with optional KDSP board
2
Available only with optional KAESOP board
FIGURE 20: Main menu diagram.
Toggle fast/slow input
