POWERVAR Security Plus UPS
27

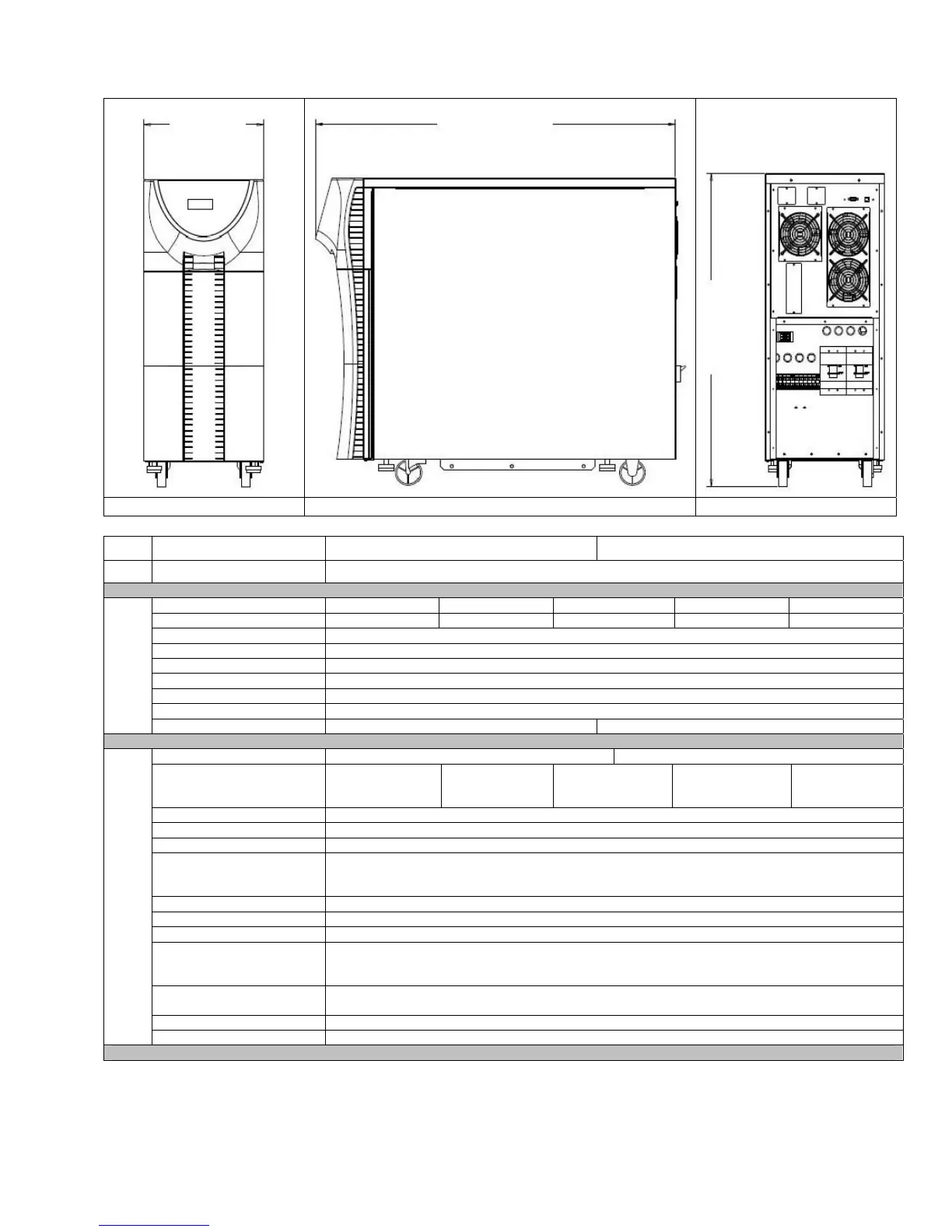

FRONT SIDE REAR
Model ABCDEF12.0-22 ABCDEF15.0-22
Topology True On line, Double-Conversion, IGBT Design, Internal Isolation Transformer
INPUT
Voltage (VAC) 200 208 220 230 240
Voltage Range (VAC) 140-230 146-239 154-253 161-264 168-276
Voltage Tolerance + 15% ~ -30% before switching to batteries
Frequency (Hz) 50/60
Frequency Tolerance 42 Hz to 69 Hz before switching to batteries
Input PF > 0.95
Input Current THD < 5.0%
Input Connection Hardwired Standard; Line Cord Optional (Consult factory)
Input Capacity 13793W 17241W
OUTPUT
Capacity 12000 VA / 10800W 15000 VA / 13500W
Voltage (VAC) 200
120
208
240
220 230
120
208
240
Voltage Regulation ± 3.0% Max, ± 1.0% Normal
Output Voltage THD < 3.0%
Power Factor 0.9
Step Load Response
± 4.0% for 50% step load change
± 6.0% for 100% step load change
Return to ± 3.0% of nominal within 3 cycles
Crest Factor 3:1
Frequency (Hz) 50 or 60
Frequency Regulation ± 0.1Hz
Overload
125% for 2 minutes
150% for 30 seconds
300% for 500ms
Efficiency
AC-AC >87.0%
DC-AC >85.0%
Common Mode Noise < 0.5 VRMS
Output Connection Hardwired Standard; Output Receptacles Optional (Consult factory)
15.75
(400.0)
44.39
(1127.54)
42.53
(1080.2)
