PRECISION DIGITAL PD603 - Figure 6. Voltage Input Connections

Sabre P ● Model PD603 Process Meter Instruction Manual
SIGNAL CONNECTOR
21 354
Voltage
Signal
+-
COMmA+V+ XX
COM
SIGNAL CONNECTOR
mA+
21 354
V+ XX
3-Wire
Voltage
Transducer
Signal
+
21
24V OUT
-
P+ P-

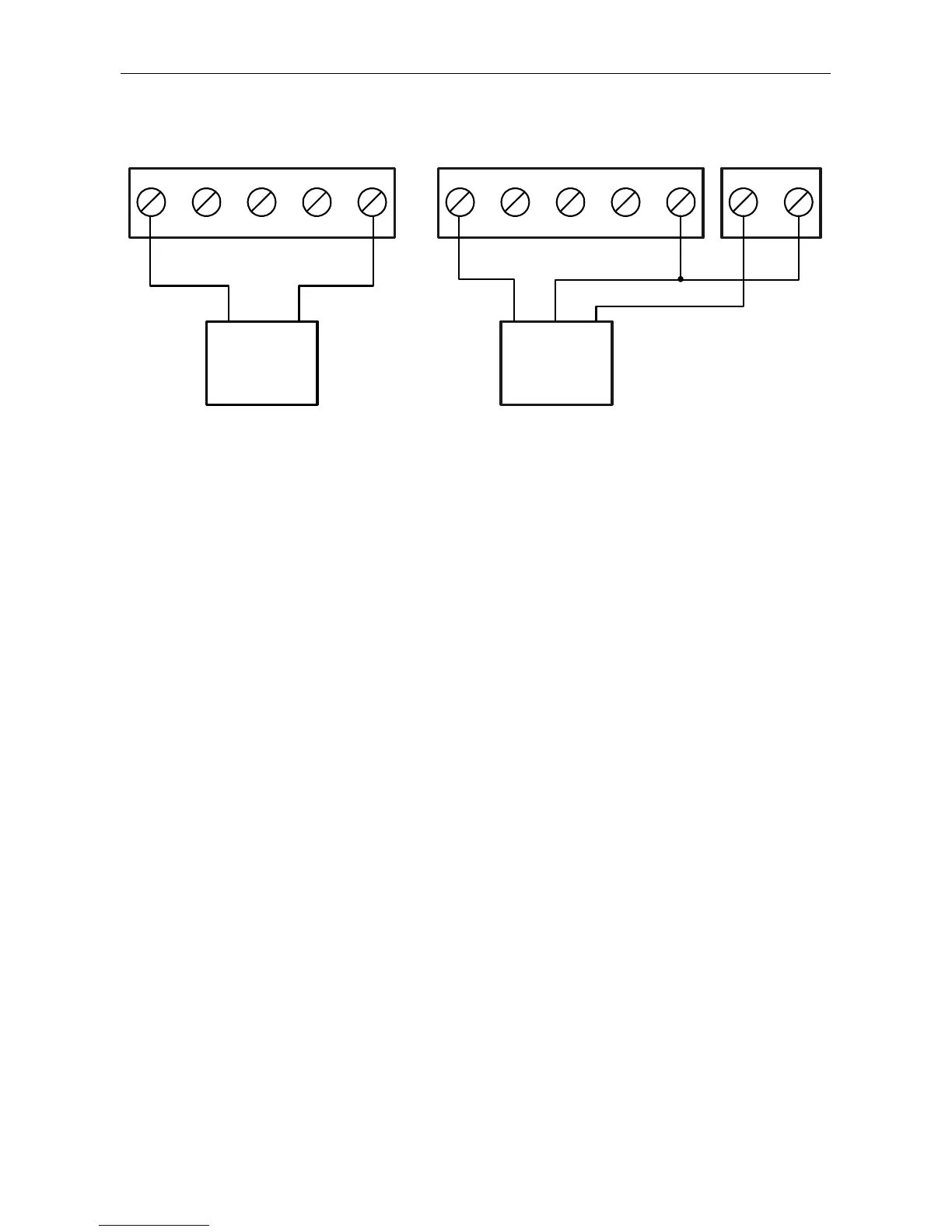

Figure 6. Voltage Input Connections
The meter is capable of accepting any voltage from -10 VDC to +10 VDC.
