5.23 Ellipitical Fitness Crosstrainer
Page 26

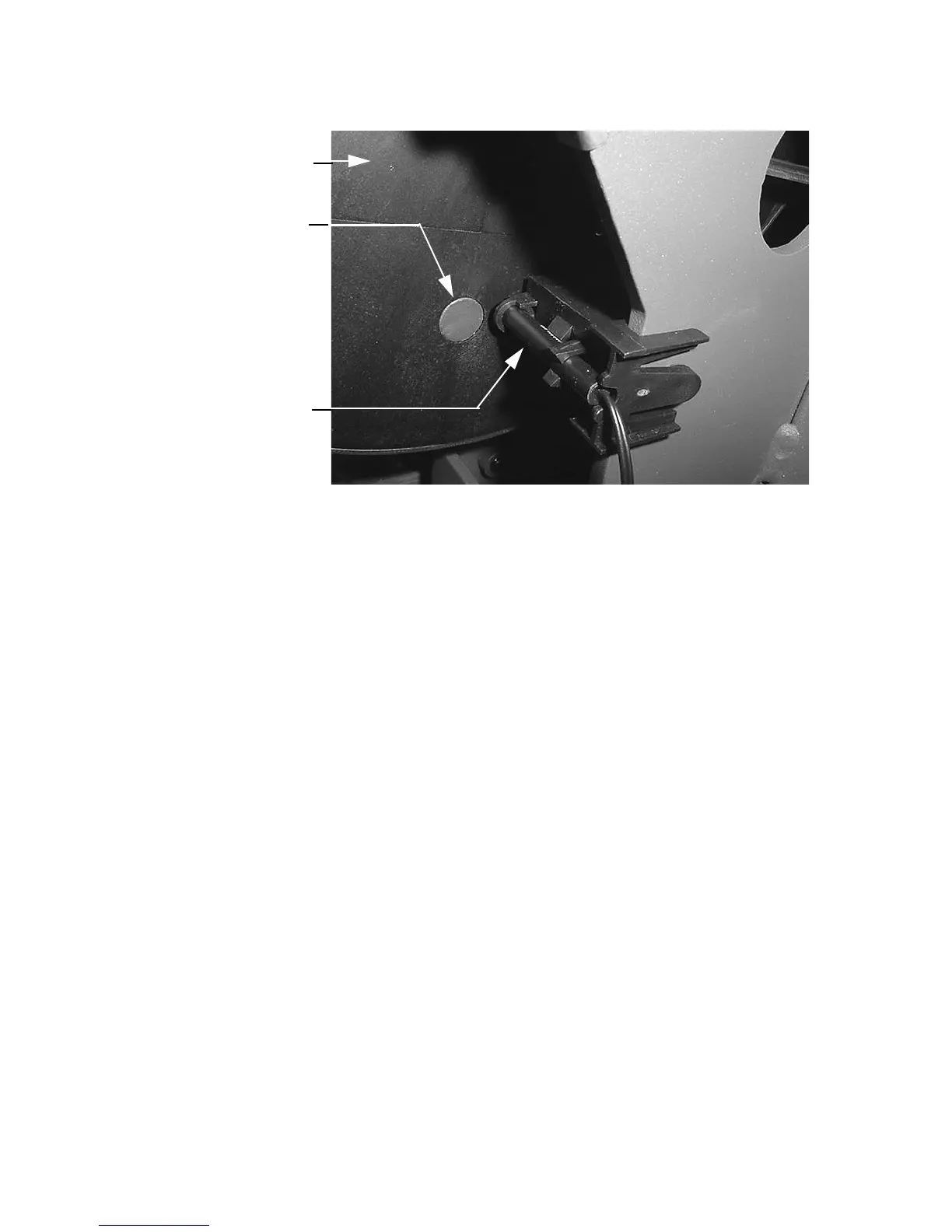

Diagram 6.4 - Speed Sensor (serial code AA23)
3. Rotate the step up pulley so that the speed sensor magnet is not near the reed switch.
Using a DC voltmeter, measure the voltage between terminal 1 and terminal 5 of J8 on the
lower PCA. The measurement should be approximately 5 Vdc. If the measurement is
correct, skip to step 4. If the voltage is missing or significantly low, disconnect the speed
sensor and repeat the voltage measurement on the J8 connector. If the measurement is
now correct (5 Vdc), replace the speed sensor. If the voltage is still missing or significantly
low, replace the lower PCA. Skip to step 5.
4. Rotate the step up pulley so that the speed sensor magnet is next to the reed switch. Using
a DC voltmeter, measure the voltage between terminal 1 and terminal 5 of J8 on the lower
PCA. The measurement should be approximately 0 Vdc. If the voltage is 5 Vdc or
significantly high, replace the speed sensor per Procedure 7.12. Skip to step 8.
5. With the an ohmmeter connected to terminals 1 and 5 of J8 on the lower PCA, rock the step
up disk forward and backward so that the magnet is passing in front of and away from the
reed switch. The ohmmeter should alternate between continuity (very low resistance) and
infinity (open circuit). If the resistance measurement does not alternate between continuity
and infinity, repeat steps 2 through 4. If the resistance does alternate between continuity
and infinity, continue with step 6.
6. If you have performed all of the above tests and the stride rate is not displayed when the unit
is operated, there are three parts that could cause the problem. There are not any good
tests to check these parts other than substituting a known good part. They are lower PCA,
interconnect cable and upper PCA. Replace only one part at a time. If the new part does not
correct the problem, replace the original part.
7. If you have performed all of the above tests and the speed sensor is still not functioning, call
Precor Technical Support.
Check the operation of the EFX as described in Section Four.
Step Up Pulley
Magnet
Speed Sensor
To Next Page
