5.23 Elliptical Fitness Crosstrainer
Page 79
Procedure 7.26 - Replacing a Lift Motor
1. Set the on/off switch in the “on” position. Press the QUICK START, while striding on the
unit, raise the incline to level 17.
2. Set the on/off switch in the “off” position. Remove the A.C. line cord from the A.C. outlet and
from the power entry module.
3. Remove both front cover halves.
4. Remove the left and right rear covers. Rotate both stairarms to the rear of the unit.
5. Remove the bolts that fasten the upper end of the ramp to the lift motor yoke. See Diagram
7.21.
6. Carefully, draw the lift motor yoke out of the ramp and lay the ramp down against the frame.
7. Remove the retaining bolt and nut at the top end of the lift motor drive screw. See Diagram
5.5. Thread the lift motor yoke off of the lift motor drive screw.
8. Disconnect the lift motor connector and remove the screw that retains the lift motor frame
ground. See Diagram 7.30.

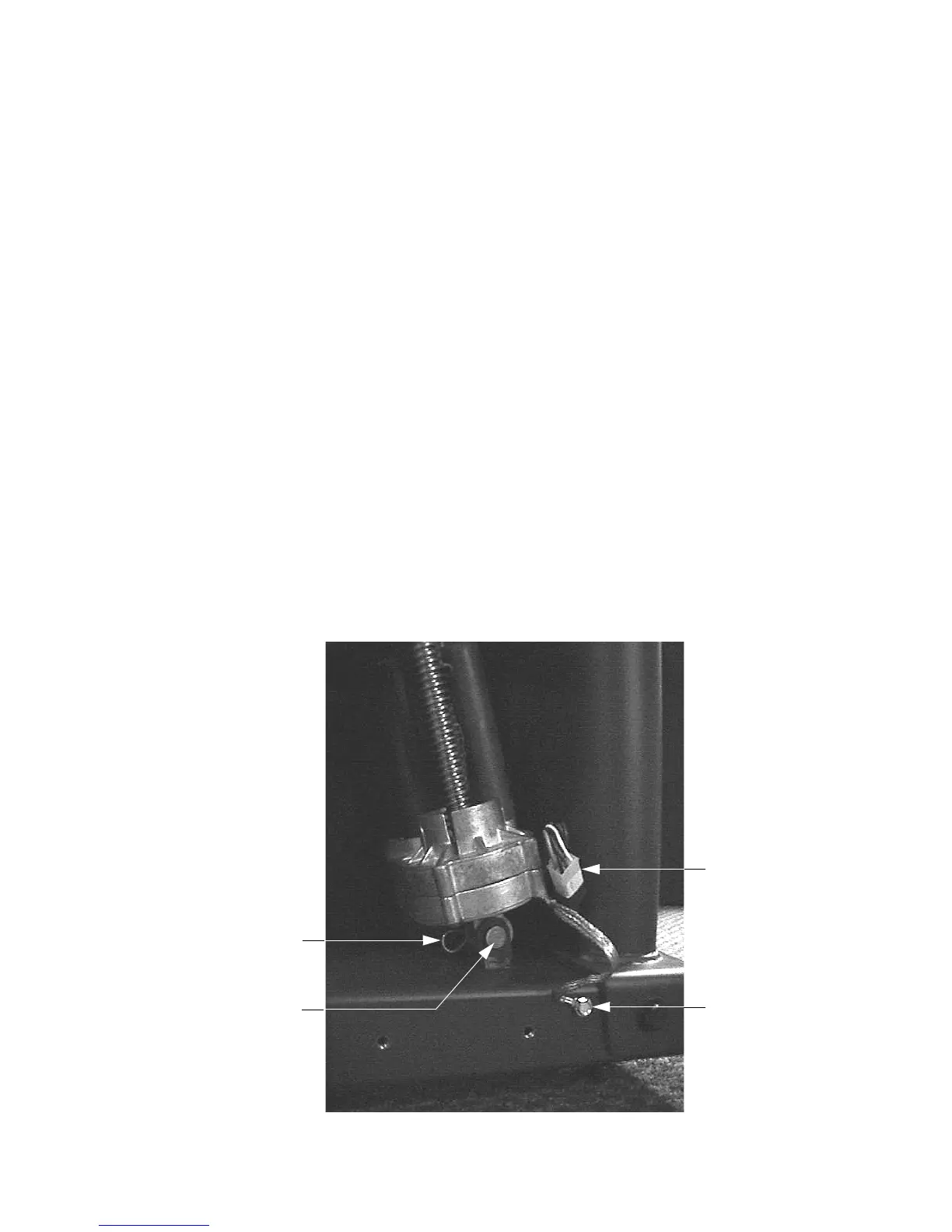

Diagram 7.30 - Lift Motor Mounting
Lift Motor
Connector
Frame Ground
Hitch Pin
Clevis Pin
To Next Page
