5.23 Elliptical Fitness Crosstrainer
Page 69
Procedure 7.20 - Replacing a Input Belt Tensioner
Warning: Care must be taken when work is being performed in the area of the stairarms. Pinch
points exist between the stairarm and ramp and between the stairarm and crankarm,
when the rear covers are removed.
Procedure
1. Set the on/off switch in the “off” position, then unplug the power cord from the wall outlet.
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
2. Remove the left and right cover sections as described in Procedure 7.1.
3. Remove the input belt tension mounting bolt and slide the input belt tensioner out of the
frame.

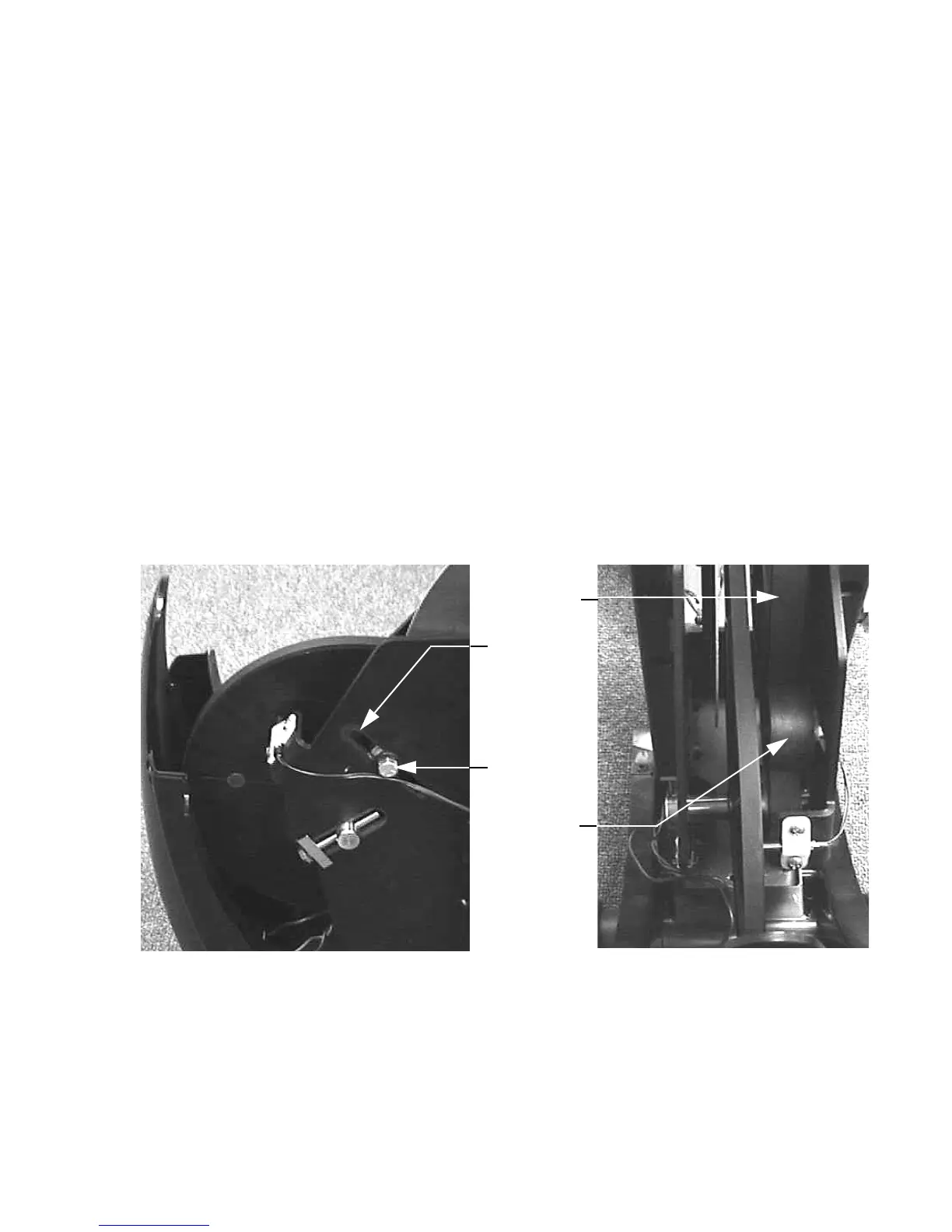

Diagram 7.23 - Input Belt Tensioner
4. Loosely mount the new input belt tensioner in it’s mounting position using the bolt removed
in step 3.
5. Using your finger, press in on the center of the step up pulley belt to get a feeling of how
much pressure it takes to deflect the belt a 1/4”.
Input
Belt
Tensioner
Input Belt
Input Belt
Tension Bolt
Adjustment
Slot
To Next Page
