5.23 Elliptical Fitness Crosstrainer
Page 63
Procedure 7.15 - Replacing a Wheel Assembly
Warning: Care must be taken when work is being performed in the area of the stairarms. Pinch
points exist between the stairarm and ramp and between the stairarm and crankarm,
when the rear covers are removed.
Procedure
1. Set the on/off switch in the “off” position, then unplug the power cord from the wall outlet.
WARNING
Before continuing with this procedure, review the Warning and Caution statements listed in
Section One, Things You Should Know.
2. Remove the screws from the wheel axle. If when removing the second wheel axle screw,
the axle rotates and the screw does not unthread, insert a 5/32” allen wrench into the end of
the axle from which the screw has been removed. The allen wrench will hold the axle while
you remove the remaining screw. Remove the wheel assembly from the stairarm.

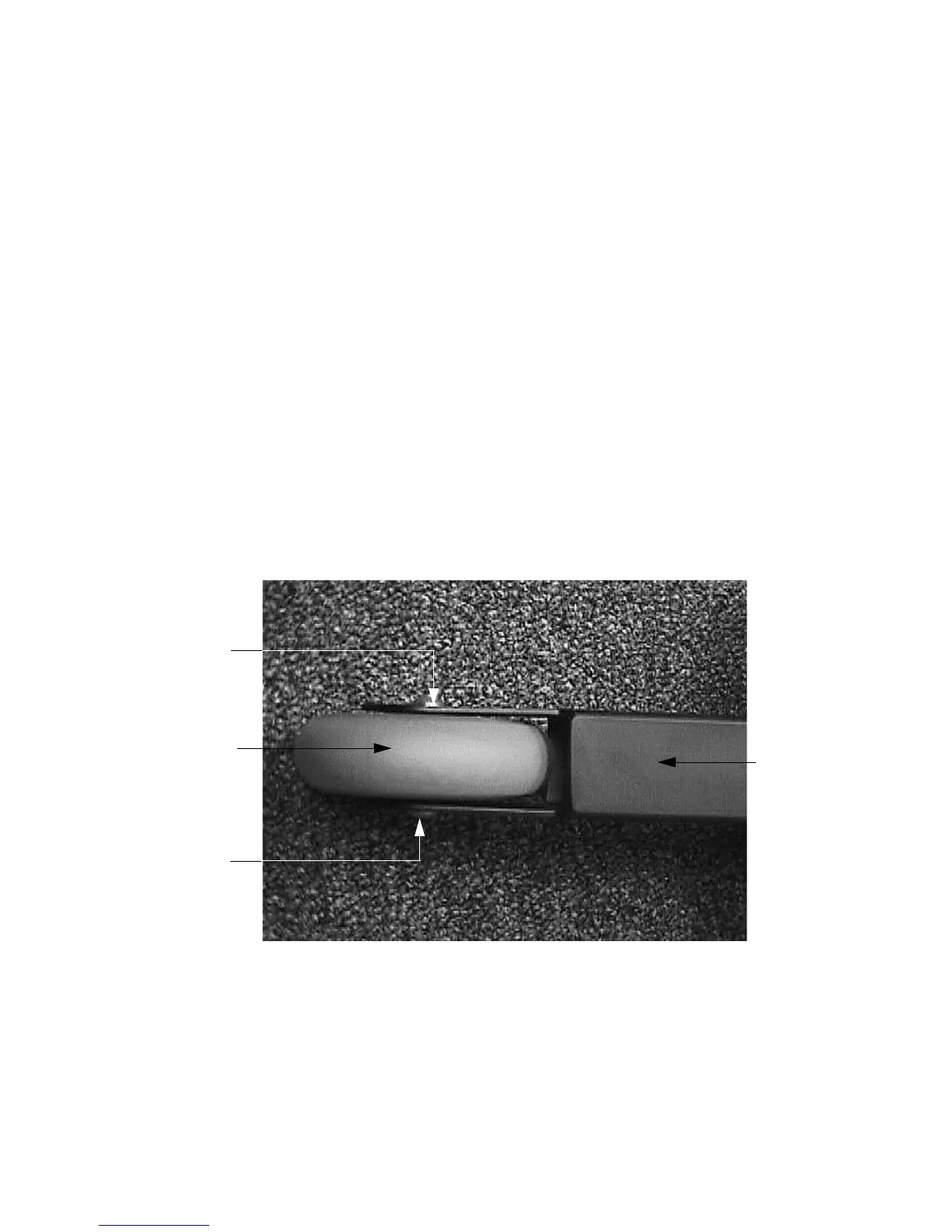

Diagram 7.18- Wheel Assembly
3. Set the replacement wheel in the stairarm and insert and hand tighten the wheel axle
screws. Torque the wheel axle screws to 80 in/lbs.
Note: The wheel axle screws are equipped with a “loctite patch”. If the wheel axle screws have
been inserted and removed more than two times, red loctite should be used on the wheel
axle screws when the are re-installed.
Stairarm
Axle
Screw
Axle
Screw
Wheel
To Next Page
