Procedure 7.16 - Replacing a Stairarm Pedal
Warning: Care must be taken when work is being performed in the area of the stairarms. Pinch
points exist between the stairarm and ramp and between the stairarm and crankarm,
when the rear covers are removed.
1. Procedure
1. Set the on/off switch in the “off” position, then unplug the power cord from the wall outlet
2. Loosen and remove the two bolts that fasten the stairarm pedal onto the stairarm.
3. Remove the stairarm pedal from the stairarm.
4. Set the replacement stairarm pedal at it’s mounting position on the stairarm.
5. Install and hand tighten the stairarm pedal mounting hardware removed in step 2. Torque
the stairarm pedal mounting bolts to 11 ft./lbs.

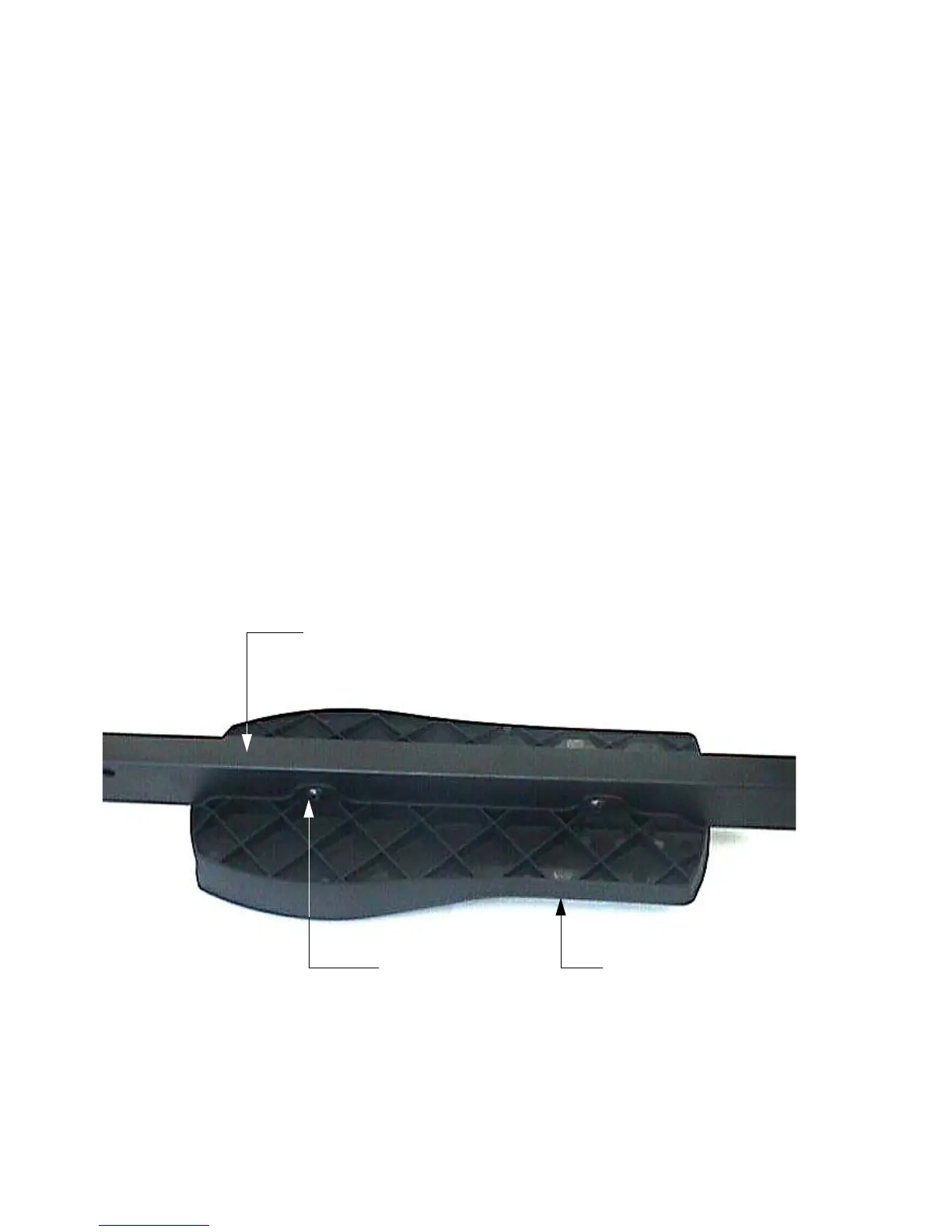

Diagram 7.19 - Stairarm Pedal
Mounting Bolt
Stairarm
Pedal
