Page 37

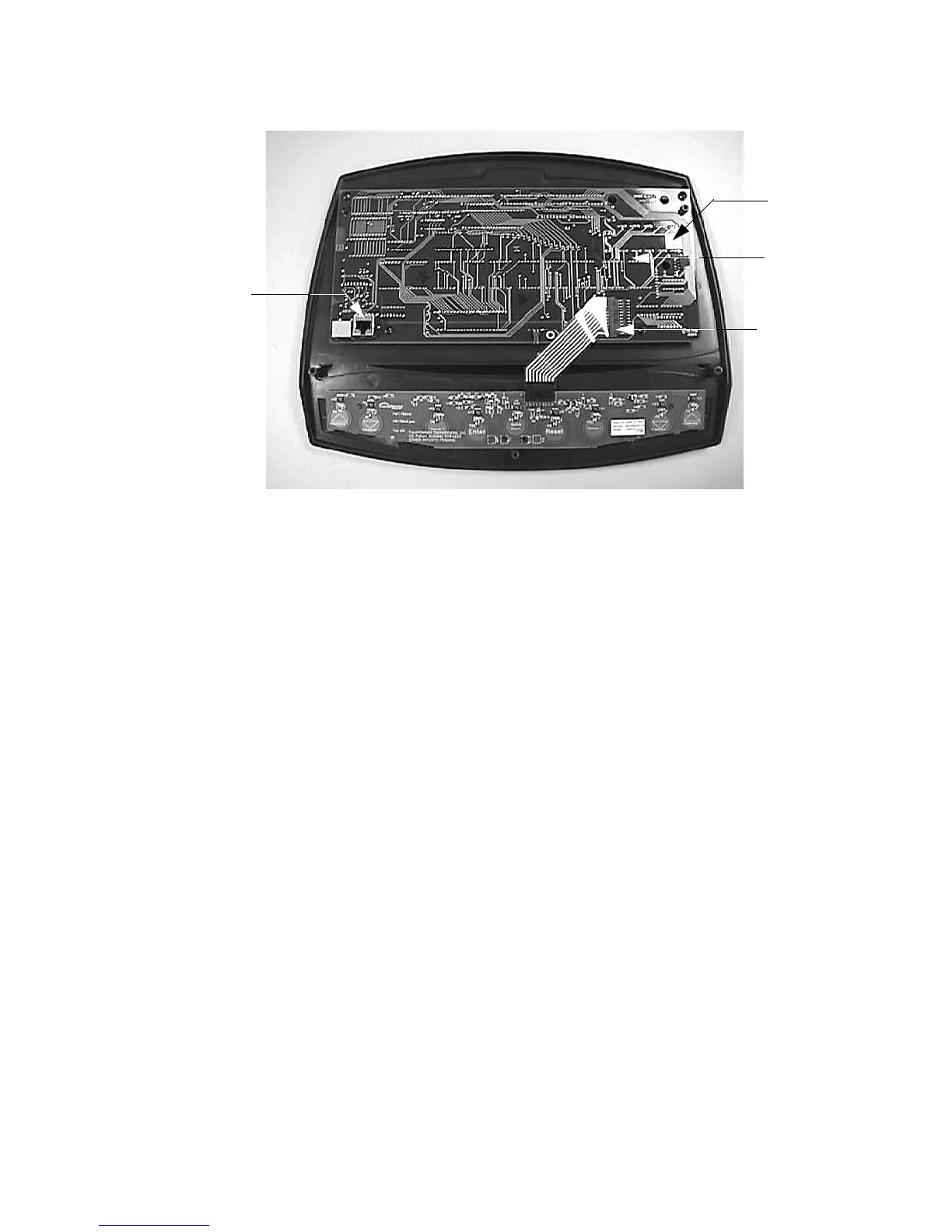

Diagram 7.3 - Display Housing Front Panel, Rear View
7. Position the replacement upper PCA at its mounting location on the display housing front
panel (refer to Diagram 7.3). Replace and tighten the upper PCA mounting screws.
8. Reconnect the keyboard cable to the upper PCA.
9. Reconnect the upper interconnect cable and heart rate cable to the upper PCA.
10. Remove the ground lead of the wrist strap from the EFX frame, then remove the wrist strap
from your arm.
11. Position the display enclosure on the display plate. Replace and tighten the display
mounting screws.
12. Check operation as described in Section Four.
Upper PCA
Keyboard
Connector
Interconnect
Cable
Connector
Heart Rate
Connector
