5.23 Ellipitical Fitness Crosstrainer
Page 68
Procedure 7.19 - Replacing a Handlebar
1. Set the on/off switch in the “off” position, then unplug the power cord from the wall outlet.
2. Slide the lower handle bar boot up the handlebar to expose the lower handlebar mounting
bolts. See Diagram 7.22.
3. Remove both of the lower handlebar mounting bolts. See Diagram 7.22.

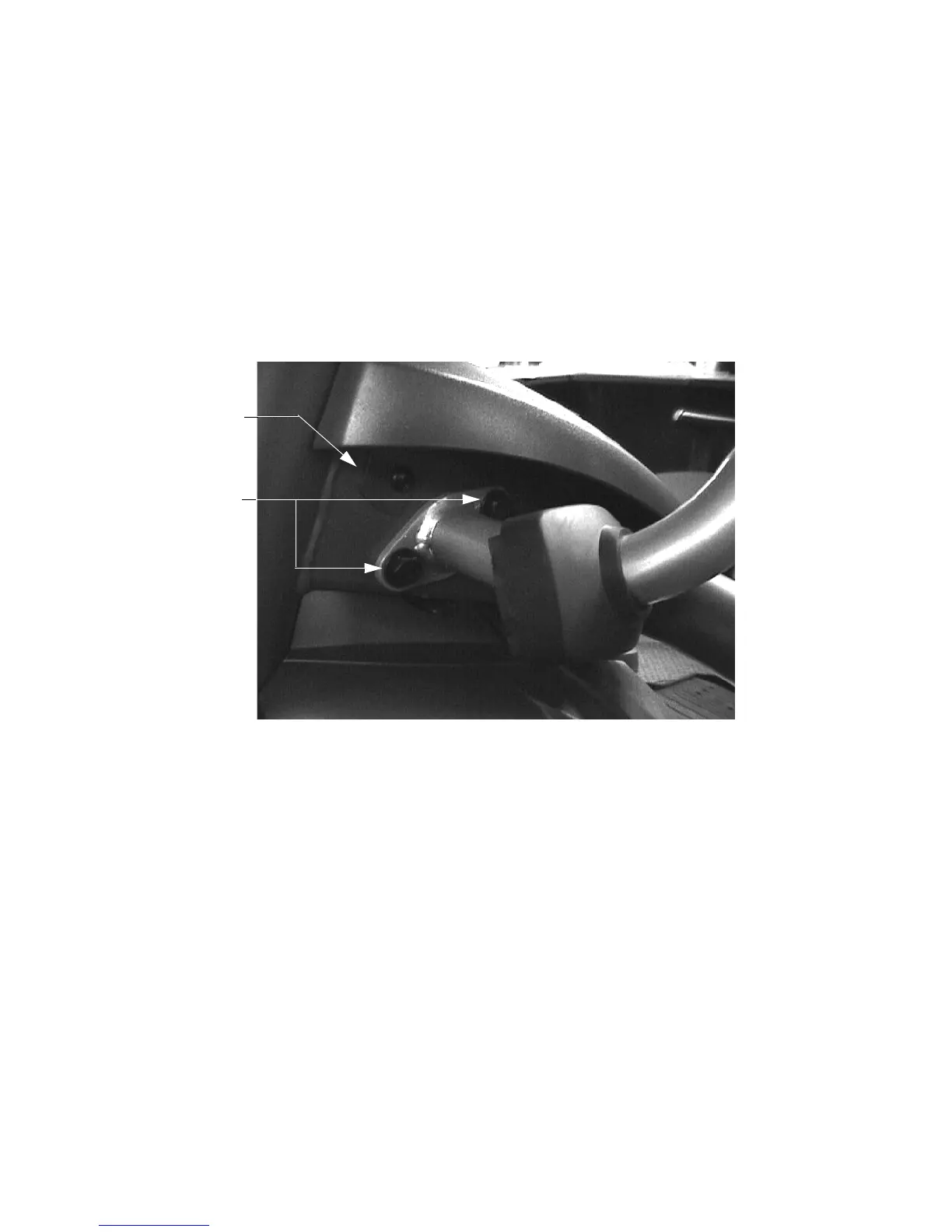

Diagram 7.22 - Lower Handlebar Mounting
4. Remove the bolt that fastens the upper end of the handlebar in the handlebar clamp.
5. Slide the handlebar out of the handlebar clamp.
6. Set the replacement handlebar in its mounting position, and slide the handlebar into the
handlebar clamp.
7. Align the lower end handlebar with its mounting holes. Hand start the lower handlebar
mounting bolts removed in step 3.
8. Hand start the upper handlebar mounting bolt in the handlebar clamp.
9. Torque the lower handlebar bolts to 300 inch pounds and the upper handlebar bolt to 140
inch pounds.
10. Slide the handlebar boot into place so that it covers the lower handlebar mounting bolts.
Lower Handlebar
Mounting Bolts
Cover Mounting
Screw
