5.23 Elliptical Fitness Crosstrainer
Page 35
6. If you are removing the front cover section, the right, left and top cover sections must be
removed first. Remove the four screws that fasten the frame cover to the frame (See
Diagram 7.1). Remove two phillips screws that fasten the bottom of the front cover section
to the frame. Lift the rear portion of the frame cover and carefully remove the front cover
section. If it is necessary to remove the frame cover, lift the rear of the frame cover, slide the
frame cover out of the ramp and remove the frame cover.

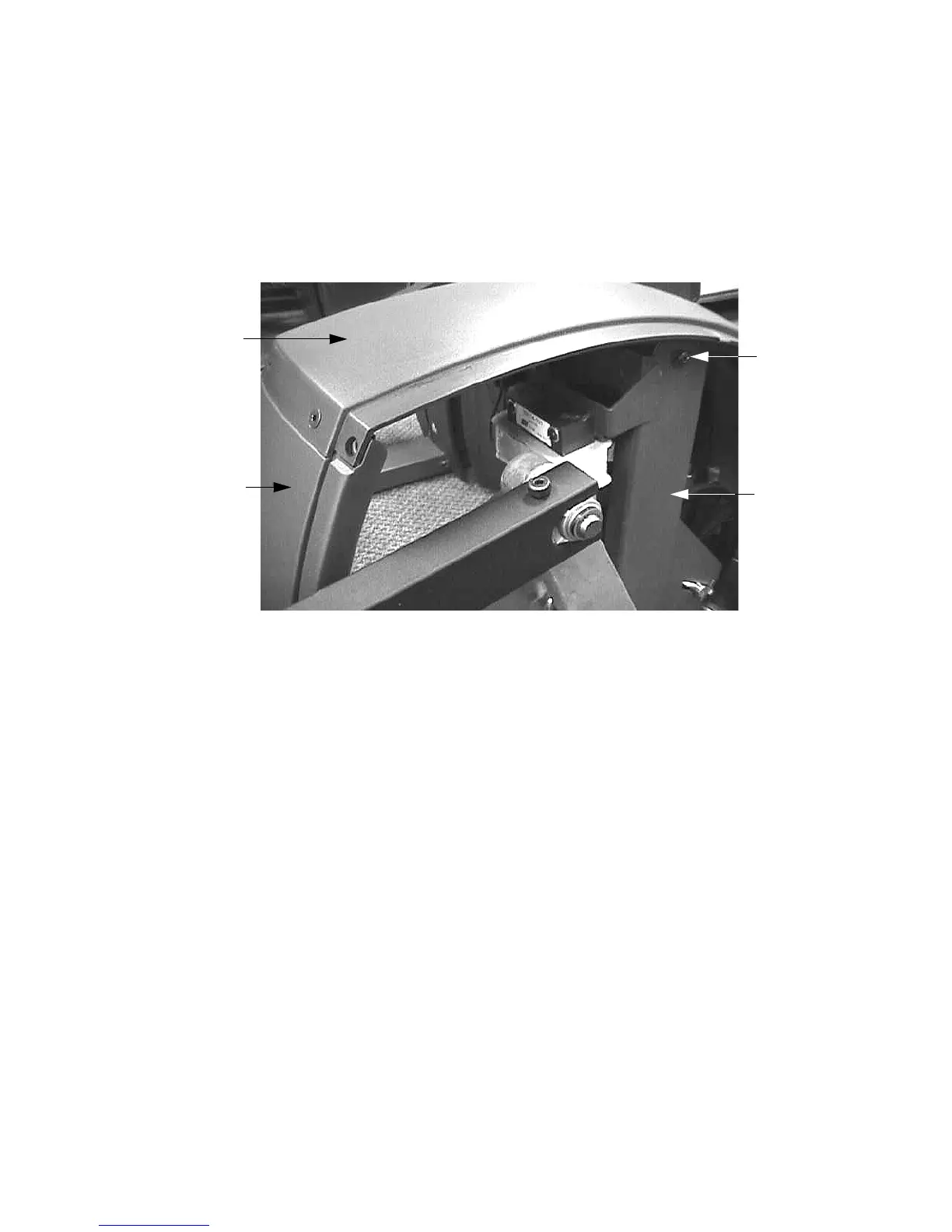

Diagram 7.2 - Top Cover Section (with right & left cover sections removed)
7. If all four cover sections have been removed, first replace the frame cover and front cover
section, then the top cover section and then the left and right cover sections as described
below.
8. Slide the tongue of the frame cover into the ramp. Lift the rear of the frame cover and fit the
front cover against the frame cover. Slide the front and frame covers into place as a unit.
Replace and tighten the four phillips screws that fasten the frame cover to the frame.
Replace and tighten the two phlliips screws that fasten the front cover section to the frame.
9. Set the top cover section in it’s mounting position, replace and tighten the two phillips
screws that fasten the top cover section to the frame upright. See Diagram 7.2. Replace and
tighten the three screws that fasten the top cover section to the rear cover support. Replace
and tighten the two screws that fasten the top cover section to the front cover section.
10. Set the left cover section in it’s mounting position, replace and tighten the four screws that
fasten the left cover section to the front cover section, top cover section and rear cover
support.
11. Set the right cover section in it’s mounting position, replace and tighten the four screws that
fasten the right cover section to the front cover section, top cover section and rear cover
support.
Frame
Upright
Mounting
Screw
Top Cover
Section
Front Cover
Section
To Next Page
