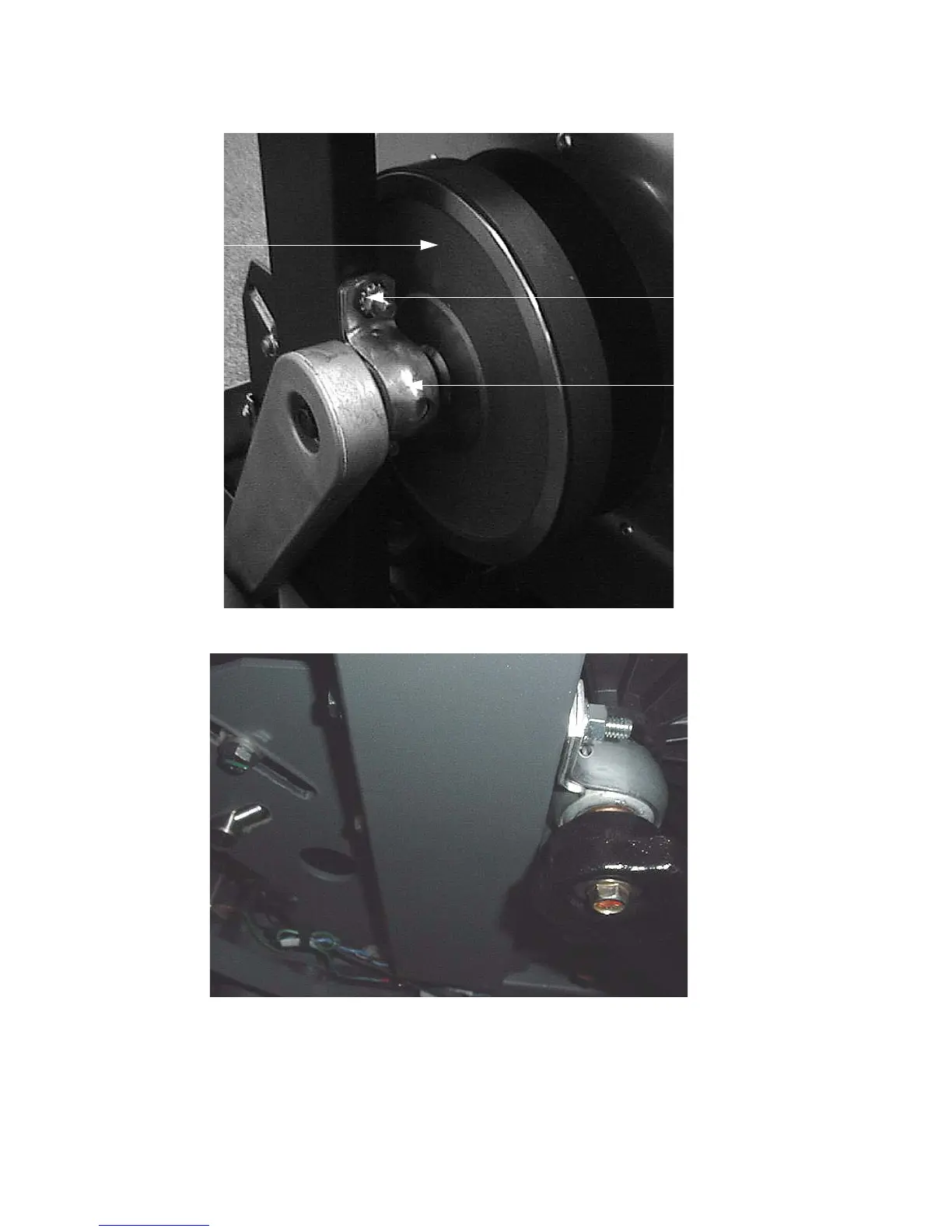

Diagram 7.9 - Pillow Block Bearings (serial codes DF and SK)
Diagram 7.10 - Pillow Block Bearings (serial code AA23)
10. Thread and hand tighten the pillow block mounting nuts onto the mounting studs or
mounting bolts. Torque the pillow block mounting nuts to 80 in/lbs.
11. Tighten the right and left hand tension bolts and the input belt tensioner adjustment bolt to
remove most of the slack from the belt.
Input Pulley
Mounting Nut
Pillow Block
Bearing
