5.23 Elliptical Fitness Crosstrainer
Page 53

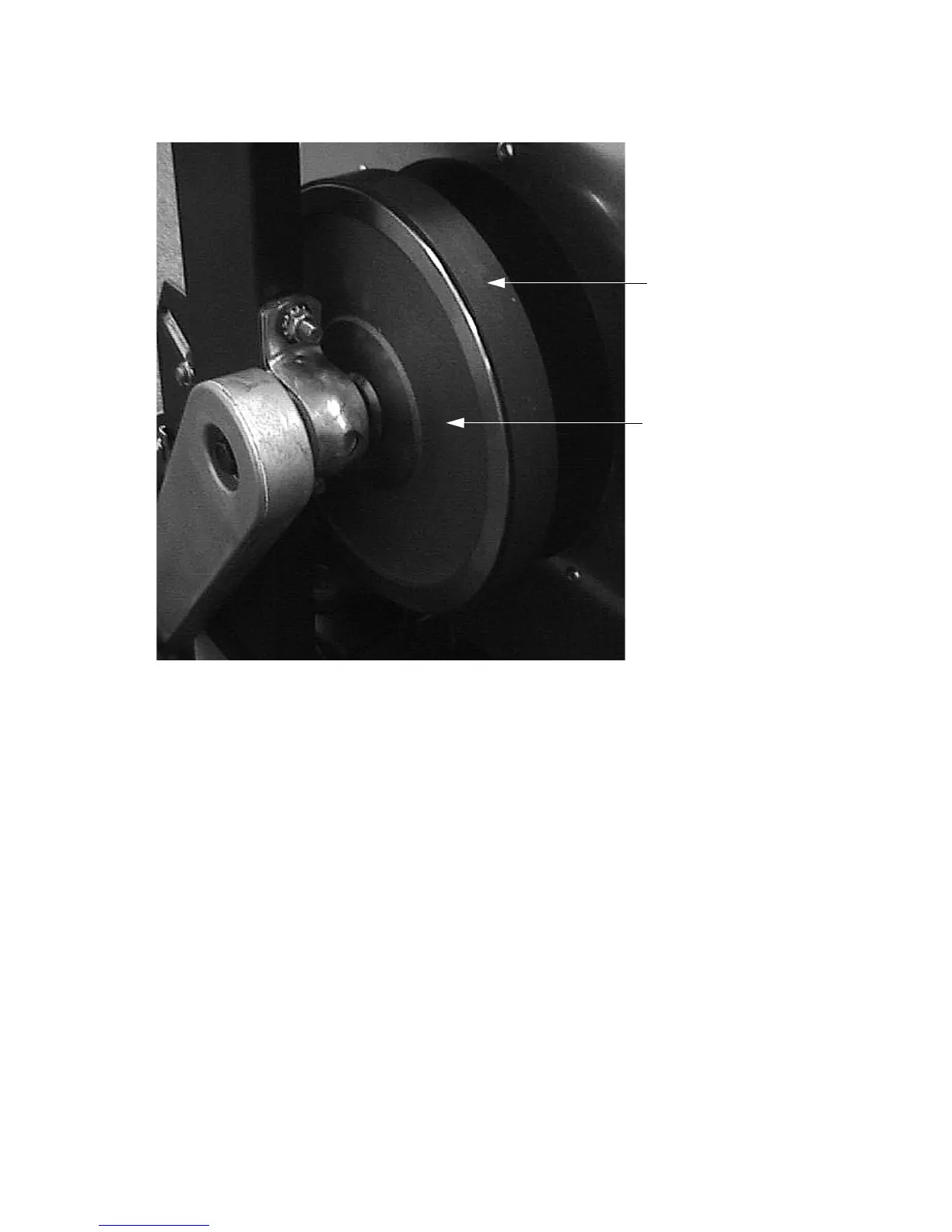

Diagram 7.12 - Input Pulley Belt
12.
Slide the step up and input belts o
nto the i
nput drive assembly as you set the input drive
assembly in its mounting position in th
e drive unit.
13.
Slide the pillow block beari
ngs onto the input pulley shaft.
14.
Complete the installation, alig
nment and tensioning per Procedure 7.7, steps 9 to 16.
Input Pulley Belt
Input Pulley
52
54
Table of Contents
Section One - Things You Should Know
2
General Information
3
Required Tools and Equipment
4
Procedure 2.1 - Accessing the Diagnostic Program
5
Procedure 2.2 - Accessing the Information Display
7
Procedure 2.3 - Accessing the Set User Parameters Display
9
Procedure 2.4 - Documenting Software Problems
10
Section Three - Preventive Maintenance
11
Every Week
11
Procedure 5.1 - Measuring the Resistance of an Eddy Current Magnet
13
Procedure 5.2 - Inspecting and Adjusting Belt Alignment and Tension
15
Procedure 5.3 - Calibrating the Lift Motor
19
Procedure 6.1 - Troubleshooting the Lower and Upper Interconnect Cable
21
Procedure 6.2 - Troubleshooting the Keypad and Upper PCA
23
Procedure 6.3 - Troubleshooting the Speed Sensor
25
Procedure 6.4 - Troubleshooting the Eddy Current System
27
Procedure 6.5 - Upper Display Does Not Illuminate
29
Procedure 6.6 - Troubleshooting the Lift System
32
Procedure 7.1 - Replacing or Removing a Rear Cover Section
34
Procedure 7.2 - Replacing a Display Enclosure or Upper PCA
36
Keyboard Connector
37
Procedure 7.3 - Replacing a Lower PCA
38
Procedure 7.4 - Replacing a Lower or Upper Interconnect Cable
41
Procedure 7.5 - Replacing a Power Entry Module
43
Procedure 7.6 - Replacing a Crankarm Assembly
45
Procedure 7.7 - Replacing a Pillow Block Bearing
47
Procedure 7.9 - Replacing an Input Pulley Belt
52
Procedure 7.10 - Replacing a Step-Up Pulley Belt
54
Procedure 7.11 - Replacing a Step-Up Pulley Assembly
56
Procedure 7.12 - Replacing a Speed Sensor Assembly
57
Procedure 7.13 - Replacing an Eddy Current Magnet Assembly
59
Procedure 7.14 - Replacing a Stairarm Pivot Block
61
Procedure 7.15 - Replacing a Wheel Assembly
63
Procedure 7.16 - Replacing a Stairarm Pedal
64
Procedure 7.17 - Replacing a Stairarm
65
Procedure 7.18 - Replacing a Ramp Assembly
66
Procedure 7.19 - Replacing a Handlebar
68
Procedure 7.20 - Replacing a Input Belt Tensioner
69
Procedure 7.23 - Replacing a Ramp Mounting Bracket
73
Procedure 7.26 - Replacing a Lift Motor
79
Procedure 7.27 - Replacing the PROM
81
Power Entry Module
82
Block Diagram
83
