Procedure 7.24 - Replacing a Rear Cover Support
Procedure
1. Set the on/off switch in the off position. Remove the A.C. line cord from the A.C. outlet and
from the power entry module.
2. Remove the top, left and right cover sections per Procedure 7.1.

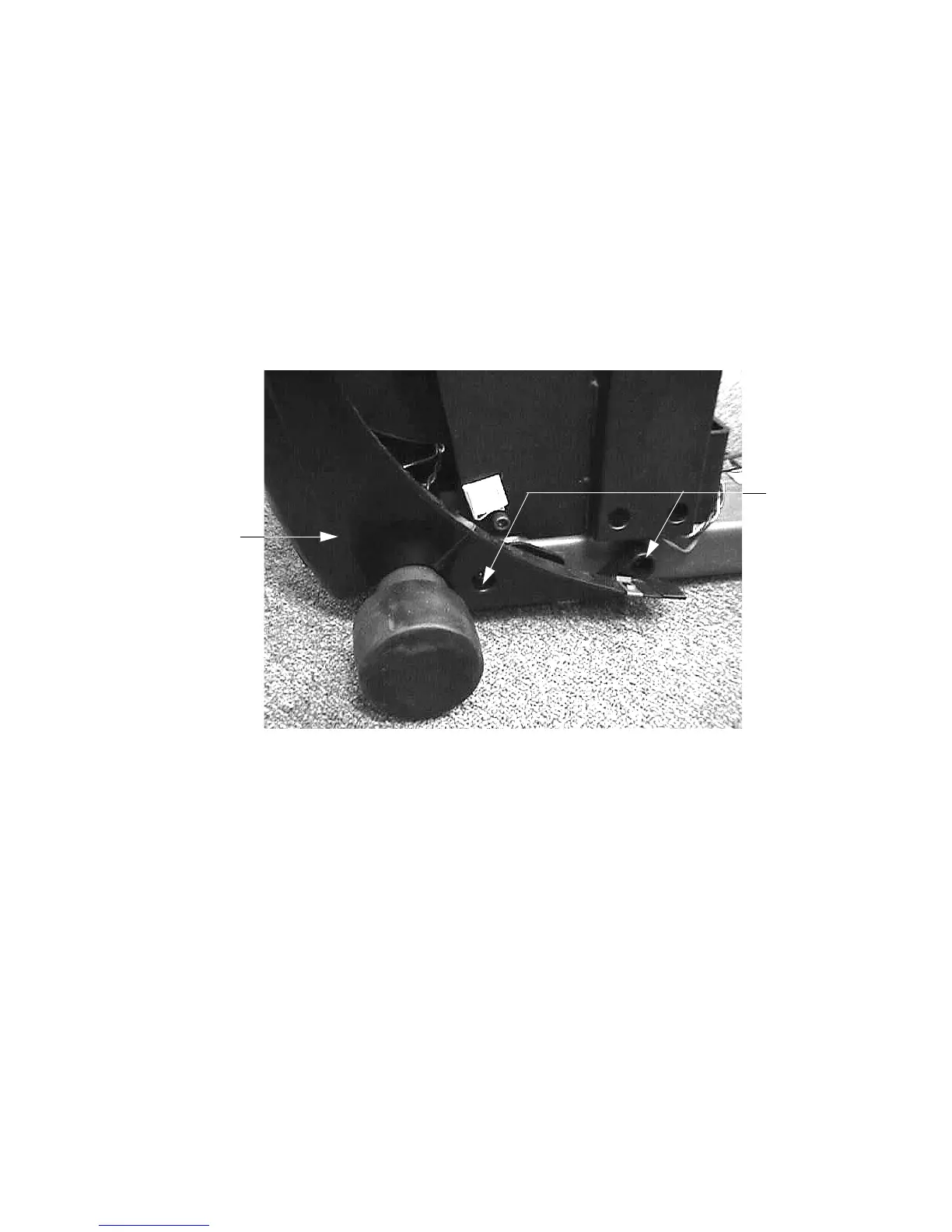

Diagram 7.27 - Rear Cover Support
3. Remove the blue wire from terminal D, the brown wire from terminal A and the green wire
from the ground terminal of the power entry module.
4. Remove the two screws that mount the power entry module to the rear cover support.
5. Remove the four screws that fasten the rear cover support to the frame base. Remove the
rear cover support.
6. Set the replacement rear cover support at it’s mounting position. Fasten it to the frame base
with the four screws removed in step 5.
7. Set the power entry module at it’s mounting position in the rear cover support and secure
the power entry module with the screws removed in step 4.
8. Replace the wires removed in step 3. Connect the blue wire to terminal D, the brown wire to
terminal A and the green wire to the ground terminal of the power entry module.
Mounting
Screw
Rear Cover
Support
To Next Page
