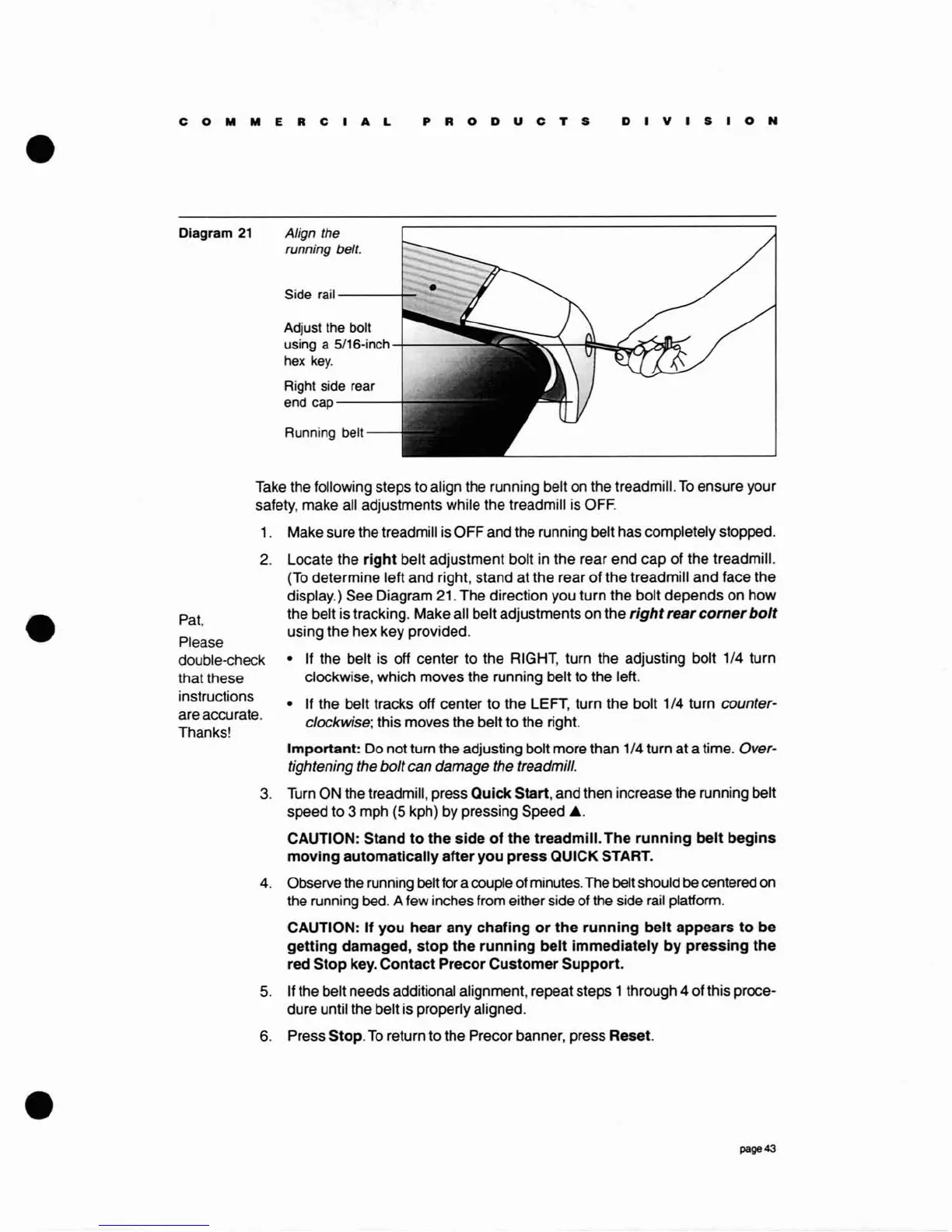

Diagram
21
Align the
funning belt.
Side
rail---~
Adjust the bolt
using a S/16-inch
-+---......;;;:
hex
key.
Right side rear
end cap
----+-,
Running belt
Take
the following steps to align the running belt
on
the treadmill.
To
ensure your
safety, make all adjustments while the treadmill
is
OFF.
1.
Make sure the treadmill
is
OFF and the running belt has completely stopped.
2.
Locate the
right
belt adjustment bolt
in
the rear end cap of the treadmill.
(To
determine left and right, stand at the rear of the treadmill and face the
display.) See Diagram 21. The direction you turn the bolt depends on how
the belt is tracking. Make all belt adjustments on the
right
rear
corner
bolt
using the hex key provided.
• If the belt
is
off center to the RIGHT, turn the adjusting bolt 1/4 turn
clockwise, which moves the running belt to the left.
• If the belt tracks off center to the LEFT, turn the bolt 1/4 turn
counter-
clockwise;
this moves the belt to the right.
Important:
Do not turn the adjusting bolt more than 1/4 turn at a time. Over-
tightening the boltcan damage the treadmill.
3.
Turn
ON the treadmill, press
Quick
Start, and then increase the running belt
speed to 3 mph (5 kph) by pressing Speed
•.
CAUTION: Stand
to
the side
of
the
treadmill.
The
running
belt
begins
moving
automatically
after
you
press
QUICK START.
4.
Observe the running
belt
for
a couple
of
minutes. The belt should
be
centered
on
the running
bed.
A few inches from either side of the side
rail
platform.
!
CAUTION: If you hear
any
chafing
or
the
running
belt
appears
to
be
getting
damaged,
stop
the
running
belt
immediately
by
pressing
the
red
Stop
key. Contact Precor
Customer
Support.
5.
If the belt needs additional alignment, repeat steps 1 through 4 of this proce-
dure until the belt
is
properly aligned.
6.
Press Stop.
To
return to the Precor banner, press Reset.
