COMMERCIAL
HARDWARE
KIT
PRO
D U C T S
DIVISION

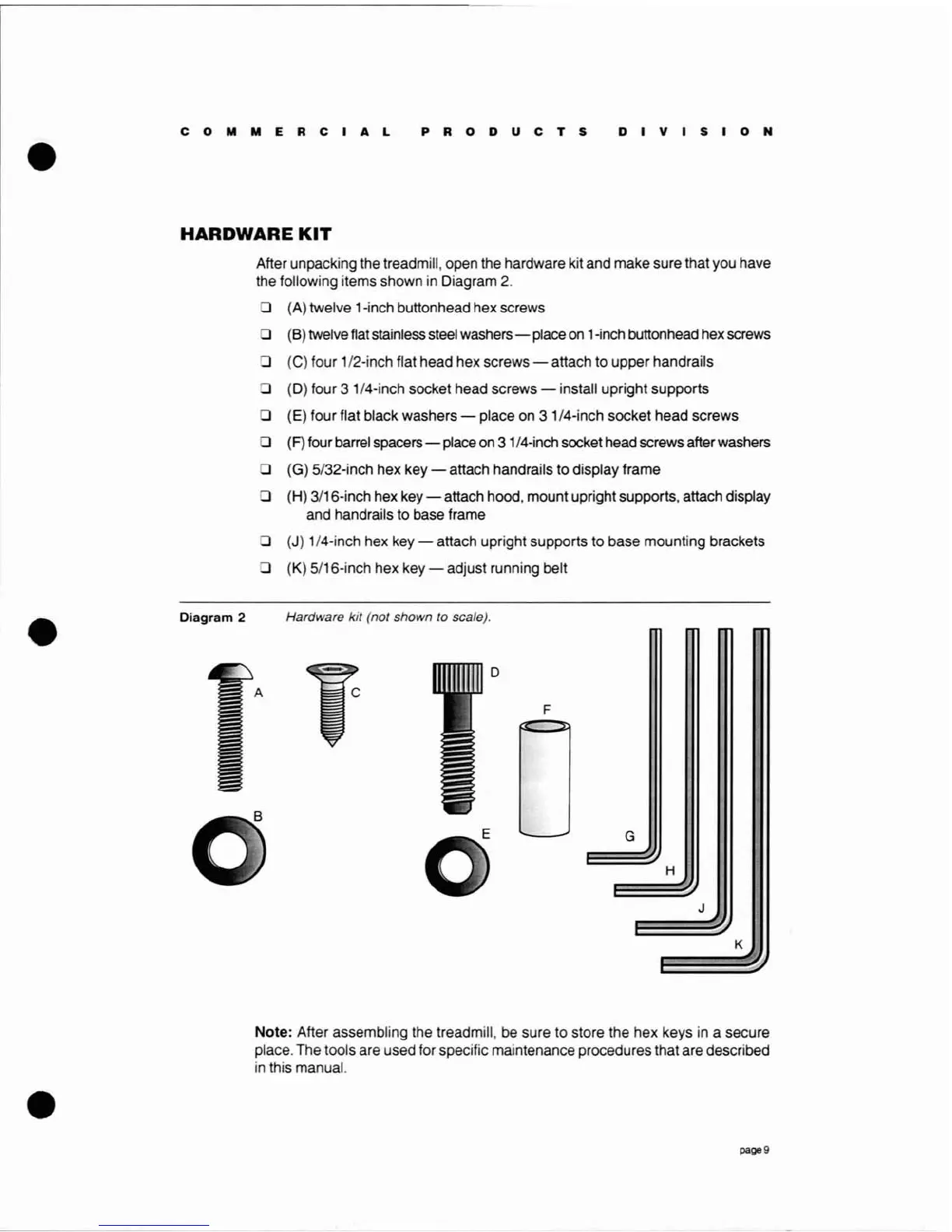

Diagram 2
After unpacking the treadmill, open the hardware kit and make sure that you have
the following items shown in Diagram 2.
o (A) twelve 1-inch buttonhead hex screws
o (B) twelve flat stainless steel washers - place
on
1-inch buttonhead hex screws
(C) four 1/2-inch flat head hex screws - attach to
upper
handrails
(D) four 3 1/4-inch socket head screws - install upright supports
(E) four flat black washers - place on 3 1/4-inch socket head screws
o (F) four barrel spacers - place on 3 1/4-inch socket head screws after washers
(G) 5/32-inch hex key - attach handrails to display frame
o (H) 3/16-inch hex key - attach hood, mount upright supports, attach display
and handrails to base frame
o (J) 1/4-inch hex key - attach upright supports to base mounting brackets
o (K) 5/16-inch hex key - adjust running belt
Hardware kit (not shown
to
scale).
A
o
F
G
H
J
K
Note:
After assembling the treadmill, be sure to store the
hex
keys in a secure
place. The tools are used for specific maintenance procedures that are described
in
this manual.
page
9
