page 13
5. Remove the height adjuster (J) from the Hardware kit and thread it into the
Front base tube. Diagram 4, #1 and #2. Ask an assistant to lift the front base
tube while you turn the height adjuster in a direction that lowers the front of the
assembly. Tighten the nut with a combination wrench (open or box-end) when
the height adjuster is fully threaded into the front base tube.
6. Cut the tie wrap holding the plastic grommet. Diagram 4, #3. Use a wire cutter
(or scissors) to remove the plastic grommet from the RJ45 cable.

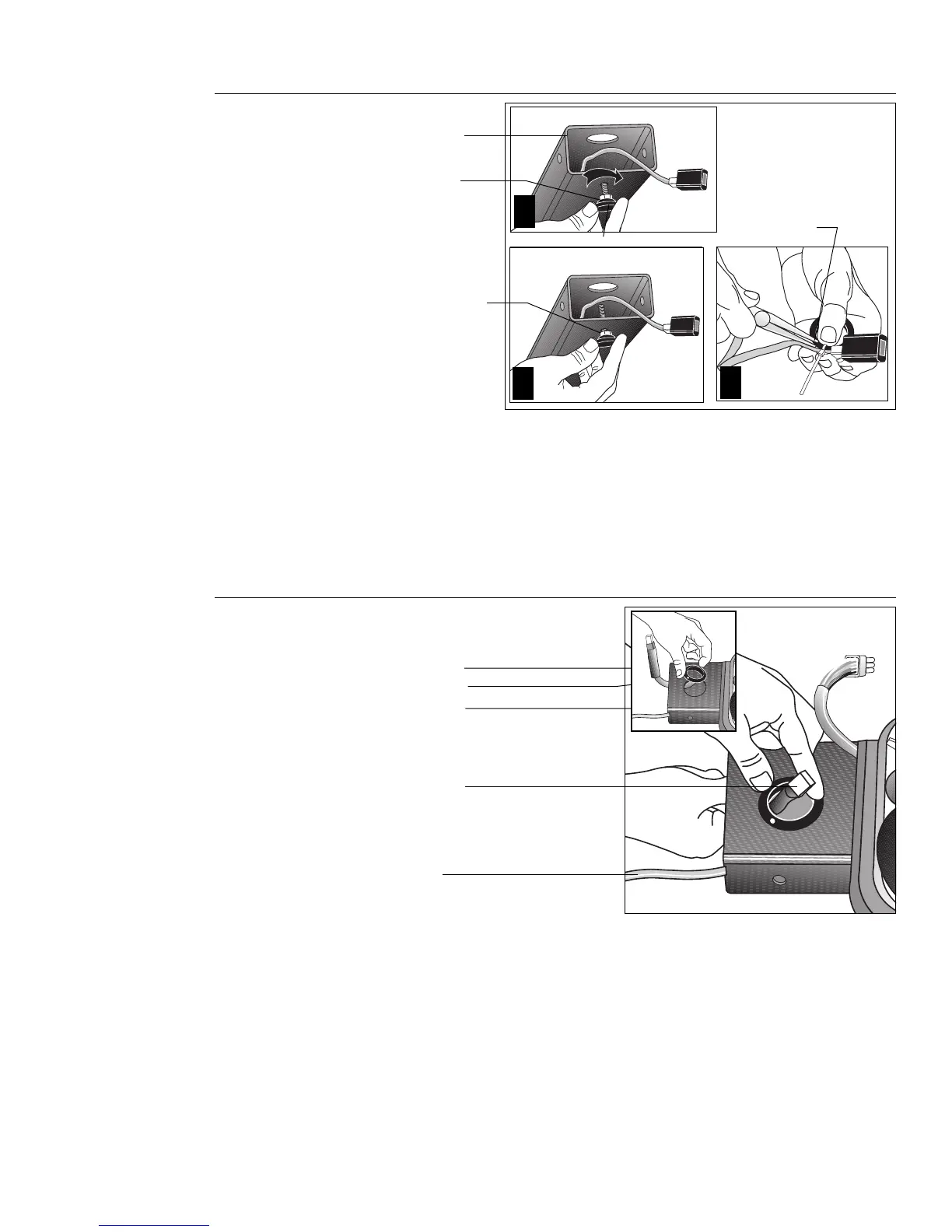

Diagram 4
Front base assembly.
Cut the tie wrap that
secures the grommet
to the cable.
Height adjuster
1
2
3
Turn the height
adjuster so that the
nut is secure against
the front base tube.
Wrench tighten the
nut.
Diagram 5
Insert grommet and route
lift motor cable.
Plastic grommet
Lift motor cable
7. Insert the plastic grommet. Diagram 5. Press down on the grommet so that it
snaps into place. Thread the lift motor cable through the grommet.
8. Prepare for the attachment of the upright support to the base assembly.
Remove the four phillips-head screws (D), two bolts (F), and two washers (G) from
the Hardware kit. Place one washer (G) on each of the two bolts (F). Keep the
fasteners together.
RJ45 Cable
CAUTION: Grease on the lift screw can
stain clothing.
Note: The lift motor
and screw are not
shown in these
illustrations.
Front base tube
Front base tube
Lift motor cable
To Next Page
