page 11
B

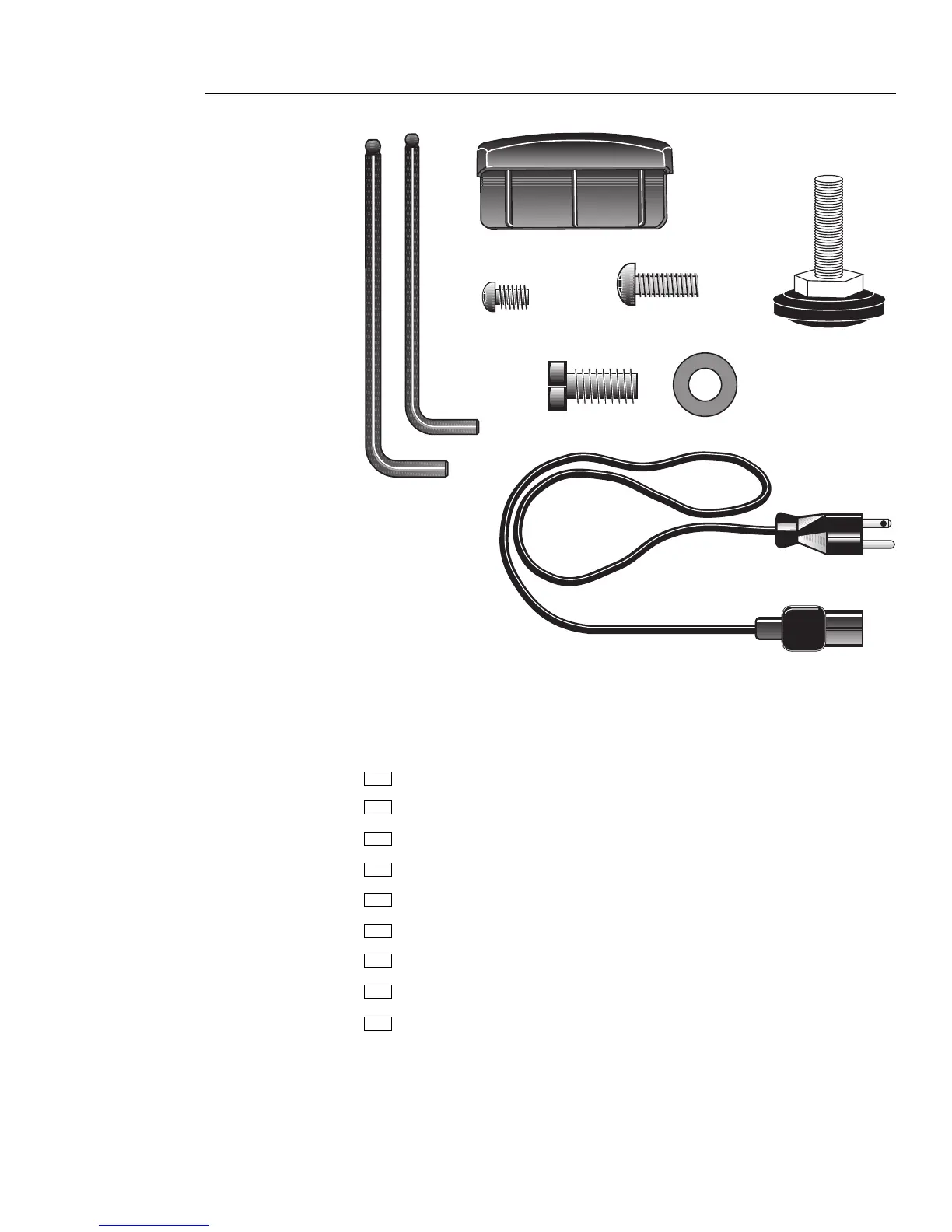

Diagram 3
Hardware kit.
A
Hardware Kit
After unpacking the unit, open the hardware kit (refer to Diagram 3) and make sure
that you have the following items:
(A) 3/16-inch hex key — secures handrails in handrail clamp
(B) 5/32-inch hex key — secures front covers
(C) End cap
(D) Four Phillips-head 1/2-inch screws — attach display console
(E) Four buttonhead 3/4-inch screws — secure front covers
(F) Twenty-two hex head 1-inch bolts — attach upright, handrails and stabilizers
(G) Twenty-two 3/8-inch washers — attach upright and stabilizers to base
(H) Power cord
(J) Height adjuster (shown with hex nut)
If any items are missing, contact Precor Customer Support at 1-800-347-4404.
Note: After assembling the EFX, be sure to store the hex keys in a secure place. The
tools are used for specific maintenance procedures that are described in this manual.
C
E
H
D
G
F
J
