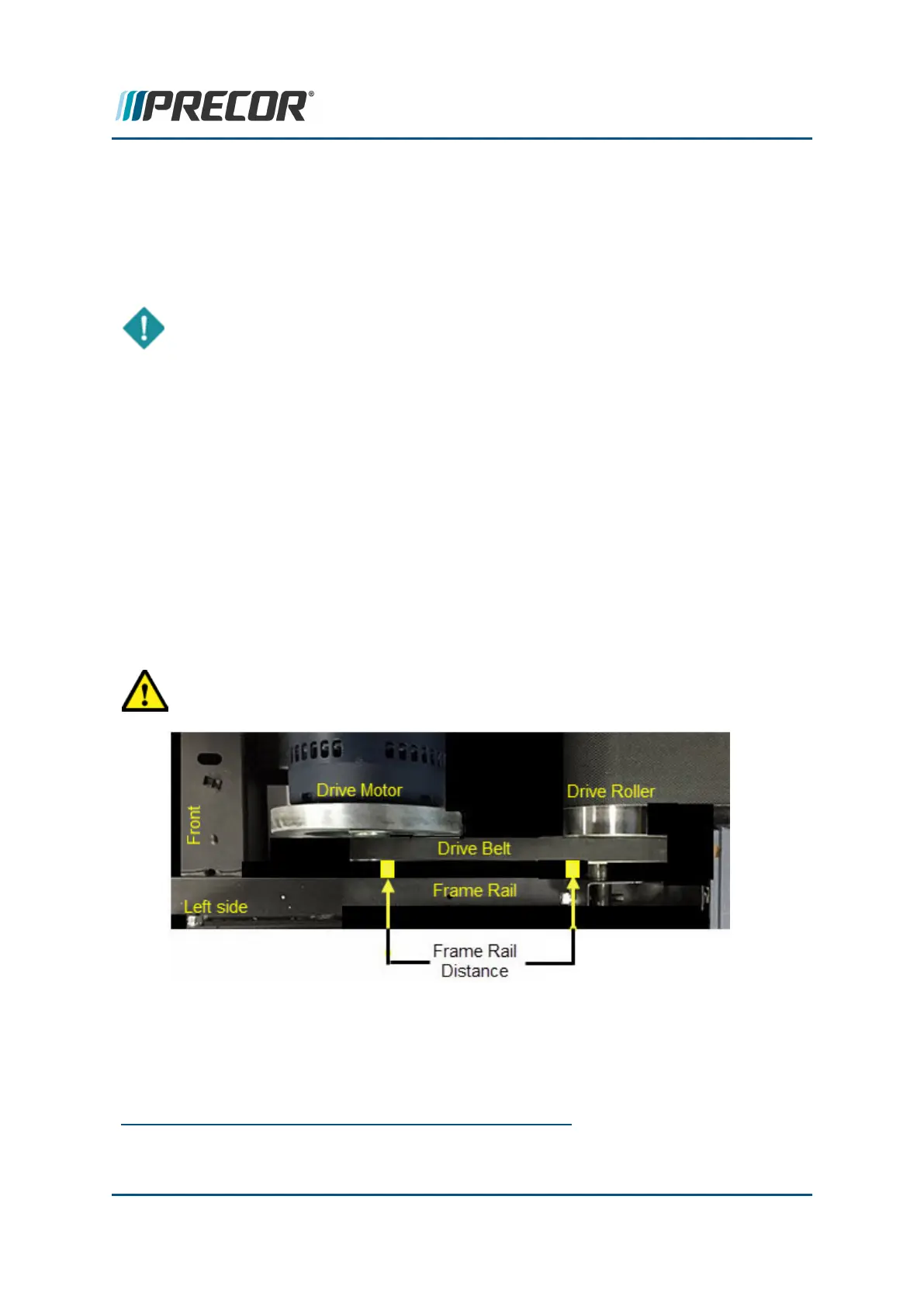

7. Set the replacement drive motor onto the frame. Align the motor mount plate to the ref-
erence position marks, insert and tighten the four mounting bolts to the torque 204 in-lbs
(17 ft-lbs, 23 N-m).
8. Re-install the drive belt. It is recommended that you walk the drive belt onto the larger
drive roller pulley.
9. Connect the drive motor connector from the OUTPUT connector on the power control
module.
10. Verify that the drive belt is properly seated and aligned, see "" on page23 procedure.
11. Verify the drive belt tension is within specification and adjust as necessary, see "Drive
Belt Tension & Alignment Adjustment" on page21
12. Re-install hood.
13. Plug in the power cord and Switch the input power ON.
14. Verify treadmill operation per ""Operation Verification Procedure" on page8" and return
to service.
.See Also
"Replacement Procedures" on page29
"Drive Belt Tension & Alignment Adjustment" on page21
(Undefined variable: TRM700-16Base.ServiceManualTitle)
41
5 Replacement Procedures
Drive Motor Replacement
