7. Align the replacement magnet on the running deck and then secure the magnet to the
running deck using the two push fasteners.
8. Slide the running deck back into position over the running deck pivot bracket. Align the
bottom plate and pivot bracket holes with the running deck bolt holes. Insert and tighten
deck mounting bolts.

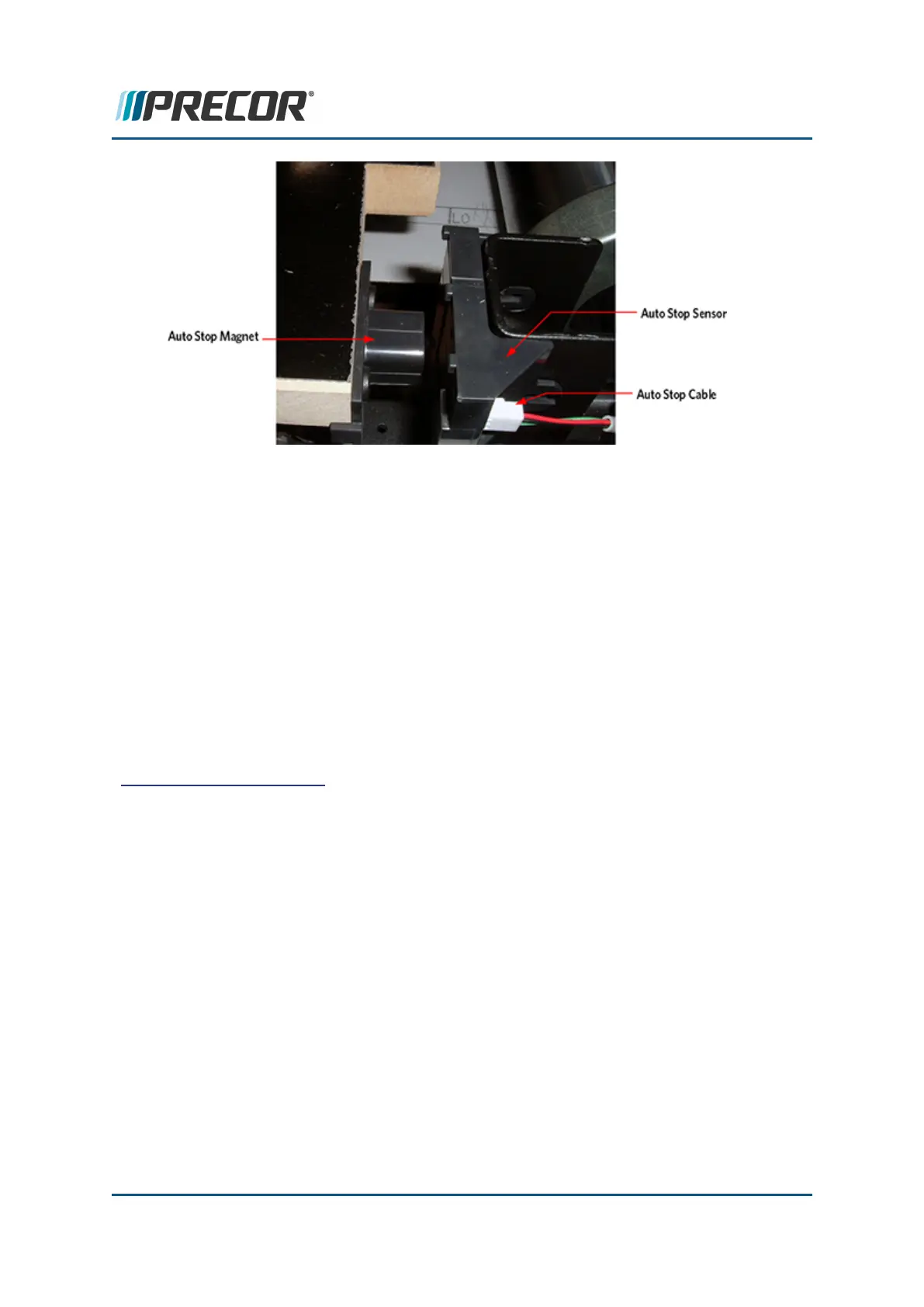

9. Check the alignment of the magnet and the auto stop assembly, see "Auto Stop Sensor
Replacement" on the facing page.
10. Replace the trim strips and front hood.
11. Connect the power cord and Switch the input power ON.
12. Verify the Auto Stop function by doing the Auto Stop diagnostics test, see .
13. Verify treadmill operation per "" and return to service.
.See Also
"Replacement Procedures" on page 48
"Running Belt and Deck Replacement" on page 81
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 50
6 Replacement Procedures
Auto Stop Magnet Replacement
