Running Belt and Deck Replacement
About
This procedure provides instruction to remove and replace the Running Belt.
CAUTION: Two running belt gauges, Precor part number 20007-101, are required.
It is important that this procedure be followed to maintain correct drive belt and run-
ning belt tension. Improper tensioning of the belt will lead to premature running belt
wear, premature driver roller bearing failure and premature Take Up Roller bearing
failure.
Procedure
Review entire procedure before starting.
1. Switch the input power OFF and unplug the power cord.

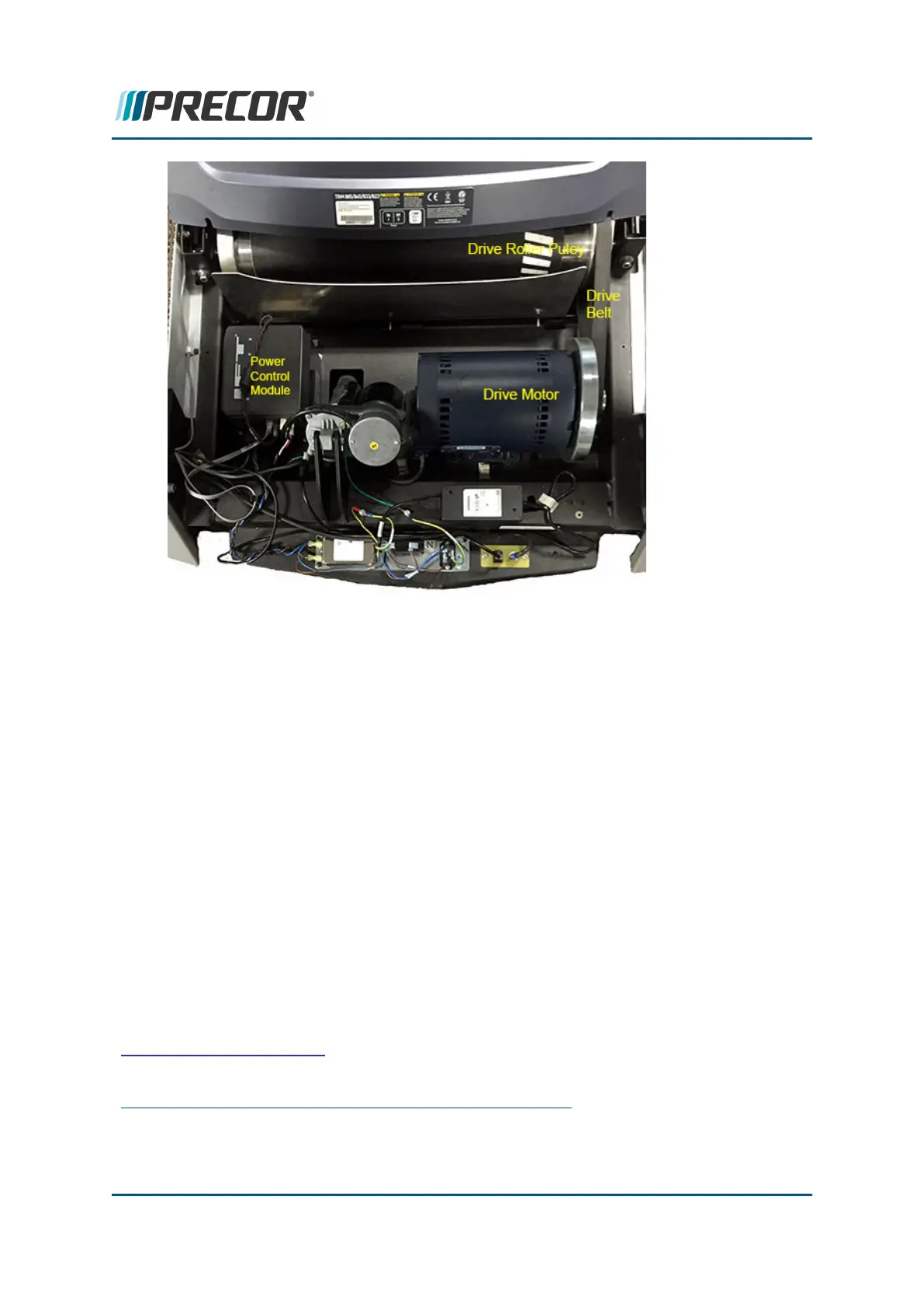

2. Remove the front hood.
3. Remove the end cap and belt guard covers (see "End Cap & Belt Guard Cover Replace-
ment" on page46).
4. Remove the left and right deck trim covers
5. Remove the Take Up Roller, see "Take Up Roller Replacement" on page66.
6. Remove the Drive Roller, see "Drive Roller Replacement" on page42.
7. Remove the four mounting bolts and the roller guard that hold the deck to the frame.
8. Lift the deck and running belt up and away from the treadmill.
9. If installed, remove the Auto Stop magnet from the deck, see "Auto Stop Magnet
Replacement" on page30.
