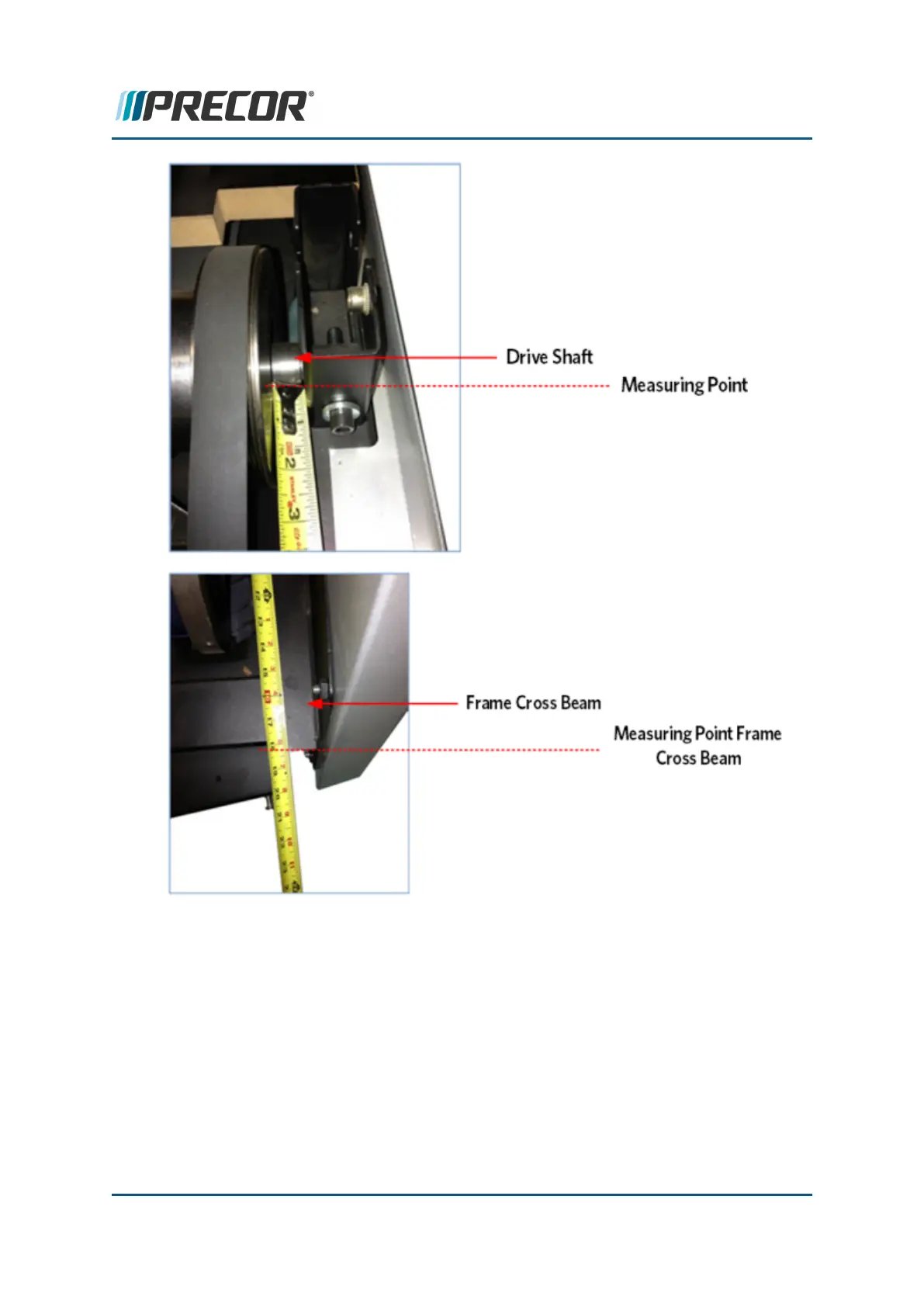

12. Adjust the right drive roller mounting bolt so that the right drive roller shaft to frame cross
beam distance equals the left side reference distance. This adjustment will make sure
that the drive roller is positioned parallel and square to the front of the frame.
13. Install the drive belt onto the drive motor pulley and walk the drive belt onto the larger
drive roller pulley.
14. Verify the drive belt alignment and set tension to specification, see "Drive Belt Tension &
Alignment Adjustment" on page 40 procedure.
15. Set the running belt tension to specification and verify tracking, see "Running Belt
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 57
6 Replacement Procedures
Drive Belt Replacement
