30 Installing and Operating the Personal Viewing System (PVS) for Display C
Attaching the PVS to the EFX
To attach the PVS to the EFX:
1. Place the screen face down on a clean work surface so
you have easy access to the back plate. Remove the screw
at the top of the PVS cover and set it aside.

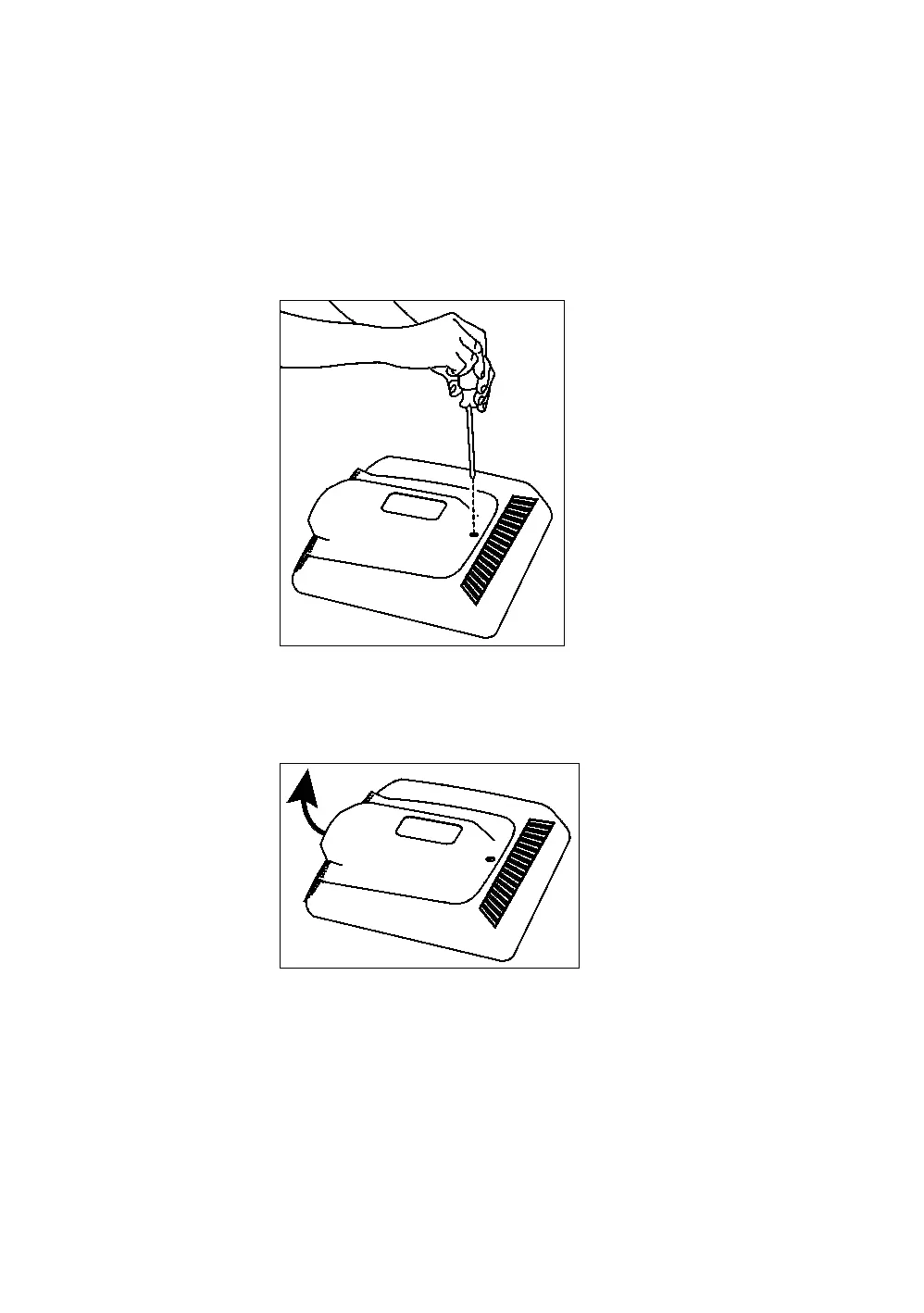

Figure 25: Back plate screw location
2. Place your fingers at the base of the panel and pull up to
remove it. Set the back plate aside.
Figure 26: Back plate removal
3. Move the cables out of the way as you attach the screen
to the bracket using four buttonhead screws. Torque to 19
inch-pounds.
