S3.25 Leg Press Option Assembly Instructions
page 10
1 2 3 4 5 6

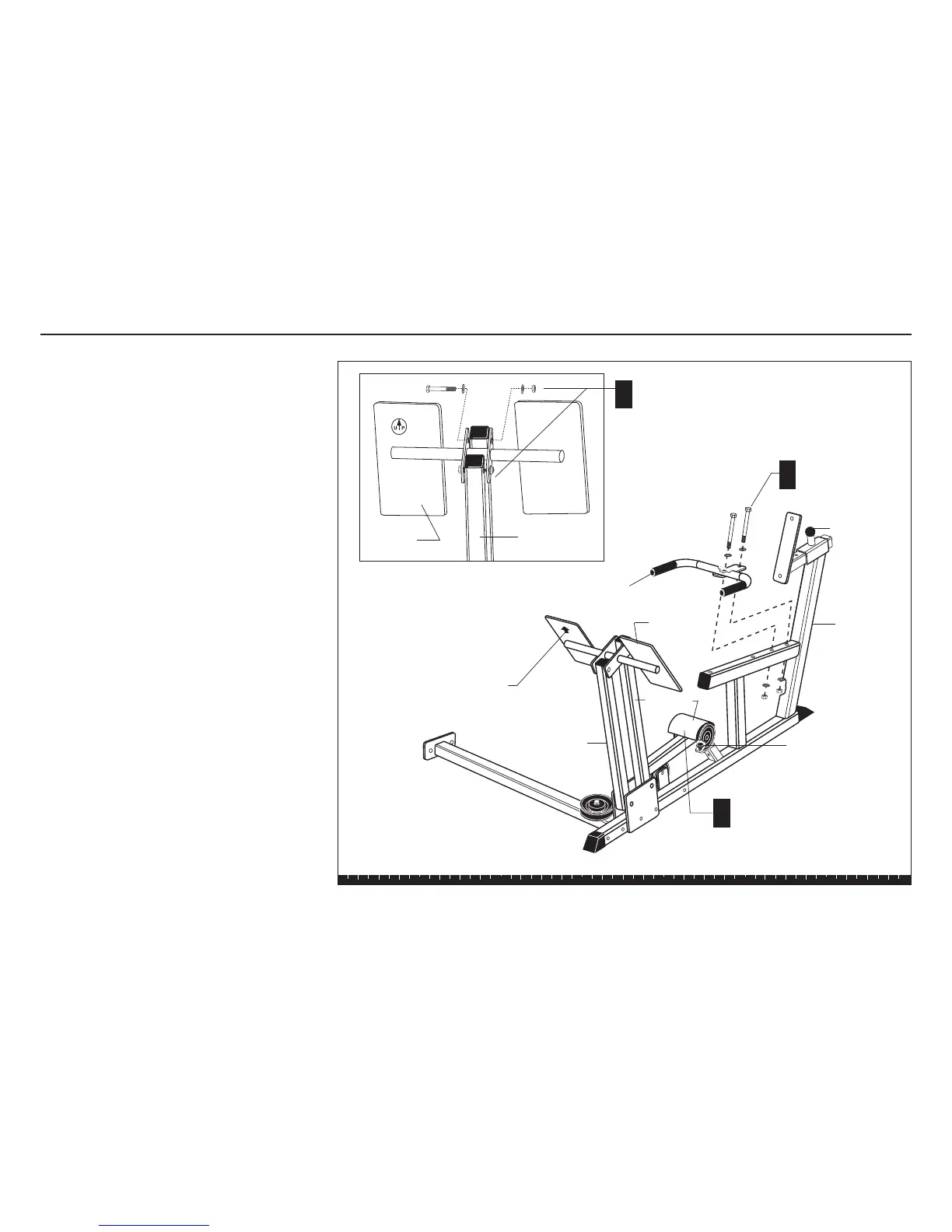

D. Assemble the Footrest by resting the Pivot Arm
on the Rubber Bumper. Make sure that the red
arrow on the back of the Footrest points toward
the ceiling.
E. Attach the Footrest to the Pivot Arm and Pivot
Tube using
two large ½-inch by 3-¼-inch bolts
four ½-inch-diameter washers
two large ½-inch locknuts
Wrench tighten enough to allow free movement of
the Pivot Arm.
F. Attach the Handle to the Seat Frame using
two 3-inch bolts
four washers
two locknuts
Wrench tighten.
Seat Frame
Footrest
Rubber Bumper
F
2 - 3" bolts
4 - washers
2 - locknuts
2 - large ½" x 3¼" bolts
4 - ½" diameter washers
2 - large ½" lock nuts
E
Pivot Tube
Pivot Arm
Handle
Pop Pin
Red Arrow Label
Footrest
Pivot Arm
Rest the Pivot Arm on the
Rubber Bumper
D
Step 3. Assemble the Frame, Continued

Precor S3.25 Specifications

Weight and Dimensions

length	60 inches (152 cm)
height	33 inches (84 cm)
width	30 inches (76 cm)
shipping weight	125 lb (57 kg)
