S3.25 Leg Press Option Assembly Instructions
page 12
1 2 3 4 5 6
Step 5. Route the Cable
5. Route the Cable
As you route the Cable through the pulleys on the Leg
Press Option, wrench tighten the fasteners on each
pulley as you go. Make sure that the Cable slides freely
along the pulley (and beneath the cable retainer). Make
sure that you are using the correct Cable before you
tighten the fasteners.
A. Attach the barrel end of Cable 40538-101 to the
Seat Frame using
one 4-inch bolt
one washer
one locknut
Wrench tighten so that the barrel end of the Cable
rotates freely.
B. Loosen all the fasteners that attach the pulleys to
the Seat Frame.
C. Push the Pivot Arm forward so that the pulleys are
easily accessible.

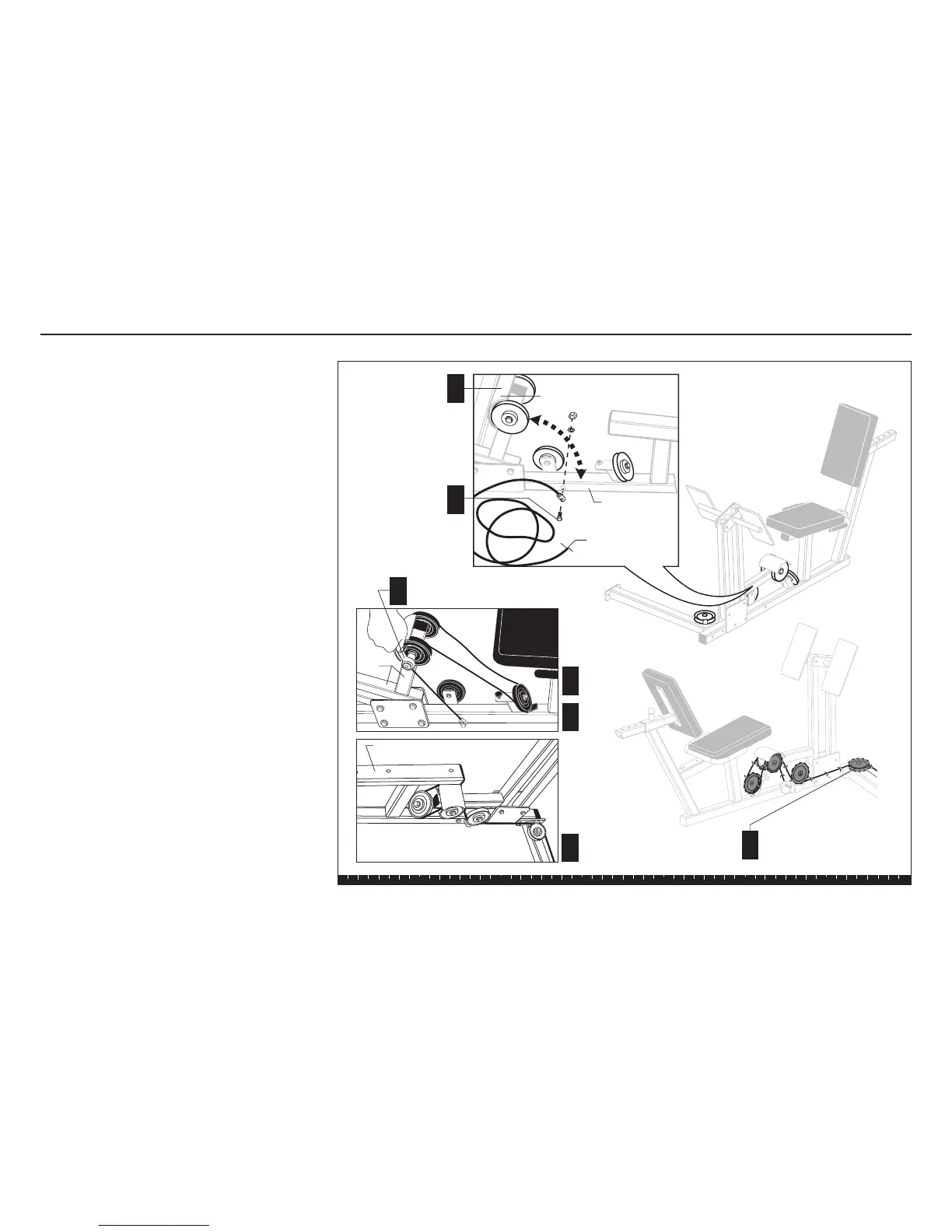

D. Route the Cable around the pulley inside the Pivot
Arm Cover that is on the same side as the barrel
end of the Cable (see illustration). The Cable
should slide along the pulley beneath the cable
retainer. Wrench tighten this pulley’s fasteners.
E. You may need to slide the bolt out of the Pivot Arm
Cover to wrap the Cable around the pulley.
F. Continue to route the Cable around the pulleys as
shown in the illustration. Make sure that the Cable
slides freely along the pulleys (and beneath the
cable retainers) before you wrench tighten their
fasteners.
G. Wrap the Cable around the 4½-inch pulley (and
beneath its cable retainer) that is attached to the
Cross Brace. Wrench tighten.
A
1 - 4" bolt
1 - washer
1 - locknut
Seat Frame
Push the Pivot
Arm forward
Loosen the pulley
fasteners
B
C
D
E
G
F
Wrap the Cable around the
4½" pulley attached to the
Cross Brace
Pivot
Arm
Note: The Seat Pad is not shown.
Cable 40538-101
Pivot Arm

Precor S3.25 Specifications

Weight and Dimensions

length	60 inches (152 cm)
height	33 inches (84 cm)
width	30 inches (76 cm)
shipping weight	125 lb (57 kg)
