S3.25 Leg Press Option Assembly Instructions
page 11
1 2 3 4 5 6
4. Assemble the Seat Pads
A. Attach one of the Seat Pads to the Seat Bracket
Support using
two 1¼-inch bolts
two washers
Wrench tighten.
B. Lift the Pop Pin and slide the Seat Pad out of the
way to assemble the other Seat Pad.
C. Attach the remaining Seat Pad to the Seat Frame
using
two 3-inch bolts
two washers
Wrench tighten.
Note: Make sure that the seams on the Seat Pads
face down toward the frame.
Note: If you are assembling the Leg Press Option and
the S3.25 simultaneously, return to Step 11 in the
S3.25 Assembly and Maintenance Guide now.
Seat Pad
used as a
back rest
A
2 - 1¼" bolts
2 - washers
Seat Bracket Support
Handle
C
2 - 3" bolts
2 - washers
B
Seat Frame
Seat Pad
Lift the Pop
Pin to slide
the back rest

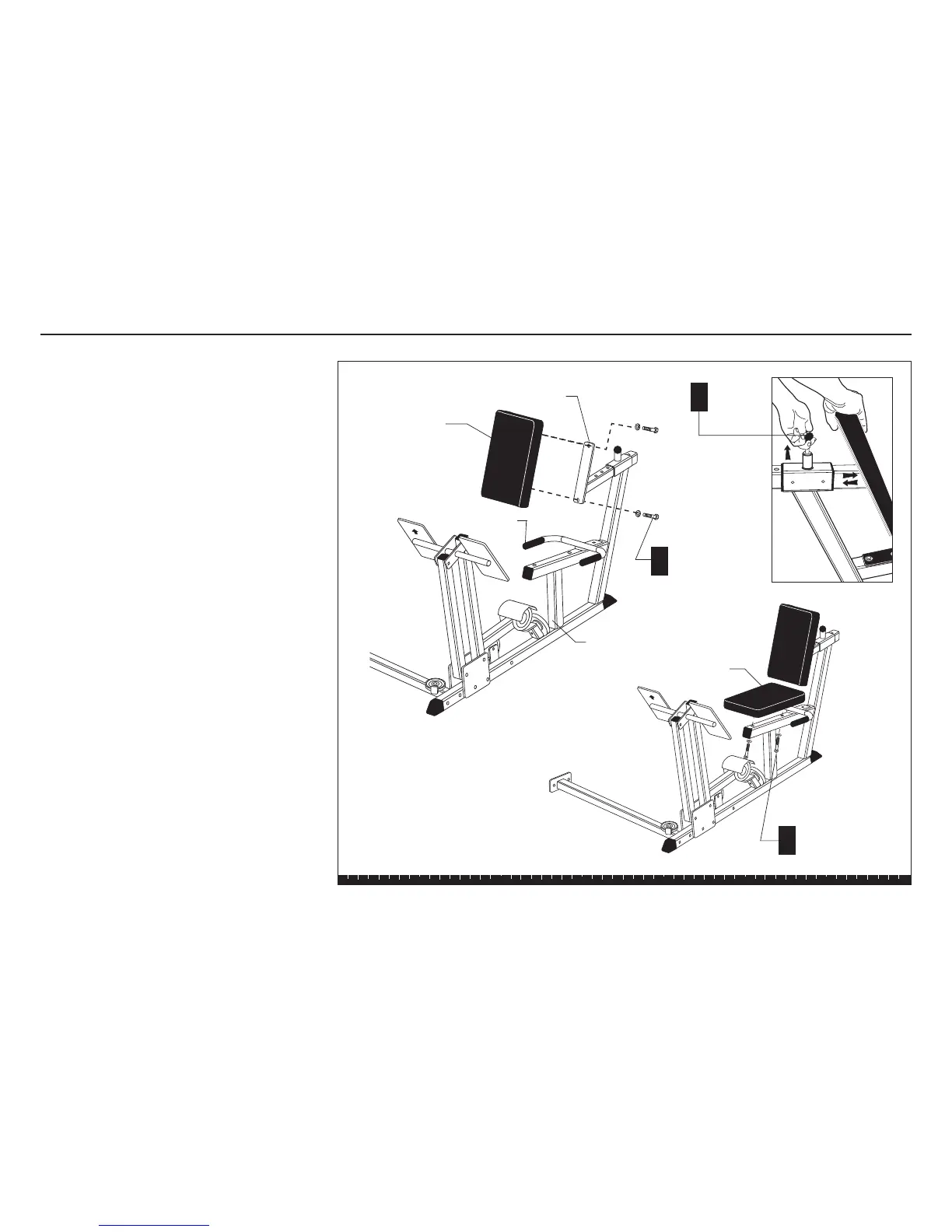

Step 4. Assemble the Seat Pads
