S3.25 Leg Press Option Assembly Instructions
page 13
1 2 3 4 5 6

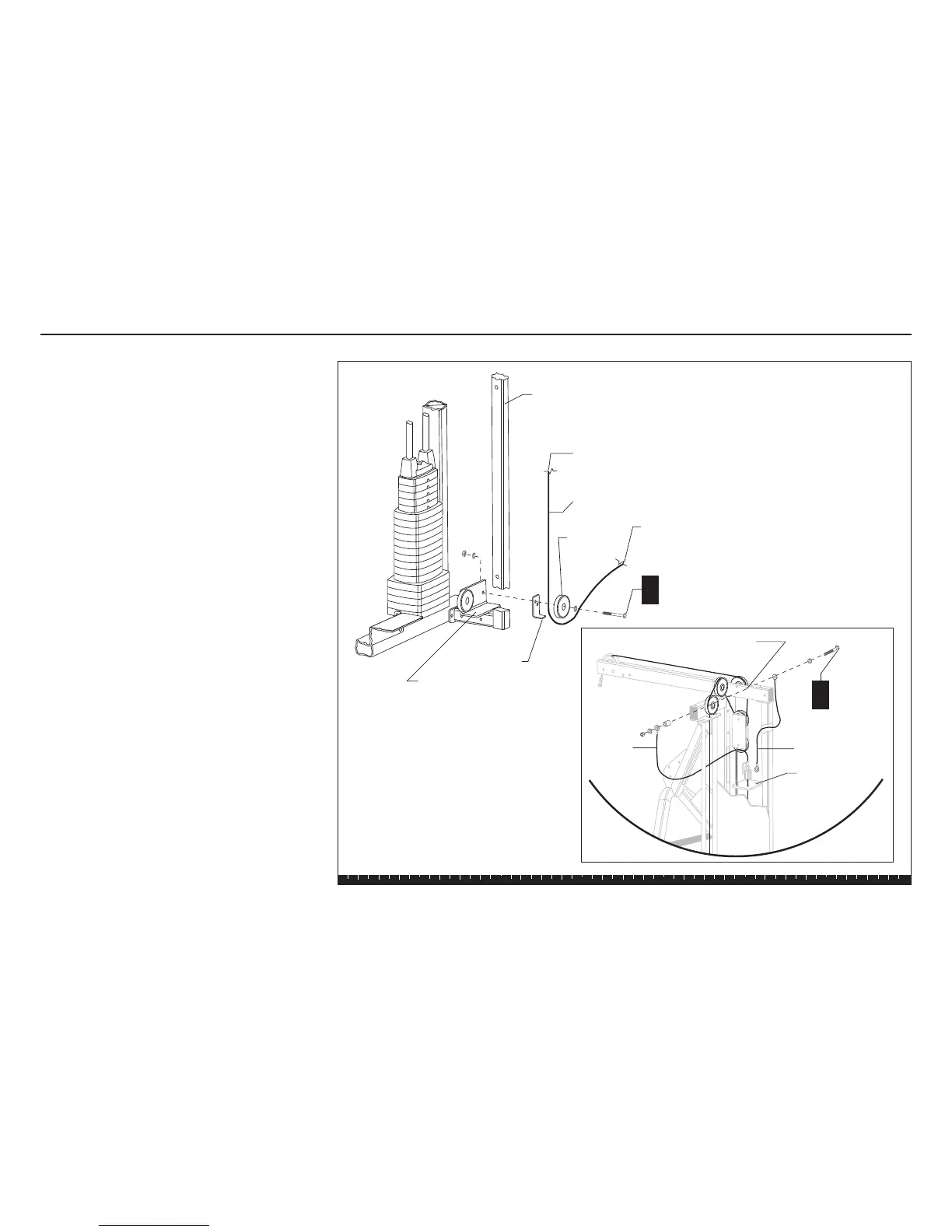

Step 6. Assemble the Cable and Pulleys
3½" Pulley
A
1 - 2" bolt
2 - washers
1 - locknut
Attach this
end to the
Cable Tree
Cable Retainer
Lower Pulley Bracket
This end is
attached to the
Leg Press
Rear Upright
B
Discard
1 - 3¼" bolt
1 - 1" barrel
spacer
2 - washers
1 - locknut
Note that no pulley is
attached to this bolt hole
Surgical
Tube
Cable Tree
Cable 40538-101
Surgical
Tube
6. Assemble the Cable and
Pulleys
You can identify Cables by the white numbers placed at
the end of the Cable.
A. Place Leg Press Option Cable 40538-101 between a
cable retainer and one 3½-inch pulley. Attach the
pulley to the Lower Pulley Bracket located at the
base of the Rear Upright using
one 2-inch bolt
two washers
one locknut
Wrench tighten.
B. From the Top Beam, remove the surgical tube and
its fasteners.
Note: Discard the fasteners
one 3¼-inch bolt
one one-inch barrel spacer
two washers
one locknut

Precor S3.25 Specifications

Weight and Dimensions

length	60 inches (152 cm)
height	33 inches (84 cm)
width	30 inches (76 cm)
shipping weight	125 lb (57 kg)
