S3.25 Leg Press Option Assembly Instructions
page 14
1 2 3 4 5 6
C. Reattach the end of the original Surgical Tube from
the Cable Tree to its prior location and place the new
Surgical Tube that came with the Leg Press Option
to the outside of the Top Beam using
one 4-inch bolt
two washers
two ½-inch barrel spacers
one locknut
Wrench tighten.
D. Place the ball-end of Leg Press Option Cable 40538-
101 up through the Cable Tree and place
it securely in the U-clip.
E. Remove the buttonhead bolt and nylock nut from
the U-clip.
F. Attach the end of the original surgical tube to the
Cable Tree using the 1¼-inch buttonhead bolt and
thin nylock nut removed in Step 6E. Wrench tighten.
Note: If you are assembling the Leg Press Option and
the S3.25 simultaneously, go to Step 21 in the S3.25
Assembly and Maintenance Guide now.

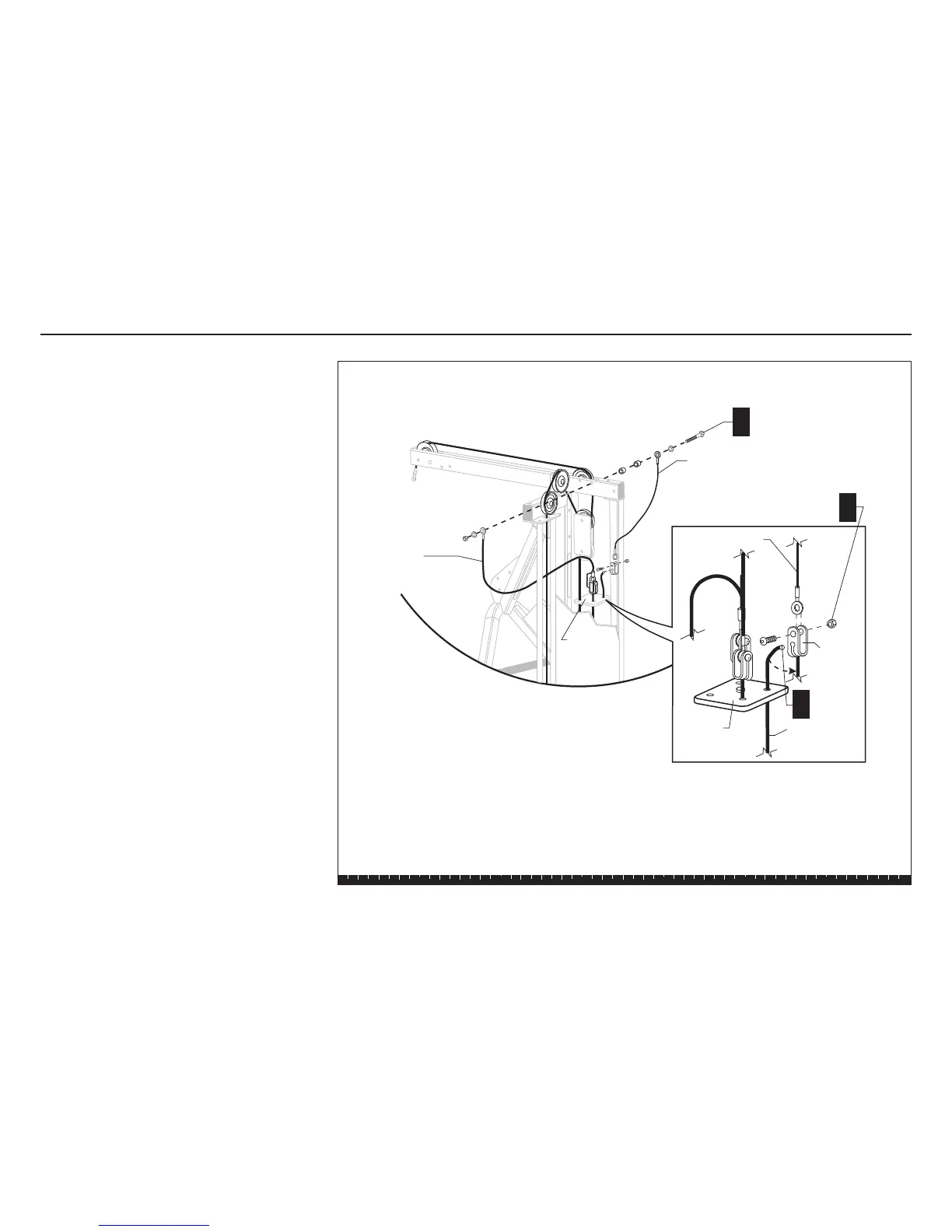

Step 6. Assemble the Cable and Pulleys, Continued
1 - 1¼" button head bolt
1 - thin nylock nut
1 - 4" bolt
2 - washers
2 - ½" barrel spacers
1 - locknut
C
Original
Surgical Tube
Cable Tree
New Surgical
Tube
Cable Tree
Cable 40538-101
(from Leg Press)
U-clip
Attach ball-
end of Cable
to U-clip
New Surgical
Tube
D
E
