Precor S3.25 User Manual

S3.25 Leg Press Option Assembly Instructions
page 9
1 2 3 4 5 6
3. Assemble the Frame
A. With someone helping you, lift the Seat Frame
upright. Have your assistant hold it in place while you
attach the Cross Brace in the next step.
B. Attach the Cross Brace to the holes found at the
front of the Seat Frame using
two 3-inch bolts
four washers
two locknuts
Wrench tighten.
Important: A label on the Seat Frame indicates the
mounting holes you must use to attach the Cross
Brace to the S3.25 Leg Press Option.
C. Slide the Backpad Support into the Seat Frame,
locking it in place with the Pop Pin.
Label indicates mounting
location for the S3.25
B
2 - 3" bolts
4 - washers
2 - locknuts
Cross Brace
Seat Frame
Have an assistant hold
the Seat Frame stable
and upright while you
attach the Cross Brace
A
C
Backpad
Support
Backpad
Support
Pop Pin

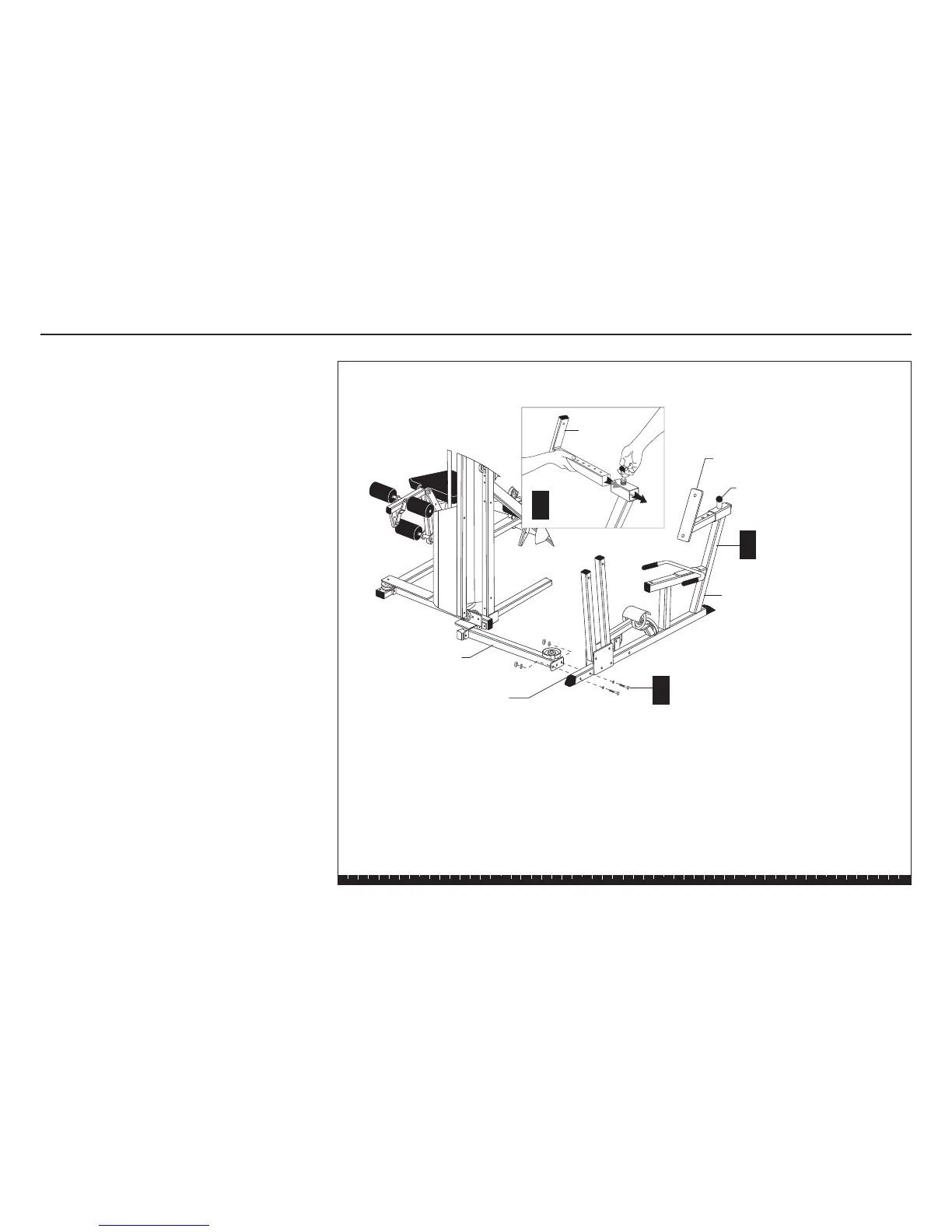

Step 3. Assemble the Frame

Precor S3.25 Specifications

Weight and Dimensions

length	60 inches (152 cm)
height	33 inches (84 cm)
width	30 inches (76 cm)
shipping weight	125 lb (57 kg)
