© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 77

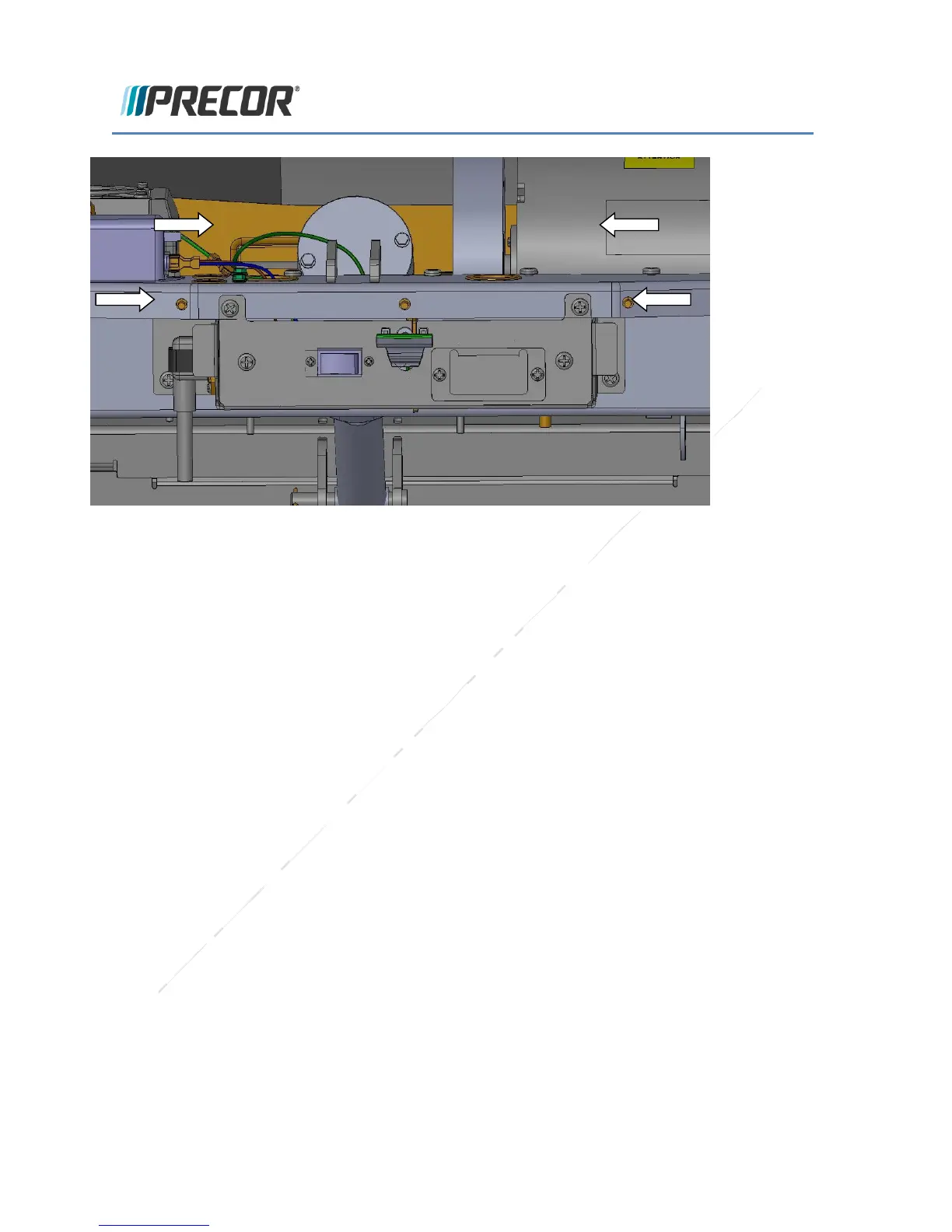

4. Lift the AC input panel from the frame and rotate it to expose the mounting hardware of all
attached items.
5. Remove the blue wire and ground wire from the power receptacle.
6. Remove the brown wire from the input side of the line filter.
7. To remove the ASL board, unsnap the plastic holder from the panel by pressing the tabs on the
bottom of the panel, then lifting the holder. Unsnap the PCB from the holder to disconnect the
RJ11 connector. See Figure 6, Next page.
8. Remove and replace the power cord, power receptacle, and circuit breaker, reusing the
hardware.
9. Replace the ASL PCB holder into the panel, ensuring it snaps firmly into place.
10. Set the input panel in its mounting position and fasten it with the hardware removed in steps 3
to7.
11. Replace the hood.
12. Check treadmill operation per, Checking Treadmill Operation.
Figure 23: ASL PCB Holder detail
