© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 88
Adjustment Procedures
This section provides you with the step-by-step procedures required to make adjustments. Perform
the appropriate adjustment procedures when a trouble symptom points to a particular problem and
after removing and replacing major components. Refer to Replacement Procedures for
instructions on how to disassemble and reassemble the running belt, deck, drive motor, rollers and
all associated parts.
Adjustment procedures::
Adjusting Drive Belt Tension
Tensioning the Running BeltError! Bookmark not defined.
Running Belt Tracking Adjustment
Calibrating the Lift Motor
Drive Belt Tension Adjustment
1. Set the treadmill circuit breaker in the off position and unplug the line cord from the wall outlet.
2. Remove the hood.
This procedure assumes that the drive belt has been installed and seated onto
the motor drive belt pulley and roller drive pulley.
3. Place the drive belt tension gauge on the drive belt as shown in Figure 32.

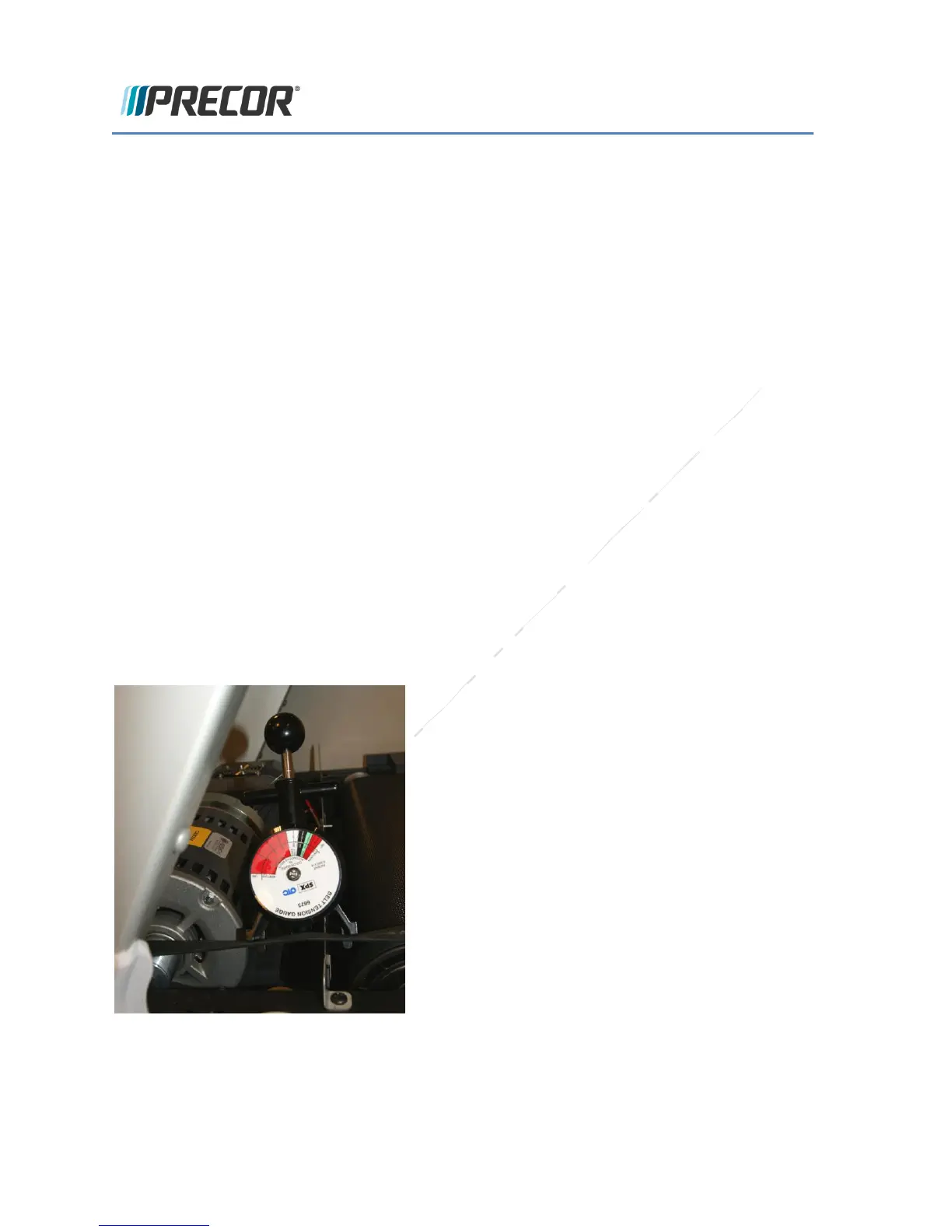

Figure 32: Drive Belt Tension Gauge
